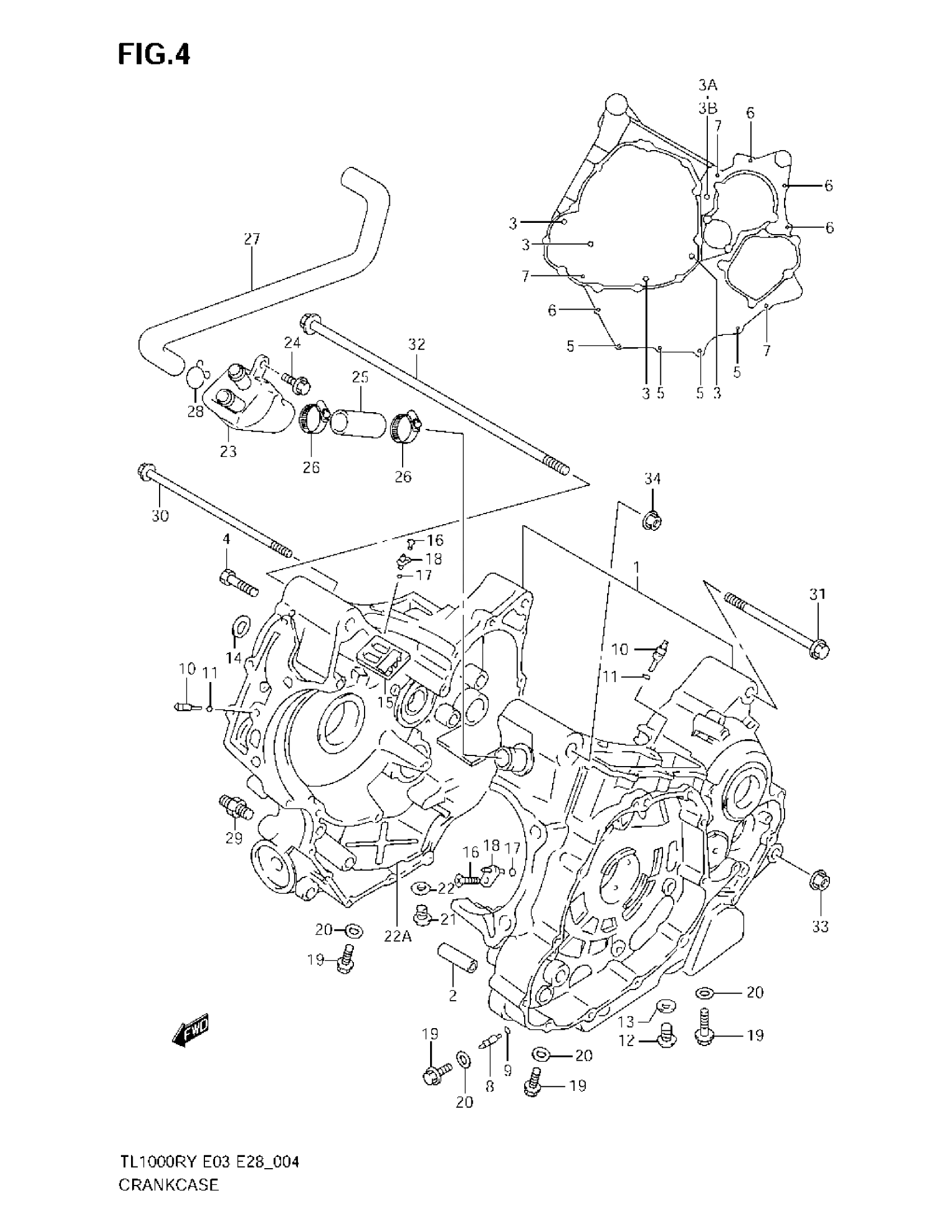

Suzuki TL1000R (2003) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | Includes Item(s) 2 - 11

11305-02873

Unavailable

2

PIN

11319-33E00

Unavailable

3

BOLT This part replaces 07120-08903.

07120-0890B

Unavailable

3A

BOLT (8X125)

09106-08136

Unavailable

3B

WASHER This part replaces 08322-01083.

08322-0108A

$1.92

4

BOLT (8X110)

09106-08142

Unavailable

5

BOLT This part replaces 01550-06353.

01550-0635A

$2.32

6

BOLT This part replaces 01550-06703.

01550-0670B

$4.25

7

BOLT This part replaces 01550-06853.

01550-0685B

$4.25

8

JET, OIL GALLERY MISSION

09493-28010

$16.57

9

O RING

09280-04004

$1.91

10

JET,T/M OIL GALLERY

09493-20014

$16.87

11

O RING (D:1.2,ID:4)

09280-04004

$1.91

12

PLUG (MAGNETO) | MODEL W/X/Y/K1 This part replaces 09247-14001.

09247-14002

$5.24

12

PLUG (MAGNETO) | MODEL K2/K3

09247-14002

$5.24

13

GASKET

09168-14002

$2.26

14

O RING

09280-12009

$3.18

15

VALVE ASSY, BREATHER

13150-02F00

Unavailable

16

BOLT

09125-06086

$2.77

17

O RING (D:1.2,ID:4)

09280-04004

$1.91

18

JET, PISTON COOLING

11390-02F00

Unavailable

19

BOLT (8X12) This part replaces 01550-08123.

01550-0812A

$2.32

20

GASKET

09168-08015

$2.79

21

PLUG

09248-16012

$4.64

22

GASKET

09168-16002

$1.91

22A

SEPARATOR, OIL

11324-02F10

Unavailable

23

TANK, OIL RETURN | MODEL W/X/Y

11330-02F01

Unavailable

23

TANK, OIL RETURN | MODEL K1/K2/K3

11330-02F10

Unavailable

24

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

25

HOSE, OIL RETURN | MODEL W/X/Y

11333-02F00

Unavailable

25

HOSE, OIL RETURN | MODEL K1/K2/K3 This part replaces 11333-02F10.

11333-02F00

Unavailable

26

CLIP, OIL RETURN HOSE

09402-28511

$6.88

27

HOSE, BREATHER

11332-02FA0

Unavailable

28

CLIP, BREATHER HOSE | MODEL W/X/YMODEL K1/K2/K3

09401-15101

$2.26

28

CLIP, BREATHER HOSE | MODEL K1/K2/K3

09401-15404

$2.26

29

SWITCH ASSY,OIL PRESSURE | MODEL W/X/Y This part replaces 37820-33D00.

37820-33D11

$25.13

29

SWITCH ASSY,OIL PRESSURE | MODEL K1/K2/K3 This part replaces 37820-33D10.

37820-33D11

$25.13

30

BOLT (10X205)

09103-10145

$17.09

31

BOLT (10X155)

09103-10146

Unavailable

32

BOLT (10X200)

09103-12052

Unavailable

33

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

$3.55

34

NUT This part replaces 08319-31123.

08319-3112B

$5.00
