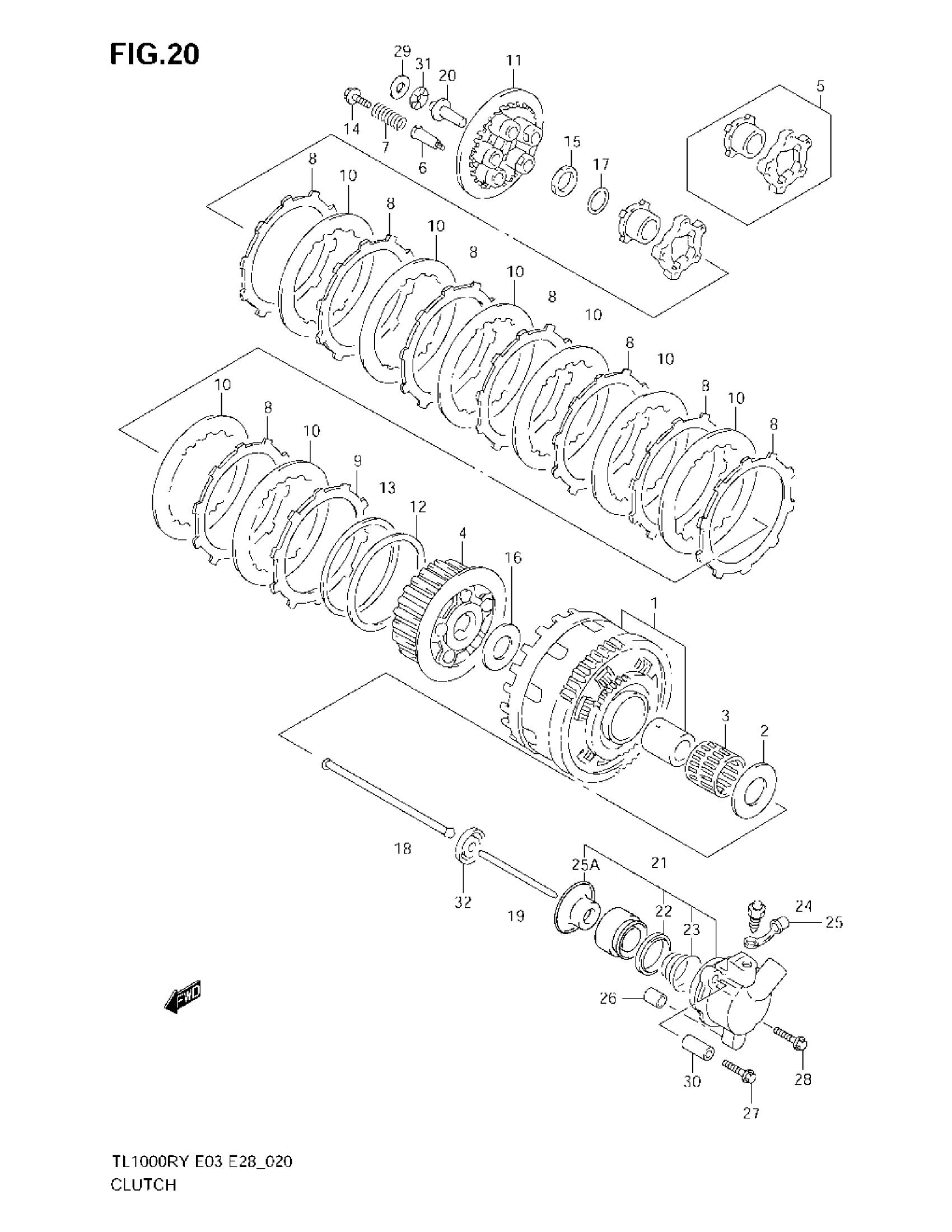

Suzuki TL1000R (2003) CLUTCH Diagram

#

Description
Price

1

GEAR ASSY, PRIMARY DRIVEN

21200-02820

Unavailable

2

WASHER (25X54X2.5) | MODEL W/X/Y/K1

09160-25071

Unavailable

2

WASHER (25X54X2.5) | MODEL K2/K3

09160-25037

$8.85

3

BEARING (35X40X35.8)

09263-35017

$40.54

4

HUB, CLUTCH SLEEVE

21410-02F10

Unavailable

5

CAM SET, CLUTCH

21610-02F12

$239.88

6

BOLT, SPRING SUPPORT | MODEL W/X/Y This part replaces 21481-02F10.

21481-02F12

$7.69

6

BOLT, SPRING SUPPORT | MODEL K1/K2/K3 This part replaces 21481-02F11.

21481-02F12

$7.69

7

SPRING, CLUTCH

21413-02F10

$7.72

8

PLATE, CLUTCH DRIVE | MODEL W/X This part replaces 21441-02F10.

21441-02F11

$28.92

8

PLATE, CLUTCH DRIVE | MODEL Y

21441-02F11

$28.92

8

PLATE, CLUTCH DRIVE | MODEL K1/K2/K3

21441-02F30

$28.92

9

PLATE, CLUTCH DRIVE NO.2 | MODEL W/X This part replaces 21442-02F10.

21442-02F11

$27.87

9

PLATE, CLUTCH DRIVE NO.2 | MODEL Y/K1/K2/K3

21442-02F11

$27.87

10

PLATE, CLUTCH DRIVEN | MODEL W/X/Y

21451-02F10

$11.14

10

PLATE, CLUTCH DRIVEN | MODEL K1/K2/K3

21451-02F30

$11.14

11

DISK, CLUTCH PRESSURE

21462-02F10

Unavailable

12

SEAT, WAVE WASHER

21471-02F10

$15.32

13

WASHER, CLUTCH PLATE WAVE

21472-02F10

$16.64

14

BOLT, CLUTCH SPRING | MODEL W/X/Y This part replaces 21482-02F10.

21482-02F12

$2.92

14

BOLT, CLUTCH SPRING | MODEL K1/K2/K3 This part replaces 21482-02F11.

21482-02F12

$2.92

15

NUT, CLUTCH SLEEVE HUB

09159-24010

$13.22

16

WASHER, CLUTCH SLEEVE | MODEL W/X/Y,25X50X2.5

09160-25072

Unavailable

16

.WASHER (25X50X2.5) | MODEL K1/K2/K3,25X50X2.5

09160-25056

$11.61

17

WASHER, CLUTCH SLEEVE | 24.2X35X2

09164-24006

$3.76

18

ROD, CLUTCH PUSH RH

23110-38B00

$23.19

19

ROD, CLUTCH PUSH LH

23111-24A01

$13.30

20

PIECE, CLUTCH PUSH

23121-38B00

$27.62

21

CYLINDER,CLUTCH | Includes Item(s) 22 - 25A This part replaces 23160-02F20.

23160-02F21

$111.55

22

CUP

23163-10F00

$7.22

23

SPRING

23164-10F00

$5.13

24

BLEEDER

59121-01A00

$8.73

25

CAP, BLEEDER

59122-01A00

$4.34

25A

COVER, DUST

23166-02F20

$12.73

26

PIN, CL RLSE CYL

04221-08149

$1.96

27

BOLT This part replaces 07130-06653.

07130-0665B

$3.79

28

BOLT This part replaces 07130-06703.

07130-0670B

$3.89

29

WASHER, CLUTCH PUSH | 15.5X28X1

09160-15045

$3.89

30

SPACER, CL RELEASE

09180-06322

$6.70

31

BEARING, CLUTCH PUSH | 15X28X2

09263-15003

$8.29

32

SEAL, CLUTCH PUSH | MODEL W/X/Y/K16X34X5.5

09285-06015

$7.98

32

SEAL, CLUTCH PUSH | MODEL K2/K36X34X5.5 This part replaces 09283-06007.

09285-06015

$7.98
