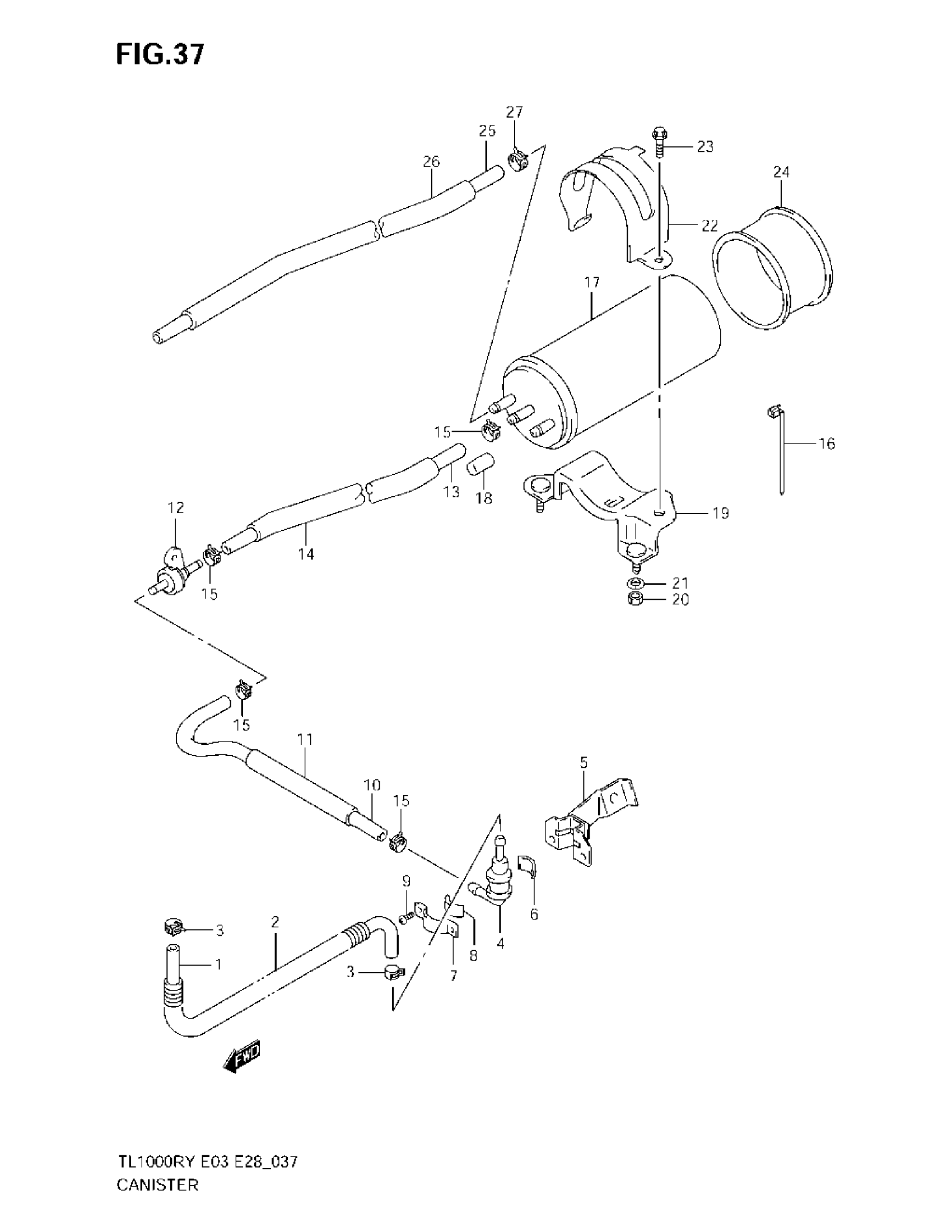

Suzuki TL1000R (2003) CANISTER (E33) Diagram

#

Description
Price

1

HOSE, BREATHER VALVE This part replaces 44435-02FA0.

44434-29F00

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 09440-13040.

09440-13040-XC0

Unavailable

3

CLIP

09401-11413

$2.26

4

VALVE FUEL TANK BREATHER

44240-17C00

$64.68

5

BRACKET, BREATHER VALVE | Includes Item(s) 6

44890-02FA0

Unavailable

6

CUSHION (10X30X2)

44894-24A00

$1.72

7

PLATE,FUEL TANK BREATHER NO.2 | Includes Item(s) 8

44892-24A00

$4.52

8

CUSHION (10X30X2)

44894-24A00

$1.72

9

SCREW This part replaces 02142-04083.

02142-0408B

$1.70

10

HOSE, VALVE & CANISTER FRONT | L:600->280

09355-54116-600

$12.06

11

PROTECTOR | L:600->240

09351-14152-600

$10.62

12

VALVE, 2 WAY & BREATHER

44240-24F00

$64.68

13

HOSE, VALVE & CANISTER REAR | L:600->360

09355-54116-600

$12.06

14

PROTECTOR | L:600->310

09351-14152-600

$10.62

15

CLIP

09401-11413

$2.26

16

CLAMP This part replaces 09407-14408.

09407-17402

$3.93

16

CLAMP

09407-18402

$2.19

16

CLAMP This part replaces 09407-17401.

09407-17402

$3.93

17

CANISTER ASSY CHARCOAL

17210-26E00

$324.10

18

CAP

09251-07003

$2.53

19

BRACKET, CANISTER

44880-02F01

Unavailable

20

NUT This part replaces 08319-31063.

08319-3106A

$2.03

21

WASHER

09169-06071

$2.50

22

HOLDER, CANISTER

44882-02F01

Unavailable

23

SCREW This part replaces 02142-06123.

02142-0612A

$1.49

24

CUSHION CANISTER

44883-26E00

Unavailable

25

HOSE, CARB | L:2000->860

09359-54111-00A

Unavailable

26

PROTECTOR | L:2000->800

09351-14152-00B

Unavailable

27

CLIP

09401-12404

$2.34
