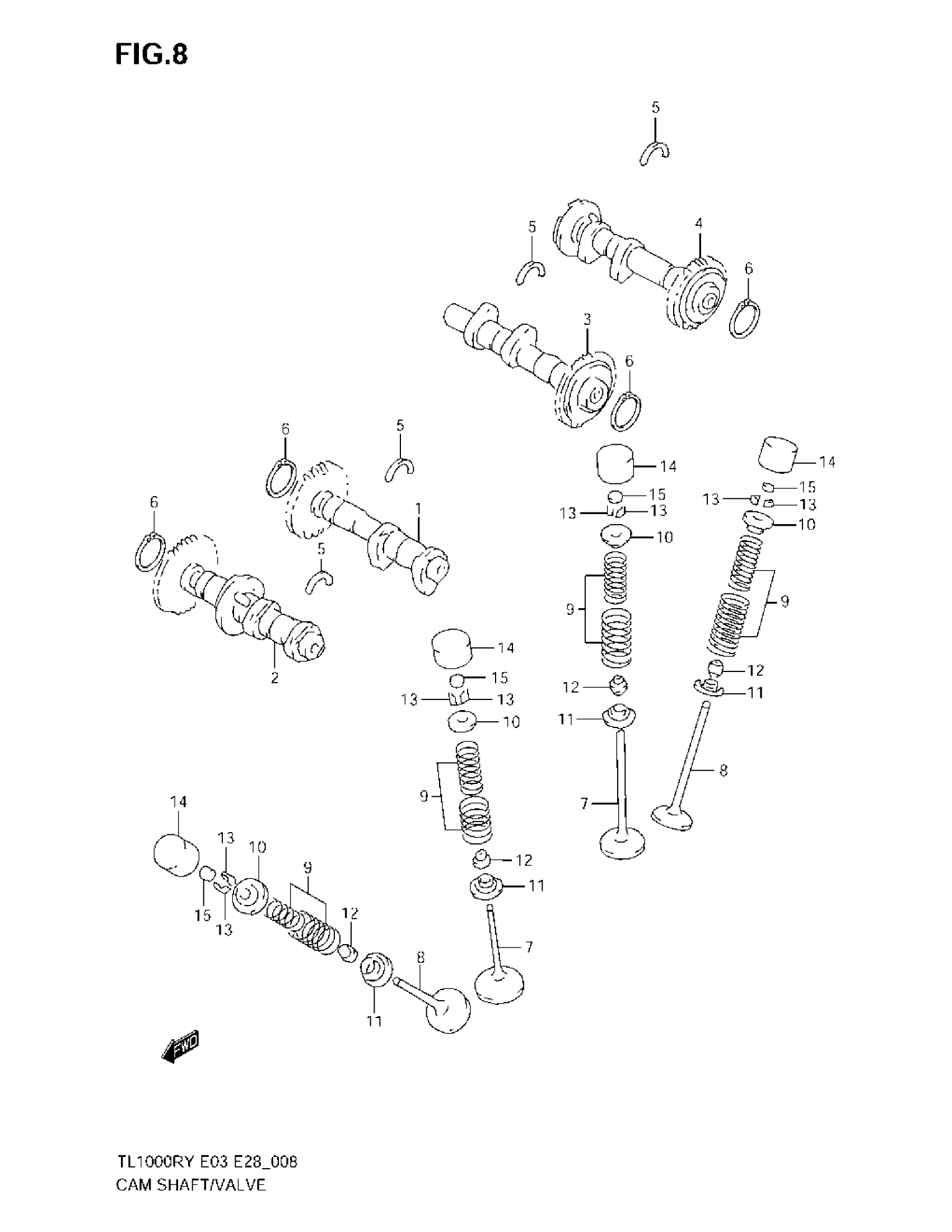

Suzuki TL1000R (2003) CAM SHAFT / VALVE Diagram

#

Description
Price

1

CAM SHAFT ASSY, INTAKE FRONT | MODEL W/X/Y This part replaces 12701-02F20.

12701-02F60

Unavailable

1

CAM SHAFT ASSY, INTAKE FRONT | MODEL K1/K2/K3

12701-02F60

Unavailable

2

CAM SHAFT ASSY, EXHAUST FRONT | MODEL W/X/Y This part replaces 12702-02F20.

12702-02F60

Unavailable

2

CAM SHAFT ASSY, EXHAUST FRONT | MODEL K1/K2/K3

12702-02F60

Unavailable

3

CAM SHAFT ASSY, INTAKE REAR | MODEL W/X/Y This part replaces 12703-02F20.

12703-02F60

Unavailable

3

CAM SHAFT ASSY, INTAKE REAR | MODEL K1/K2/K3

12703-02F60

Unavailable

4

CAM SHAFT ASSY, EXHAUST REAR | MODEL W/X/Y This part replaces 12704-02F20.

12704-02F60

Unavailable

4

CAM SHAFT ASSY, EXHAUST REAR | MODEL K1/K2/K3

12704-02F60

Unavailable

5

C RING

09390-22006

$2.45

6

CIRCLIP This part replaces 08331-31266.

08331-3126A

$2.32

7

VALVE, INTAKE

12911-02F00

$48.38

8

VALVE, EXHAUST

12912-02F00

$72.00

9

SPRING SET, VALVE

12920-02F10

Unavailable

10

RETAINER,VALVE SPRING

12931-02F10

$15.16

11

SEAT,VALVE SPRING

12933-38400

$5.44

12

SEAL, VALVE STEM OIL

09289-05015

$6.70

13

COTTER, VALVE

12932-24400

$1.94

14

TAPPET This part replaces 12891-02F00.

12891-02F10

$52.61

15

SHIM, TAPPET (T:2.30)

12892-41C00-230

$11.38

15

SHIM, TAPPET (T:2.35)

12892-41C00-235

$11.83

15

SHIM, TAPPET (T:2.40)

12892-41C00-240

$11.83

15

SHIM, TAPPET (T:2.45)

12892-41C00-245

$11.83

15

SHIM, TAPPET (T:2.50)

12892-41C00-250

$11.83

15

SHIM, TAPPET (T:2.55)

12892-41C00-255

$11.83

15

SHIM, TAPPET (T:2.60)

12892-41C00-260

$11.38

15

SHIM, TAPPET (T:2.65)

12892-41C00-265

$11.38

15

SHIM, TAPPET (T:2.70)

12892-41C00-270

$11.38

15

SHIM, TAPPET (T:2.75)

12892-41C00-275

$9.69

15

SHIM, TAPPET (T:2.80)

12892-41C00-280

$11.38

15

SHIM, TAPPET (T:2.85)

12892-41C00-285

$11.83

15

SHIM, TAPPET (T:2.90)

12892-41C00-290

$11.38

15

SHIM, TAPPET (T:2.95)

12892-41C00-295

$11.83

15

SHIM, TAPPET (T:3.00)

12892-41C00-300

$11.60

15

SHIM, TAPPET (T:3.05)

12892-41C00-305

$11.83

15

SHIM, TAPPET (T:3.10)

12892-41C00-310

$11.38

15

SHIM, TAPPET (T:3.15)

12892-41C00-315

Unavailable

15

SHIM, TAPPET (T:3.20)

12892-41C00-320

$11.60

15

SHIM, TAPPET (T:3.25)

12892-41C00-325

$11.83

15

SHIM, TAPPET (T:3.30)

12892-41C00-330

$11.83

15

SHIM, TAPPET (T:3.35)

12892-41C00-335

$11.83

15

SHIM, TAPPET (T:3.40)

12892-41C00-340

$11.83

15

SHIM, TAPPET (T:3.45)

12892-41C00-345

Unavailable

15

SHIM, TAPPET (T:3.50)

12892-41C00-350

$11.83

16

SHIM SET, TAPPET | OPT NOT SHOWN; Includes Item(s) 17

12800-41810

$1,138.37

17

CASE, TAPPET SHIM

99000-69471

Unavailable
