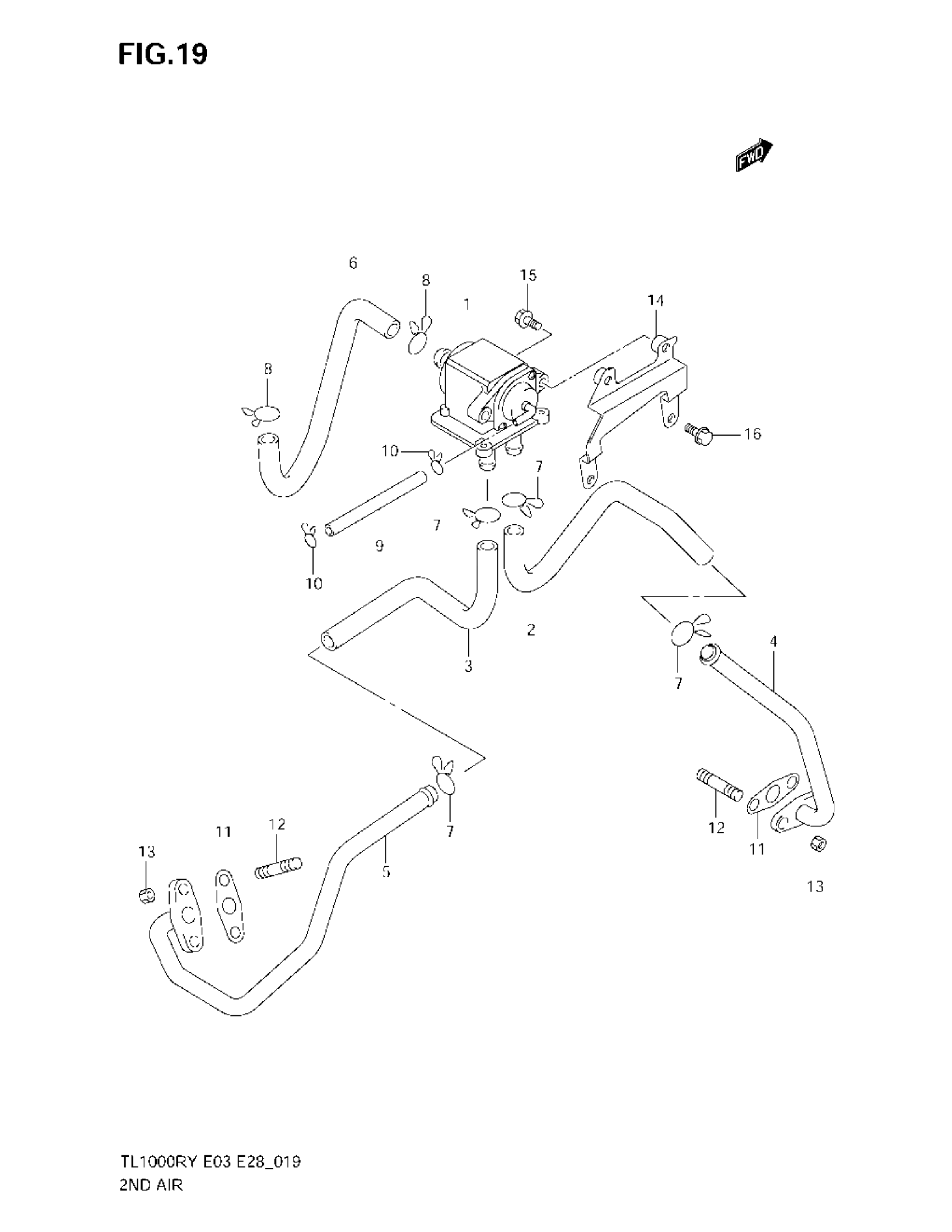

Suzuki TL1000R (2003) 2ND AIR Diagram

#

Description
Price

1

VALVE ASSY, 2ND AIR REED This part replaces 18450-10F02.

18450-10F03

$194.46

2

HOSE, 2ND AIR VALVE FRONT

18461-02FA0

Unavailable

3

HOSE, 2ND AIR VALVE REAR

18471-02FA0

Unavailable

4

PIPE, 2ND AIR FRONT

18410-02FA0

Unavailable

5

PIPE, 2ND AIR REAR

18420-02FA0

Unavailable

6

HOSE, 2ND AIR CLEANER

18711-02FA0

Unavailable

7

CLIP, 2ND AIR VALVE HOSE NO.2

09401-13409

$2.12

8

CLIP, 2ND AIR CLEANER HOSE

09401-15101

$2.26

9

HOSE 4X7X600 | L:600->220 This part replaces 09352-40703-600.

09352-40706-600

$5.11

10

CLIP, 2ND AIR VACUUM HOSE

09401-06101

$2.03

11

GASKET 2ND AIR PIPE

18441-45C01

$7.05

12

BOLT,STUD This part replaces 01421-06163.

01421-0616A

$1.91

13

NUT This part replaces 08316-10063.

08316-1006B

$2.50

14

BRACKET, 2ND AIR VALVE

18610-02FA0

Unavailable

15

BOLT This part replaces 07130-06163.

07130-0616B

$2.39

16

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97
