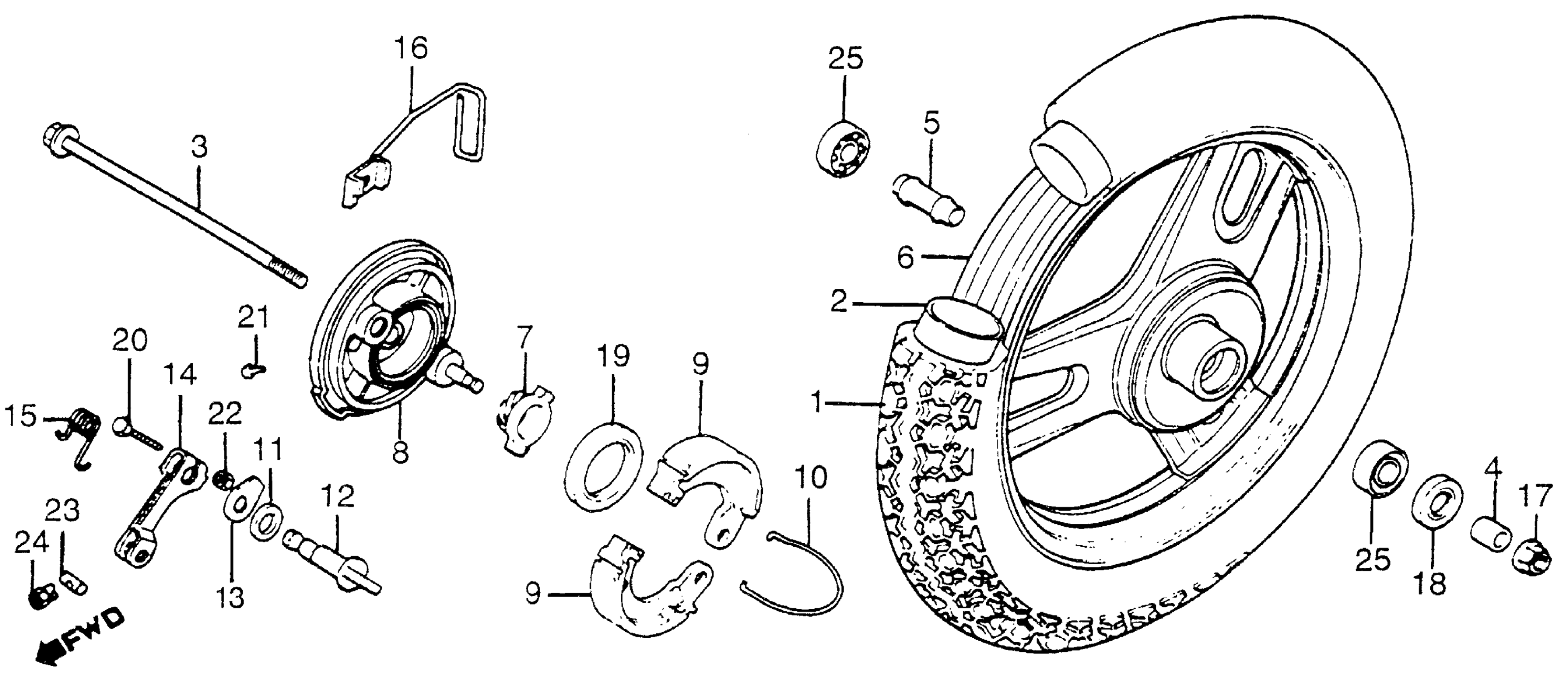

Honda TG50MA (85) GYRO S, JPN, VIN# JH2TB100-FS000009 TO JH2TB100-FS004008 FRONT WHEEL Diagram

#

Description
Price

1

TIRE (3.00-10) (2PR K398) (DUNLOP) (NOT AVAILABLE)

42711-GN2-622

Unavailable

2

TUBE, TIRE (2.50-10) (INOUE)

42712-GF0-005

Unavailable

2

TUBE, TIRE (2.50-10) (INOUE) This part replaces 42712-GN2-622.

42712-GF0-005

Unavailable

3

AXLE, FR. WHEEL

44301-GJ2-000

Unavailable

4

COLLAR, FR. WHEEL SIDE This part replaces 44311-GM8-000.

44311-GZ9-000

Unavailable

4

COLLAR, FR. WHEEL SIDE

44311-GZ9-000

Unavailable

5

COLLAR, FR. DISTANCE

44620-147-000

$8.80

6

WHEEL, FR. This part replaces 44650-GM8-670ZA.

44650-GM8-671ZA

Unavailable

6

WHEEL, FR.

44650-GM8-671ZA

Unavailable

7

GEAR, SPEEDOMETER

44806-GA7-003

Unavailable

8

SUB-PANEL, FR. BRAKE *YR111MU* (GLAMIS GOLD METALLIC-U)

45010-GM8-670ZA

Unavailable

9

SHOE SET, BRAKE

06430-131-405

$15.33

9

SHOE, FR. BRAKE

43120-GZ9-003

Unavailable

9

SHOE, FR. BRAKE This part replaces 45120-GE8-003.

43120-GZ9-003

Unavailable

9

SHOE, FR. BRAKE This part replaces 45120-GE8-505.

43120-GZ9-003

Unavailable

10

SPRING, BRAKE SHOE

45133-044-000

$2.31

11

SEAL, BRAKE CAM

45134-165-890

$1.57

12

CAM, FR. BRAKE This part replaces 45141-GE8-000.

45141-GR1-010

Unavailable

12

CAM, FR. BRAKE This part replaces 45141-GK1-000.

45141-GR1-010

Unavailable

12

CAM, FR. BRAKE This part replaces 45141-GK1-010.

45141-GR1-010

Unavailable

13

INDICATOR, FR. BRAKE This part replaces 45145-GA7-000.

45145-GN2-000

Unavailable

13

INDICATOR, FR. BRAKE

45145-GN2-000

Unavailable

14

ARM, FR. BRAKE This part replaces 45410-GE8-000.

45410-GT8-600

$13.34

14

ARM, FR. BRAKE

45410-GT8-600

$13.34

15

SPRING, BRAKE ARM RETURN

45435-GC3-000

$5.90

16

CLIP, FR. CABLE

45465-GM8-000

Unavailable

17

NUT, U (10MM)

90304-GE8-003

$3.67

18

OIL SEAL (19X30.5X7)

90754-GK1-003

Unavailable

18

OIL SEAL (19X30.5X7) (ARAI)

90754-147-003

$5.31

19

OIL SEAL (34X42X5) This part replaces 91252-GF0-003.

91252-GF0-004

$6.16

19

OIL SEAL (34X42X5)

91252-GF0-004

$6.16

19

OIL SEAL (34X42X5) This part replaces 91252-GK1-004.

91252-GF0-004

$6.16

20

BOLT, HEX. (5X22) This part replaces 92000-05022-0A.

92101-05022-0A

$1.49

20

BOLT, HEX. (5X22)

92101-05022-0A

$1.49

21

SCREW, PAN (4X6)

93500-04006-0A

$1.49

22

NUT, HEX. (5MM)

94001-05000-0S

$2.74

23

JOINT A, BRAKE ARM

95015-31001

$1.53

24

NUT A, BRAKE ROD ADJUSTING

95015-41000

$1.49

25

BEARING, RADIAL BALL (6200U)

96140-62000-10

$15.44
