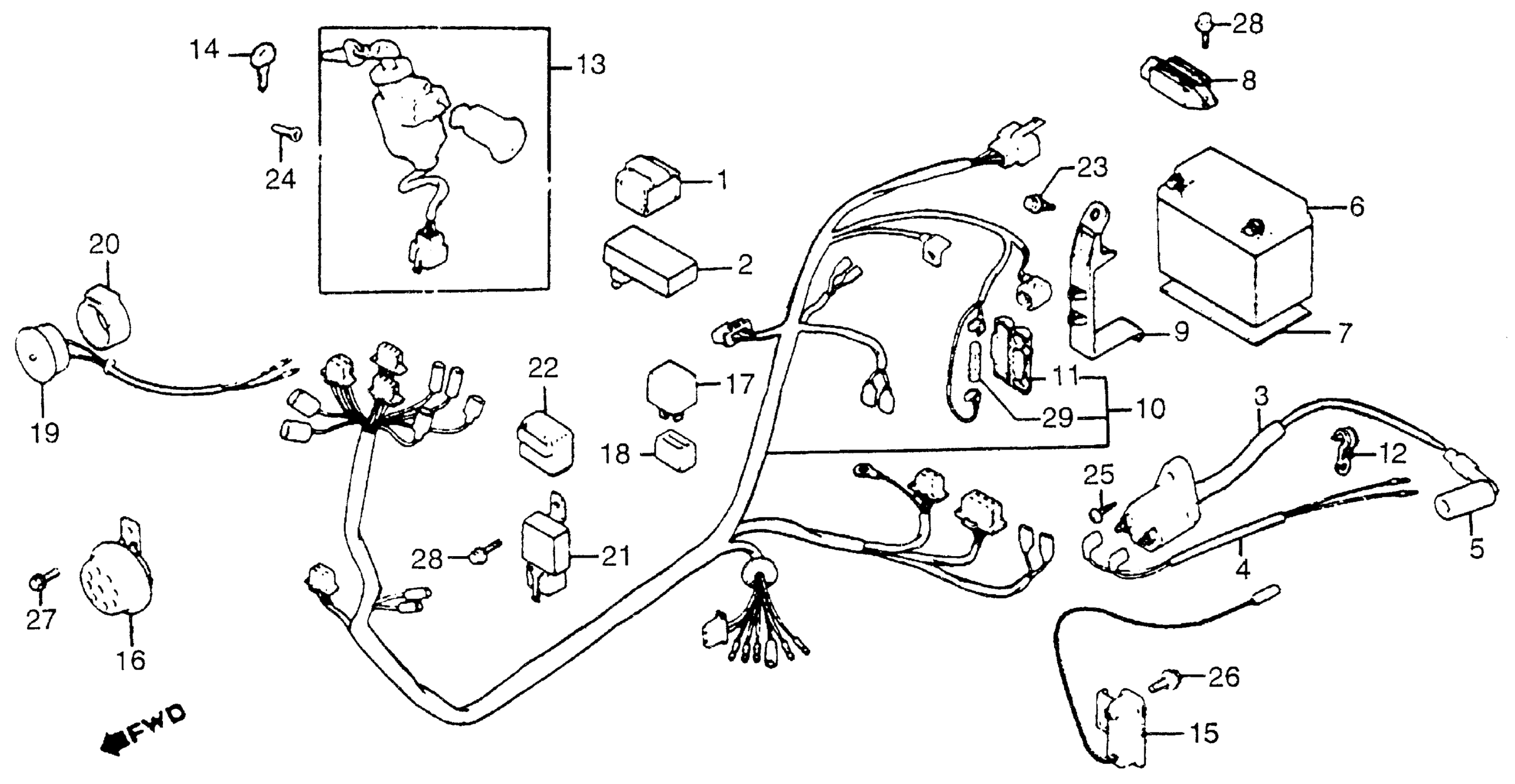

Honda TG50A (86) GYRO S, JPN, VIN# JH2TB100-GS000009 WIRE HARNESS + BATTERY Diagram

#

Description
Price

1

SUSPENSION, IGNITION CONTROL MODULE

30406-471-000

$8.69

2

MODULE, IGNITION CONTROL (CDI)

30410-GM8-671

Unavailable

3

COIL, IGNITION

30510-GE2-405

Unavailable

3

COIL, IGNITION This part replaces 30510-GM8-000.

30510-GE2-405

Unavailable

4

SUB-HARNESS, IGNITION

30520-GJ5-010

Unavailable

5

CAP ASSY., NOISE SUPPRESSOR

30700-GM8-670

Unavailable

6

BATTERY (YTX4L-BS) (YUASA) (MSDS) This part replaces 31500-GN2-672.

31500-GFC-782AH

$75.08

6

BATTERY (YTX4L-BS) (YUASA) (MSDS) This part replaces 31500-GN2-673.

31500-GFC-782AH

$75.08

6

BATTERY (YTX4L-BS) (YUASA) (MSDS) This part replaces 31500-GN2-674.

31500-GFC-782AH

$75.08

6

BATTERY (YTX4L-BS) (YUASA) (MSDS) This part replaces 31500-GN2-675.

31500-GFC-782AH

$75.08

6

BATTERY (YTX4L-BS) (YUASA) (MSDS) This part replaces 31500-GN2-676.

31500-GFC-782AH

$75.08

6

BATTERY (YTX4L-BS) (YUASA) (MSDS) This part replaces 31500-GN2-677.

31500-GFC-782AH

$75.08

6

BATTERY (YTX4L-BS) (YUASA) (MSDS) This part replaces 31500-GN2-678.

31500-GFC-782AH

$75.08

6

BATTERY (YTX4L-BS) (YUASA) (MSDS) This part replaces 31500-GN2-679.

31500-GFC-782AH

$75.08

7

RUBBER, BATTERY

31508-GM8-000

Unavailable

8

RECTIFIER, REGULATOR (SHINDENGEN) This part replaces 31600-GN2-003.

31600-GW0-004

Unavailable

8

RECTIFIER, REGULATOR (SHINDENGEN)

31600-GW0-004

Unavailable

9

BAND, BATTERY (NOT AVAILABLE)

31611-GM8-000

Unavailable

10

WIRE HARNESS

32100-GM8-670

Unavailable

11

CASE, FUSE (10A)

32120-383-830

Unavailable

12

CLIP, ALTERNATOR CABLE

32921-039-000

$4.75

13

LOCK SET (NOT AVAILABLE)

35010-GM8-000

Unavailable

14

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional). This part replaces 35121-MM8-811.

35121-MR1-770

$9.74

14

KEY, BLANK (TYPE1) | (Optional).

35121-MR1-770

$9.74

14

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional). This part replaces 35121-402-811.

35121-MR1-770

$9.74

14

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional). This part replaces 35122-MM8-811.

35122-MR1-770

$9.74

14

KEY, BLANK (TYPE2) | (Optional).

35122-MR1-770

$9.74

14

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional). This part replaces 35122-402-811.

35122-MR1-770

$9.74

15

RESISTOR (NOT AVAILABLE)

35400-GM8-000

Unavailable

16

HORN This part replaces 38110-GM8-671.

38110-GM8-674

$39.03

16

HORN This part replaces 38110-GM8-672.

38110-GM8-674

$39.03

16

HORN This part replaces 38110-GM8-673.

38110-GM8-674

$39.03

17

RELAY, TURN SIGNAL (MITSUBA) This part replaces 38301-GN3-671.

38301-GN3-672

$61.82

17

RELAY, TURN SIGNAL

38301-GN3-672

$61.82

18

SUSPENSION, TURN SIGNAL RELAY (DENSO)

38306-GE8-008

$4.52

18

SUSPENSION, TURN SIGNAL RELAY

38306-KK4-000

$3.01

19

PILOT, AUDIBLE

38401-GM8-000

Unavailable

20

SUSPENSION, AUDIBLE PILOT

38402-GC1-000

$6.48

21

RELAY ASSY., STARTER This part replaces 38500-GM8-004.

38500-GM8-505

Unavailable

22

SUSPENSION, STARTER RELAY This part replaces 38506-GJ5-000.

38506-GJ5-004

Unavailable

22

SUSPENSION, STARTER RELAY

38506-GJ5-004

Unavailable

23

BOLT, FLANGE (6MM)

90111-162-000

$2.89

24

SCREW, U-LOCK FLAT (6X12)

90164-028-000

$1.80

25

SCREW, TAPPING (5X30)

93901-25610

Unavailable

26

BOLT, FLANGE (6X10) This part replaces 95700-06010-00.

95701-06010-00

$1.49

26

BOLT, FLANGE (6X10)

95701-06010-00

$1.49

27

BOLT, FLANGE (6X10) This part replaces 95700-06010-07.

95701-06010-07

$1.62

27

BOLT, FLANGE (6X10)

95701-06010-07

$1.62

28

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

28

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

29

FUSE A (10A)

98200-11000

$1.80
