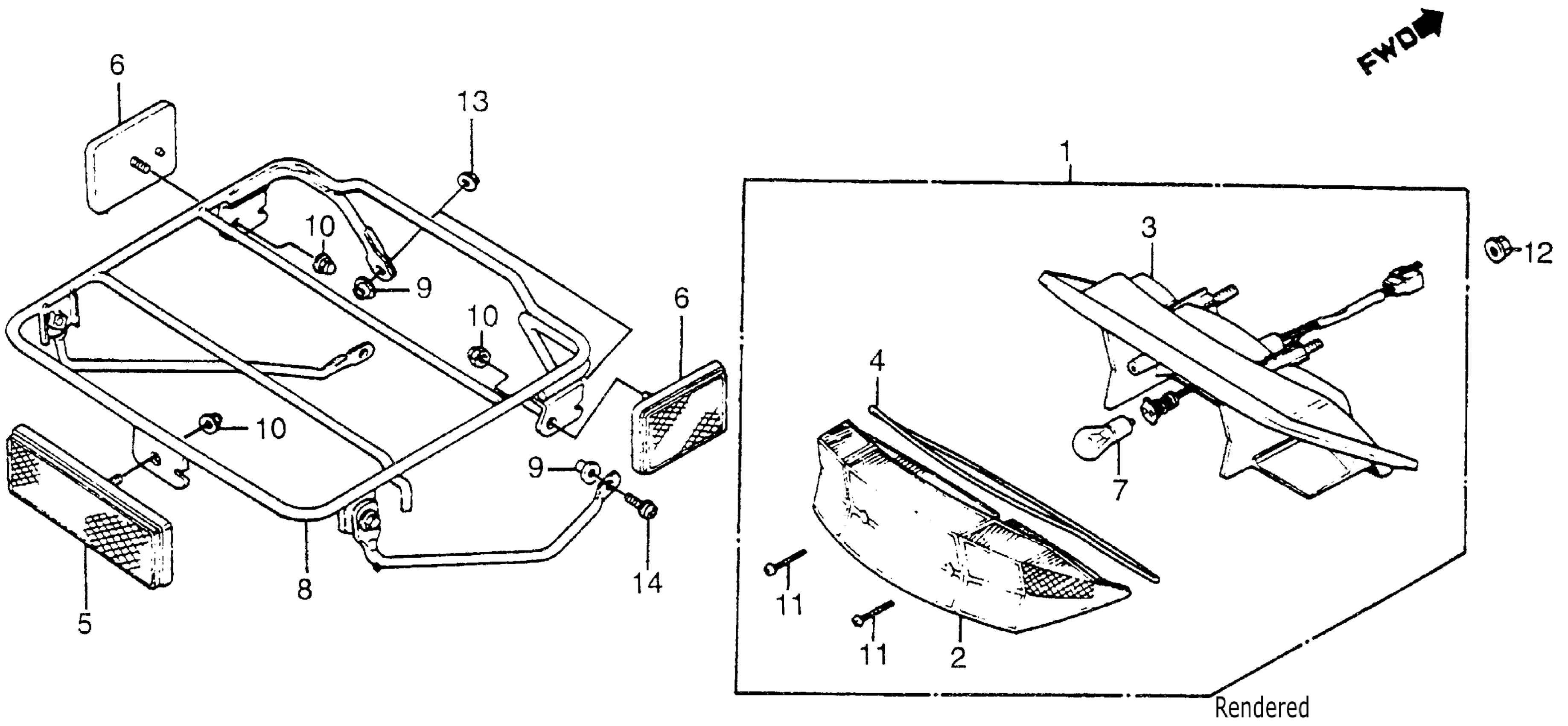

Honda TG50A (86) GYRO S, JPN, VIN# JH2TB100-GS000009 TAILLIGHT + REAR CARRIER Diagram

TAILLIGHT ASSY. (STANLEY)

33701-GM8-671

Unavailable

LENS, TAILLIGHT

33702-GM8-671

Unavailable

BASE, TAILLIGHT

33704-GM8-671

Unavailable

GASKET, TAILLIGHT LENS

33709-KE8-003

Unavailable

REFLECTOR, REFLEX

33741-GK8-672

Unavailable

REFLECTOR, RR. REFLEX

33742-MB2-672

$22.05

BULB, STOP & TAILLIGHT (12V23/8W) (STANLEY) This part replaces 34901-504-003.

34906-313-671

$6.67

BULB, STOP & TAILLIGHT (12V23/8W) (STANLEY)

34906-313-671

$6.67

CARRIER ASSY., RR.

81200-GM8-670

Unavailable

COLLAR, TOOL BOX SETTING

83505-KM4-000

$4.87

NUT, FLANGE CAP (5MM)

90303-GC2-630

$3.45

SCREW, TAPPING (4X25)

93901-34610

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49

NUT, FLANGE (8MM)

94050-08000

$1.49

BOLT, FLANGE (8X20) This part replaces 95700-08020-07.

95701-08020-07

$1.87

BOLT, FLANGE (8X20)

95701-08020-07

$1.87
