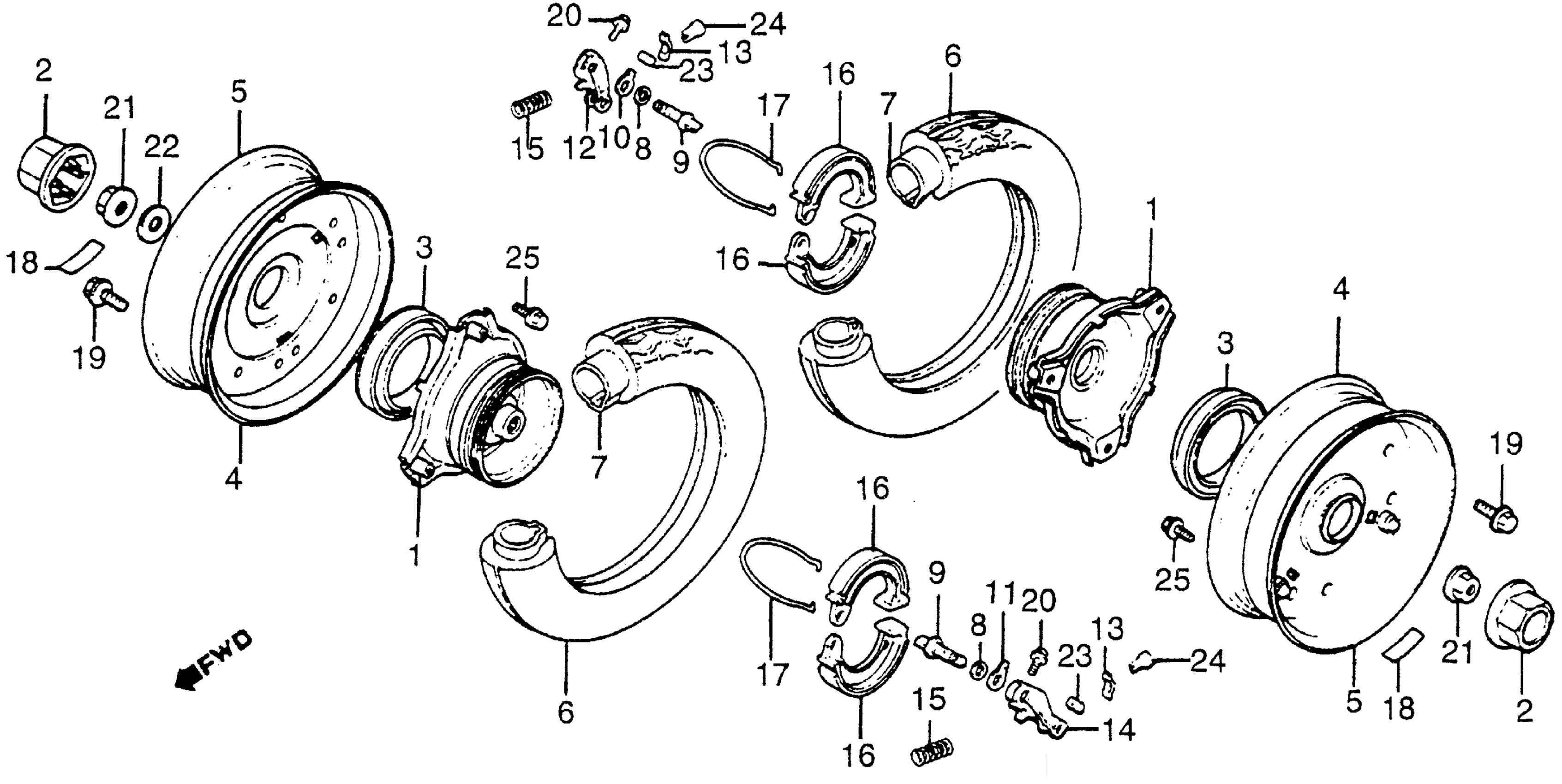

Honda TG50A (86) GYRO S, JPN, VIN# JH2TB100-GS000009 REAR WHEEL Diagram

WHEEL, RR. *NH111* (CORTINA WHITE) (NOT AVAILABLE)

42650-GM8-003ZA

Unavailable

CAP, RR. WHEEL

42651-GG2-000

Unavailable

RUBBER, RR. WHEEL

42652-GM8-000

Unavailable

RIM, RR. WHEEL (INNER) *NH111* (CORTINA WHITE) (NOT AVAILABLE)

42701-GM8-000ZA

Unavailable

RIM, RR. WHEEL (OUTER) *NH111* (CORTINA WHITE)

42702-GM8-000ZA

Unavailable

TIRE, RR. (4.50-6) (DUNLOP)

42711-GM8-671

Unavailable

TUBE, TIRE (450/540-6) (TR87) (DUNLOP)

42712-GG2-004

$16.02

SEAL, BRAKE CAM

43134-196-000

$2.56

CAM, RR. BRAKE

43141-GM8-000

Unavailable

INDICATOR, R. RR. BRAKE

43145-196-000

Unavailable

INDICATOR, L. RR. BRAKE

43146-196-000

Unavailable

ARM, RR. BRAKE

43410-GA7-010

Unavailable

ARM, RR. BRAKE This part replaces 43410-GJ5-000.

43410-GA7-010

Unavailable

PLATE, ADJUSTING BOLT STOPPER

43411-196-000

Unavailable

ARM, RR. BRAKE

43410-196-010

Unavailable

ARM, RR. BRAKE This part replaces 43420-GJ5-000.

43410-196-010

Unavailable

SPRING, RR. BRAKE ARM

43472-KG8-000

$3.74

SPRING, RR. BRAKE ARM This part replaces 43472-147-000.

43472-KG8-000

$3.74

SPRING, RR. BRAKE ARM

43472-161-000

$4.13

SHOE SET, BRAKE

06430-131-405

$15.33

SHOE, FR. BRAKE

43120-GZ9-003

Unavailable

SHOE, FR. BRAKE This part replaces 45120-GE8-003.

43120-GZ9-003

Unavailable

SHOE, FR. BRAKE This part replaces 45120-GE8-505.

43120-GZ9-003

Unavailable

SPRING, BRAKE SHOE

45133-044-000

$2.31

LABEL, RR. TIRE PRESSURE

87518-GM8-670

Unavailable

BOLT, HEX. (10X22)

90105-GM8-000

Unavailable

BOLT, FLANGE (5X25) This part replaces 90112-187-000.

90112-187-010

$2.28

BOLT, FLANGE (5X25)

90112-187-010

$2.28

NUT, FLANGE (12MM)

90306-KF0-003

$3.85

WASHER (12MM)

90440-GM8-000

Unavailable

JOINT A, BRAKE ARM

95015-31001

$1.53

NUT A, BRAKE ROD ADJUSTING

95015-41000

$1.49

BOLT, FLANGE (8X16) This part replaces 95700-08016-00.

95701-08016-00

$1.80

BOLT, FLANGE (8X16)

95701-08016-00

$1.80
