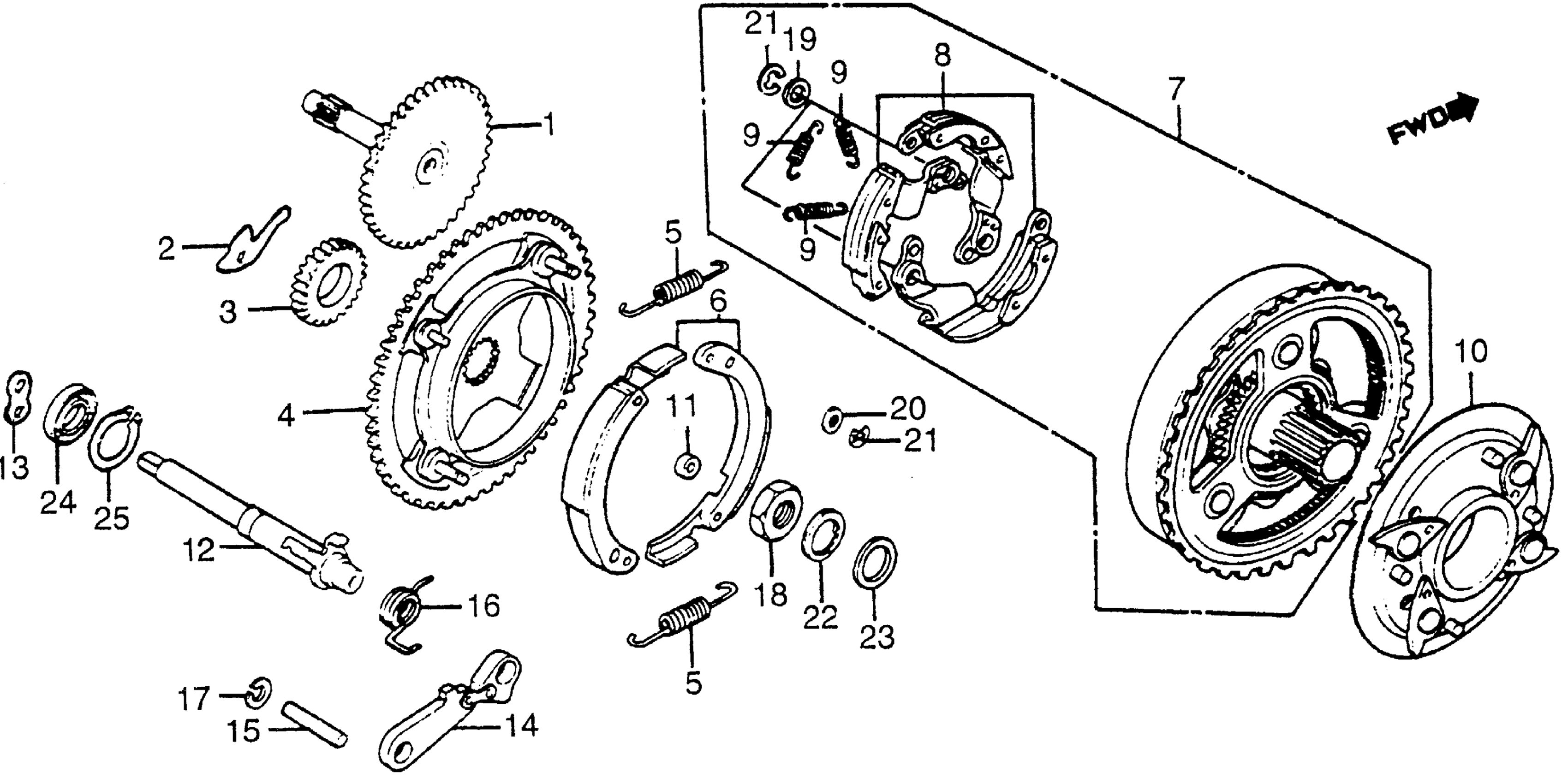

Honda TG50A (86) GYRO S, JPN, VIN# JH2TB100-GS000009 OIL PUMP DRIVESHAFT + CLUTCH + PARKING SHAFT Diagram

#

Description
Price

1

SHAFT, OIL PUMP DRIVE (NOT AVAILABLE)

15110-GM8-003

Unavailable

2

PLATE, OIL PUMP DRIVESHAFT SIDE

15116-GJ5-000

Unavailable

3

GEAR, OIL PUMP DRIVESHAFT

15131-GJ5-000

Unavailable

4

PLATE, DRIVE (NOT AVAILABLE)

22350-GM8-670

Unavailable

5

SPRING, LOW CLUTCH (NOT AVAILABLE)

22401-GM8-670

Unavailable

6

WEIGHT SET LOW CL This part replaces 22535-GM8-670.

22535-GM8-406

Unavailable

7

CLUTCH ASSY., SECOND This part replaces 22600-GM8-000.

22600-GM8-405

Unavailable

8

WEIGHT,SET 2NS CL This part replaces 22621-GM8-305.

22620-GM8-405

Unavailable

9

SPRING, SECOND CLUTCH (NOT AVAILABLE)

22623-GK0-670

Unavailable

10

PLATE, SUN GEAR

22650-GK0-000

Unavailable

11

RUBBER, CLUTCH DAMPER

22804-GM8-670

Unavailable

12

SHAFT, PARKING

24510-GJ5-000

Unavailable

13

LEVER, PARKING

24513-GJ5-000

Unavailable

14

ARM ASSY., PARKING

24520-GJ5-000

Unavailable

15

PIN, PARKING

24531-GJ5-000

Unavailable

16

SPRING, PARKING ARM

24552-GJ5-000

Unavailable

17

CLIP, KICK STARTER ARM

28293-124-000

$2.41

18

NUT, SPECIAL (17MM)

90201-GJ5-000

Unavailable

19

WASHER, THRUST (6MM)

90442-GB2-000

$3.80

20

WASHER, THRUST (6MM)

90442-044-000

$2.21

21

CIRCLIP (6MM)

90454-GB2-000

$1.79

22

CIRCLIP (OUTER) (12MM)

90455-GJ5-003

Unavailable

23

WASHER, THRUST (12MM)

90461-GJ5-000

$2.80

24

OIL SEAL (10X20X5)

91201-VA4-801

$3.81

24

OIL SEAL (10X20X5) This part replaces 91206-GJ5-003.

91201-VA4-801

$3.81

24

OIL SEAL (10X20X5) This part replaces 91206-GJ5-004.

91201-VA4-801

$3.81

25

CIRCLIP (OUTER) (12MM)

94510-12000

$1.78
