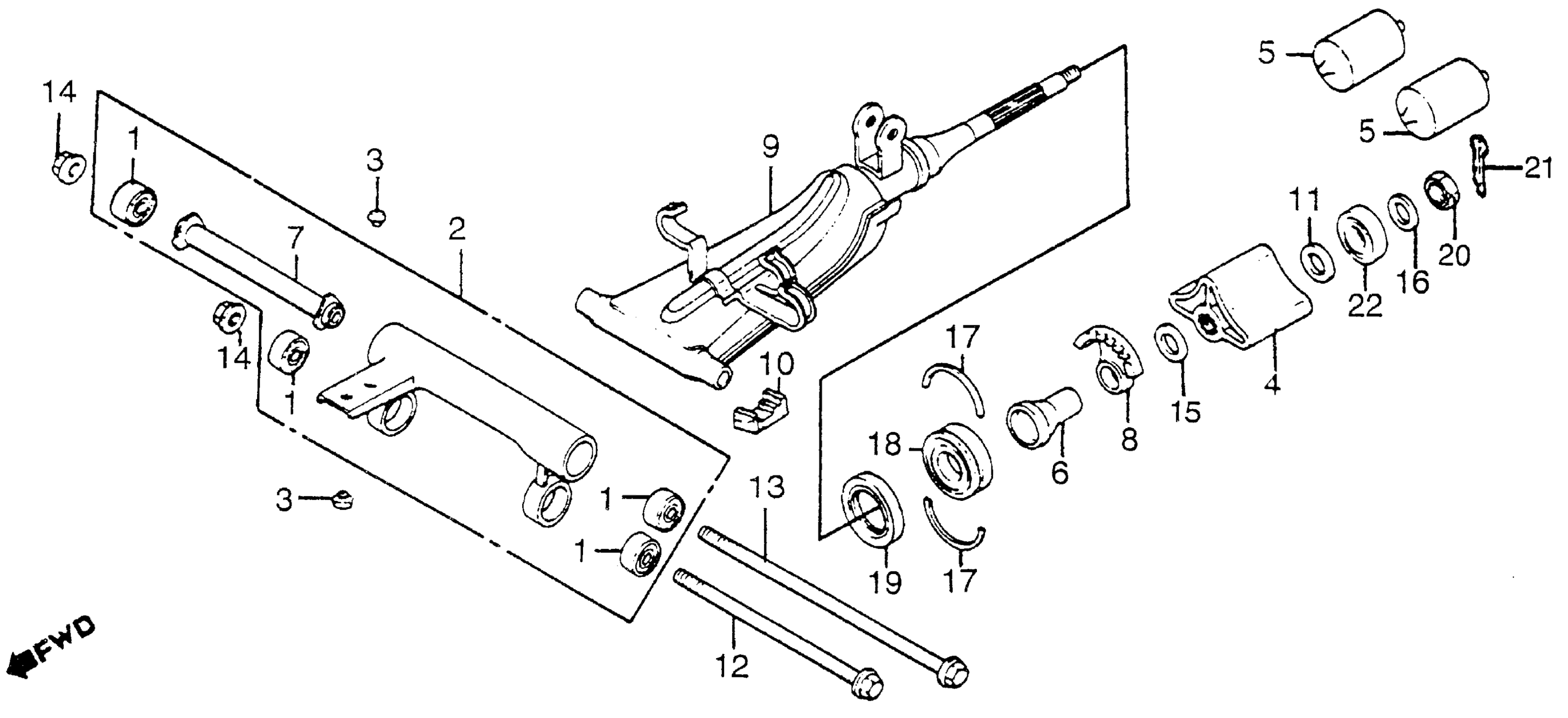

Honda TG50A (86) GYRO S, JPN, VIN# JH2TB100-GS000009 JOINT SHAFT Diagram

#

Description
Price

1

BUSH, ENGINE HANGER RUBBER

11102-187-003

$14.82

2

BRACKET ASSY., JOINT SHAFT (NOT AVAILABLE)

50350-GM8-670

Unavailable

3

RUBBER, STOPPER

50352-196-000

Unavailable

4

INNER, NEIDHART

52214-GK0-000

Unavailable

5

RUBBER, NEIDHART

52215-GM8-003

Unavailable

6

COLLAR, JOINT SHAFT

52235-GM8-670

Unavailable

7

COLLAR, JOINT CASE

52240-GJ5-000

Unavailable

8

PLATE, SWING LOCK

52281-GM8-670

Unavailable

9

SHAFT, JOINT (NOT AVAILABLE)

52300-GM8-670

Unavailable

10

SEAL, RUBBER

52305-GJ5-000

Unavailable

11

BUSH, WASHER

53312-657-000

$6.70

12

BOLT, ENGINE HANGER (NOT AVAILABLE)

90103-163-000

Unavailable

13

BOLT, ENGINE HANGER

90112-197-000

Unavailable

14

NUT, AXLE (10MM)

90304-GA6-003

$2.89

15

WASHER, PLAIN (16MM)

90439-463-000

$1.50

16

WASHER, PLAIN (12MM) This part replaces 90441-166-000.

90441-KR3-000

$3.78

17

SET-RING (620)

90605-GJ5-000

Unavailable

18

BEARING, RADIAL BALL (6007) (U)

91055-GJ5-003

Unavailable

18

BEARING, RADIAL BALL (6007) (U) This part replaces 91055-GJ5-005.

91055-GJ5-003

Unavailable

19

OIL SEAL (42X62X7)

91261-GJ5-003

Unavailable

19

OIL SEAL (42X62X7) This part replaces 91261-GJ5-005.

91261-GJ5-003

Unavailable

20

NUT, HEX. (12MM)

94002-12200-0S

$1.49

21

PIN, COTTER (2.5X18)

94201-25180

Unavailable

22

BEARING, RADIAL BALL (6202UU)

96150-62020-10

$14.36
