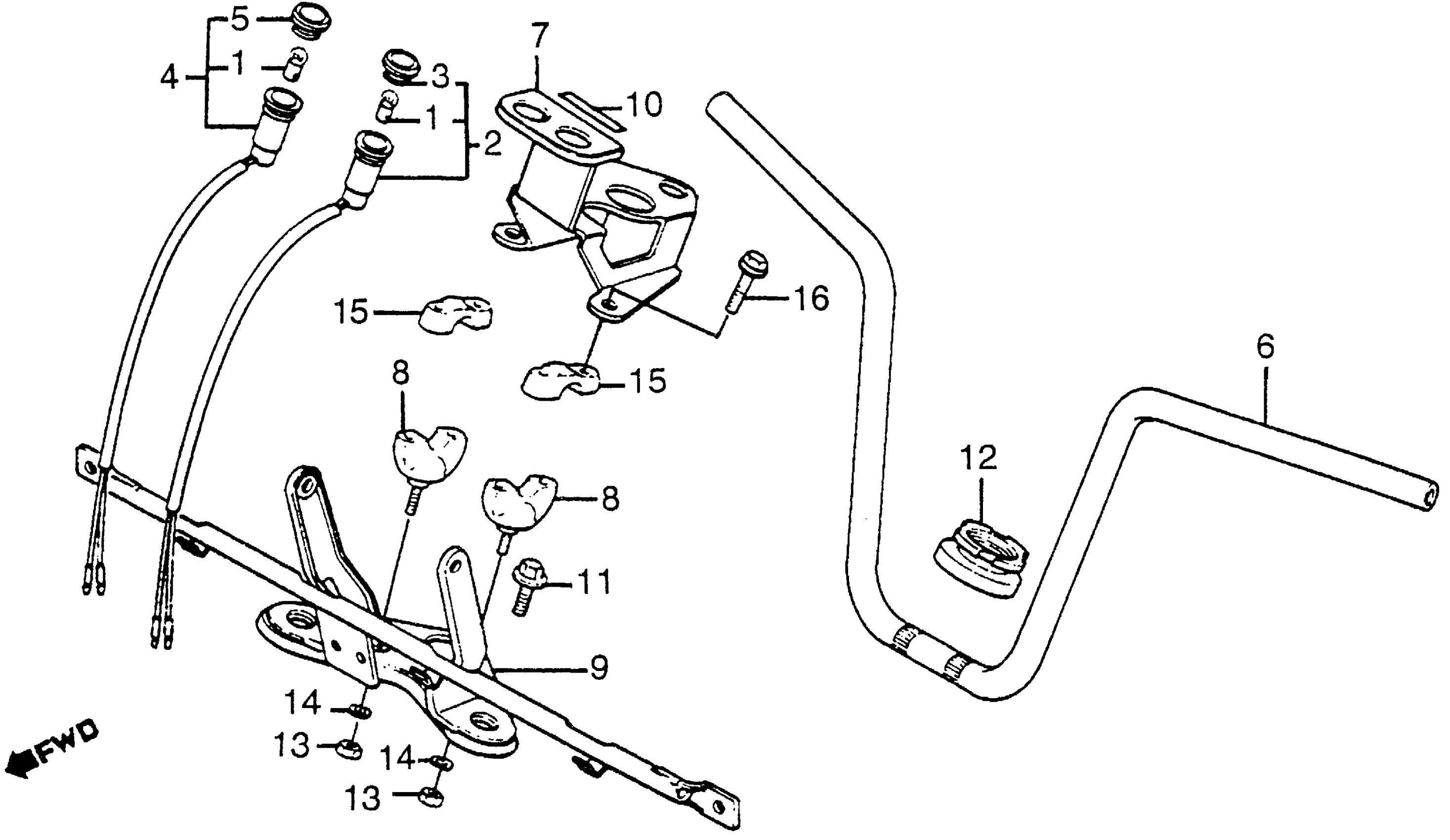

Honda TG50A (86) GYRO S, JPN, VIN# JH2TB100-GS000009 HANDLEBAR + TOP BRIDGE Diagram

#

Description

Price

1

BULB, DASH (12V3.4W) (IMASEN)

34902-259-000

$2.18

2

LAMP ASSY., HIGH BEAM PILOT

37550-GM8-670

Unavailable

3

LENS, TURN SIGNAL PILOT

37551-GM8-670

Unavailable

4

LAMP ASSY., TURN SIGNAL PILOT

37560-GM8-670

Unavailable

5

LENS, TURN SIGNAL PILOT

37561-GM8-670

Unavailable

6

HANDLEBAR (NOT AVAILABLE)

53100-GM8-670

Unavailable

7

STAY, SPEEDOMETER

53105-GM8-670

Unavailable

8

HOLDER, HANDLE (LOWER)

53130-GM8-670

Unavailable

9

BRIDGE, FORK TOP (NOT AVAILABLE)

53230-GM8-670

Unavailable

10

LABEL, PILOT LAMP

87516-GM8-670

Unavailable

11

BOLT, HEADLIGHT CASE MOUNT

90151-422-000

Unavailable

12

NUT, STEERING STEM

90301-147-010

Unavailable

13

NUT, U (10MM)

90304-GE8-003

$3.67

14

WASHER (10MM)

90411-706-000

Unavailable

15

HOLDER B2, HANDLEBAR (UPPER)

95014-22200

$12.13

16

BOLT, FLANGE (8X32) This part replaces 95800-08032-07.

95801-08032-07

Unavailable

16

BOLT, FLANGE (8X32)

95801-08032-07

Unavailable
