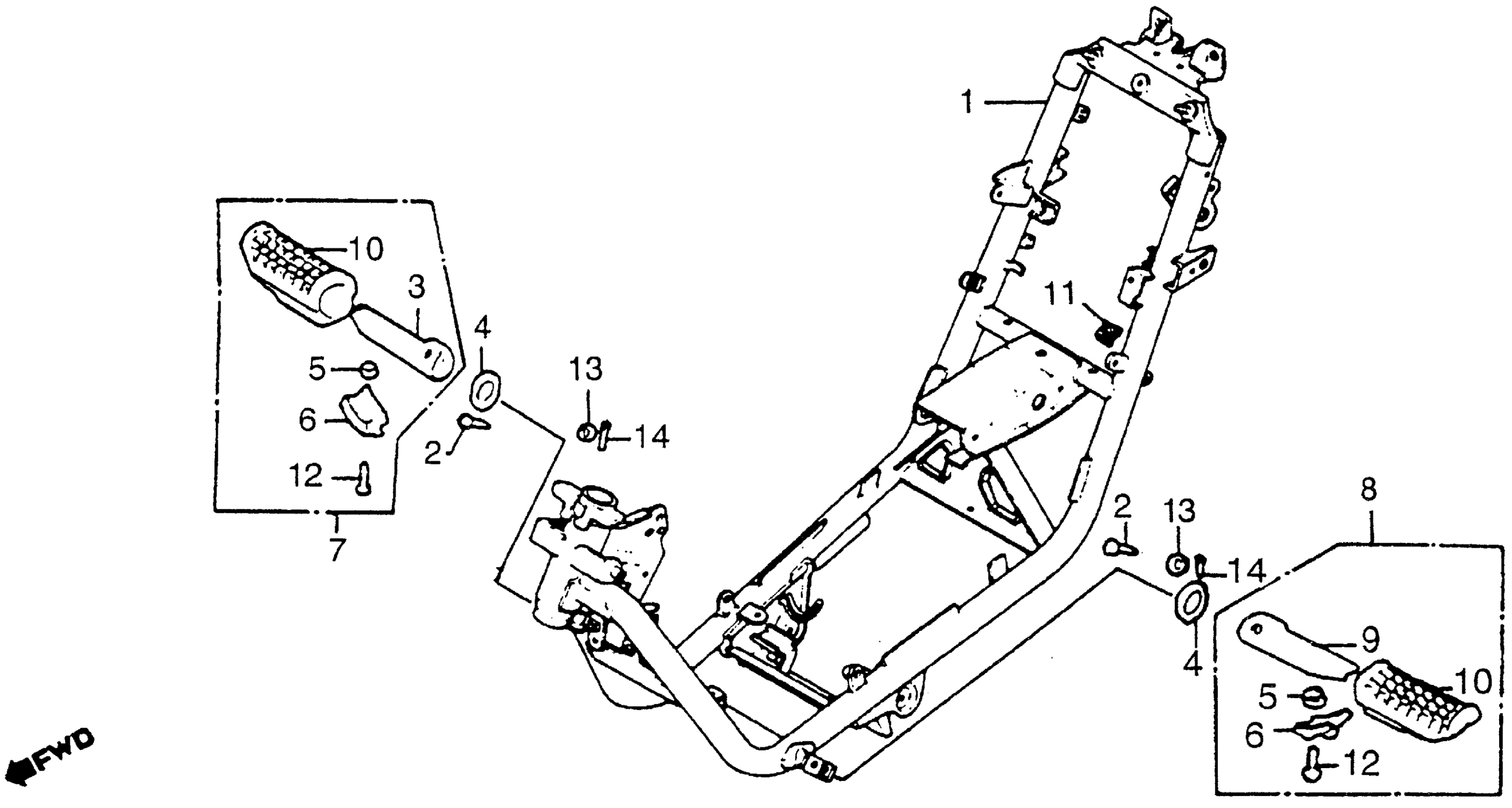

Honda TG50A (86) GYRO S, JPN, VIN# JH2TB100-GS000009 FRAME + FOOTPEG Diagram

#

Description
Price

1

FRAME *R110* (MONZA RED)

50100-GM8-670ZB

Unavailable

2

PIN, MAIN STEP BAR JOINT This part replaces 50603-KK4-000.

50603-KR0-010

$4.52

2

PIN, MAIN STEP BAR JOINT This part replaces 50603-KR0-000.

50603-KR0-010

$4.52

2

PIN, MAIN STEP BAR JOINT

50603-KR0-010

$4.52

3

BAR, R. MAIN STEP

50612-KE8-000

Unavailable

4

PLATE, MAIN STEP SIDE

50614-KE8-000

$4.52

5

COLLAR (6.5X11X3)

50618-KE8-000

$2.75

6

PLATE, MAIN FOOTPEG (LOWER)

50619-KG4-000

Unavailable

7

BAR ASSY., R. MAIN FOOTPEG

50630-KK4-000

Unavailable

8

BAR ASSY., L. MAIN FOOTPEG

50640-KK4-000

Unavailable

9

BAR, L. MAIN STEP

50643-KE8-000

$18.30

10

RUBBER, MAIN STEP

50661-KE7-000

Unavailable

11

CLIP, CABLE (A)

90681-959-003

Unavailable

12

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

12

BOLT, HEX. (6X12) This part replaces 92000-06012-0A.

92101-06012-0A

$1.49

12

BOLT, HEX. (6X12) This part replaces 92000-06012-1A.

92101-06012-0A

$1.49

12

BOLT, HEX. (6X12) This part replaces 92100-06012.

92101-06012-0A

$1.49

12

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

12

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

13

WASHER, PLAIN (8MM)

94102-08700

$1.49

14

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

14

PIN, COTTER (1.6X25)

94201-16250

$1.49
