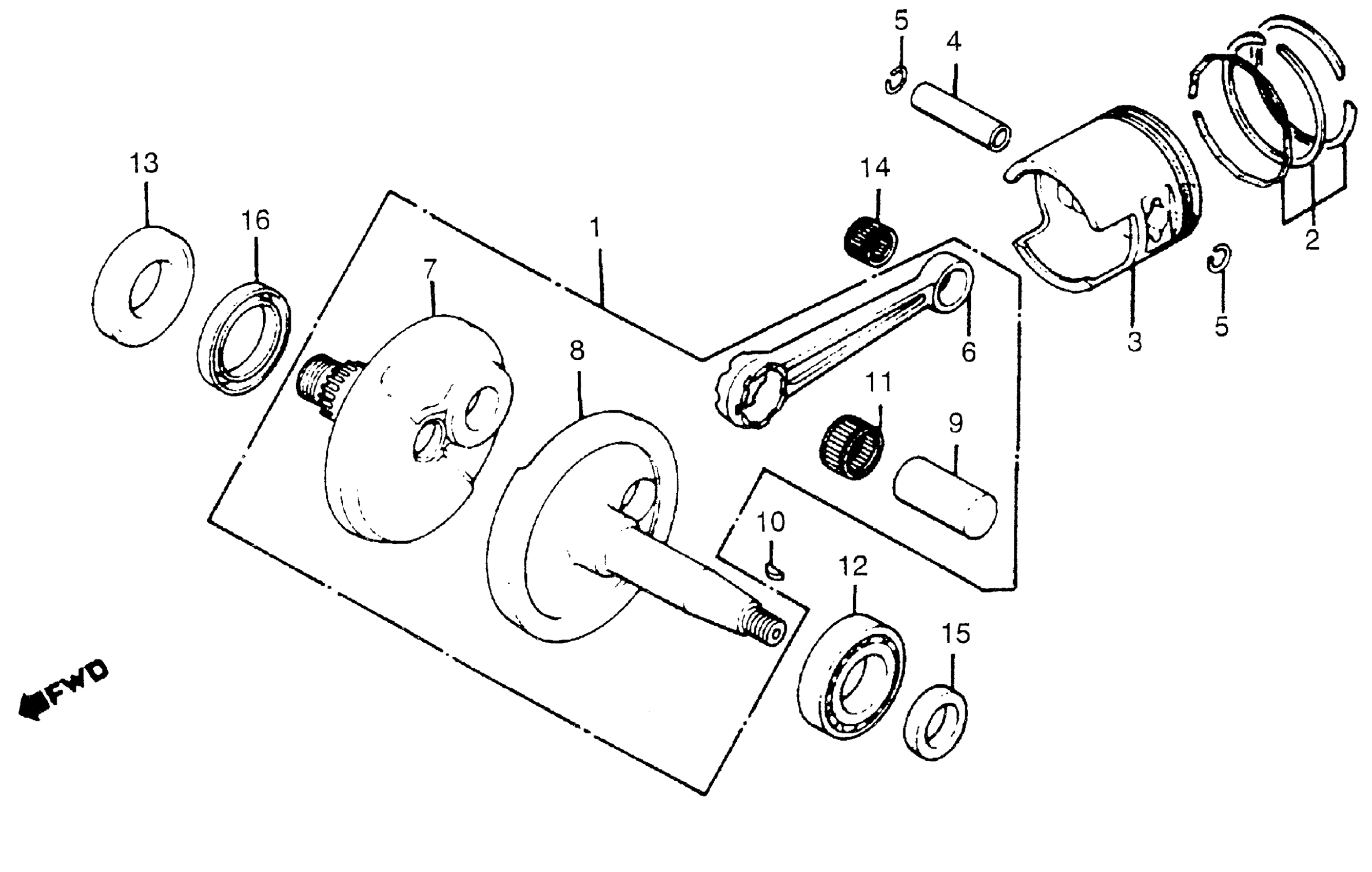

Honda TG50A (86) GYRO S, JPN, VIN# JH2TB100-GS000009 CRANKSHAFT + PISTON Diagram

#

Description
Price

1

CRANKSHAFT (NOT AVAILABLE)

13000-GJ5-020

Unavailable

2

RING SET, PISTON (STD) (TEIKOKU) This part replaces 13010-GJ5-003.

13010-GJ5-015

Unavailable

2

RING SET, PISTON (STD) (TEIKOKU) This part replaces 13010-GJ5-005.

13010-GJ5-015

Unavailable

2

RING SET, PISTON (STD) (TEIKOKU)

13010-GJ5-015

Unavailable

3

PISTON (STD)

13101-GJ5-000

$44.38

4

PIN, PISTON

13111-GC7-000

Unavailable

4

PIN, PISTON This part replaces 13111-GJ2-000.

13111-GC7-000

Unavailable

5

CLIP, PISTON PIN (10MM)

13115-147-000

$2.11

6

ROD, CONNECTING

13201-GJ5-300

Unavailable

7

CRANKSHAFT, R.

13310-GJ5-310

Unavailable

8

CRANKSHAFT, L.

13321-GJ5-320

Unavailable

9

PIN, CRANK (NOT AVAILABLE)

13381-GM8-300

Unavailable

10

KEY, WOODRUFF (3MM)

90741-035-000

$4.19

11

BEARING, CONNECTING ROD BIG END (RED)

91001-GJ5-003

Unavailable

11

BEARING, CONNECTING ROD BIG END (RED) This part replaces 91001-GJ5-004.

91001-GJ5-003

Unavailable

11

BEARING, CONNECTING ROD BIG END (BLUE)

91002-GJ5-003

Unavailable

11

BEARING, CONNECTING ROD BIG END (BLUE) This part replaces 91002-GJ5-004.

91002-GJ5-003

Unavailable

11

BEARING, CONNECTING ROD BIG END (WHITE) (NOT AVAILABLE)

91003-GJ5-003

Unavailable

11

BEARING, CONNECTING ROD BIG END (WHITE) (NOT AVAILABLE) This part replaces 91003-GJ5-004.

91003-GJ5-003

Unavailable

12

BEARING, RADIAL BALL RSH (6203)

91003-HA7-672

$26.81

12

BEARING, RADIAL BALL RSH (6203) This part replaces 91004-GM8-003.

91003-HA7-672

$26.81

12

BEARING, RADIAL BALL RSH (6203) This part replaces 91004-GM8-004.

91003-HA7-672

$26.81

13

BEARING, RADIAL BALL (16004) (TOYO) (NOT AVAILABLE)

91005-GM8-003

Unavailable

13

BEARING, RADIAL BALL (16004) (TOYO) (NOT AVAILABLE) This part replaces 91005-GM8-004.

91005-GM8-003

Unavailable

14

BEARING, CONNECTING ROD SMALL END (TOYO)

91102-GC7-013

$14.00

15

OIL SEAL (15X25.5X7) This part replaces 91201-147-003.

91201-GW2-000

$3.86

16

OIL SEAL (25X42X6) (NOT AVAILABLE)

91202-GJ5-004

Unavailable
