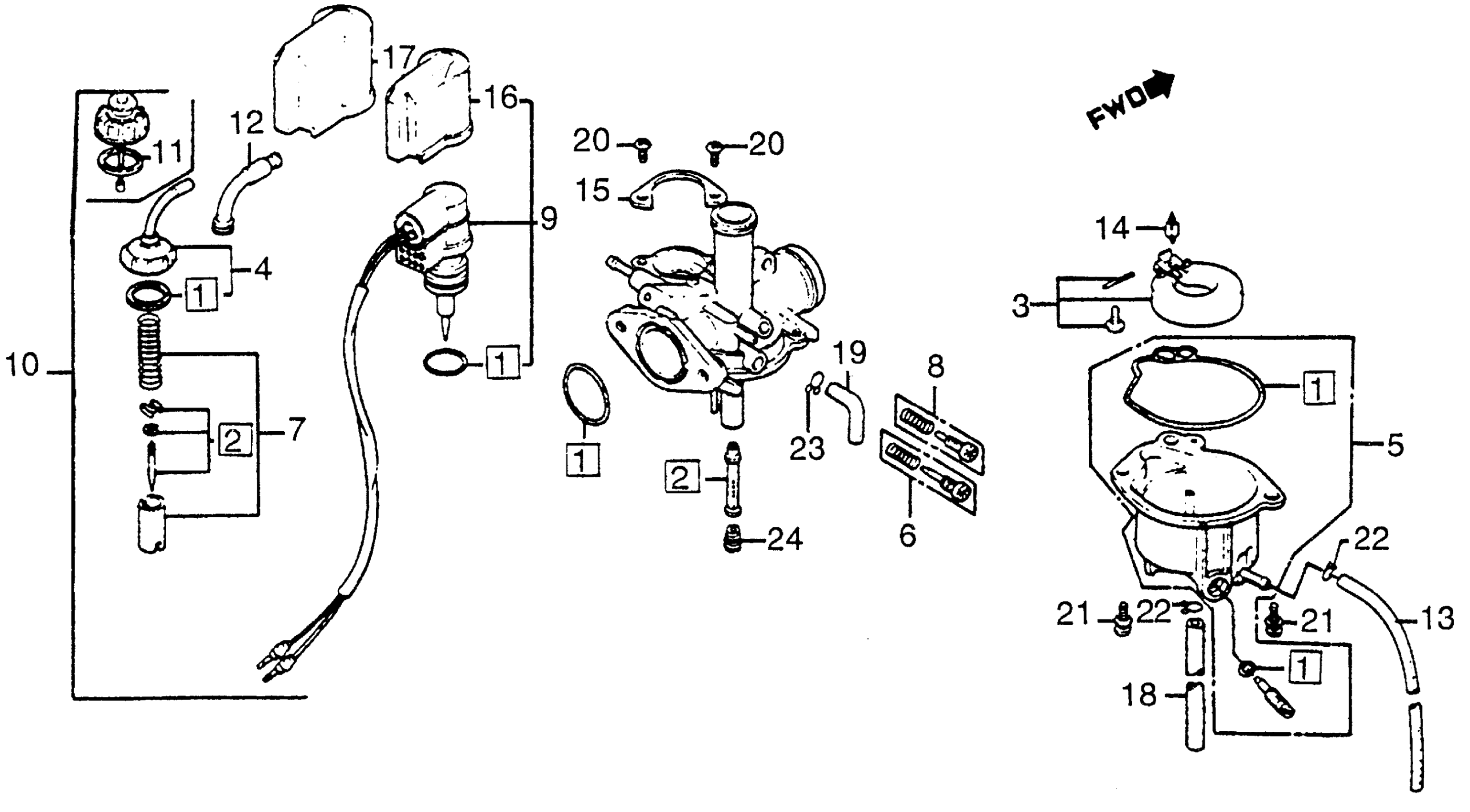

Honda TG50A (86) GYRO S, JPN, VIN# JH2TB100-GS000009 CARBURETOR Diagram

#

Description
Price

1

GASKET SET This part replaces 16010-GJ2-004.

16010-GY3-515

$10.37

2

NEEDLE SET, JET

16012-GM8-671

Unavailable

3

FLOAT SET

16013-147-004

$40.06

5

CHAMBER SET, FLOAT

16015-GM8-671

Unavailable

6

SCREW SET

16016-197-004

Unavailable

7

VALVE SET, THROTTLE

16022-GJ5-003

Unavailable

8

SCREW SET B

16028-GC8-004

$14.69

8

SCREW SET B This part replaces 16028-187-003.

16028-GC8-004

$14.69

9

VALVE SET, STARTER This part replaces 16046-GM8-671.

16046-GM8-672

Unavailable

10

CARBURETOR ASSY. This part replaces 16100-GM8-772.

16100-GM8-773

Unavailable

11

GASKET, TOP

16110-GN2-871

Unavailable

13

TUBE, FUEL This part replaces 16143-469-004.

16199-KG4-405

$8.51

13

TUBE, FUEL This part replaces 16198-HC0-405.

16199-KG4-405

$8.51

14

VALVE, FLOAT

16155-168-681

Unavailable

15

PLATE, SET

16186-GJ2-004

Unavailable

16

CAP, HOLDER This part replaces 16190-GJ2-004.

16190-GR1-003

Unavailable

17

CAP B, HOLDER

16191-GR1-003

Unavailable

18

TUBE, AIR VENT (150MM)

16195-195-731

Unavailable

19

TUBE, AIR VENT

16199-GC7-004

Unavailable

20

SCREW-WASHER (4X8)

93892-04008-08

$1.04

21

SCREW-WASHER (4X12)

93892-04012-08

$0.58

22

CLIP, TUBE (B7)

95002-02070

$1.59

23

CLIP, TUBE (B6.5)

95002-02650

$1.35

24

JET, MAIN (#75)

99101-187-0750

Unavailable
