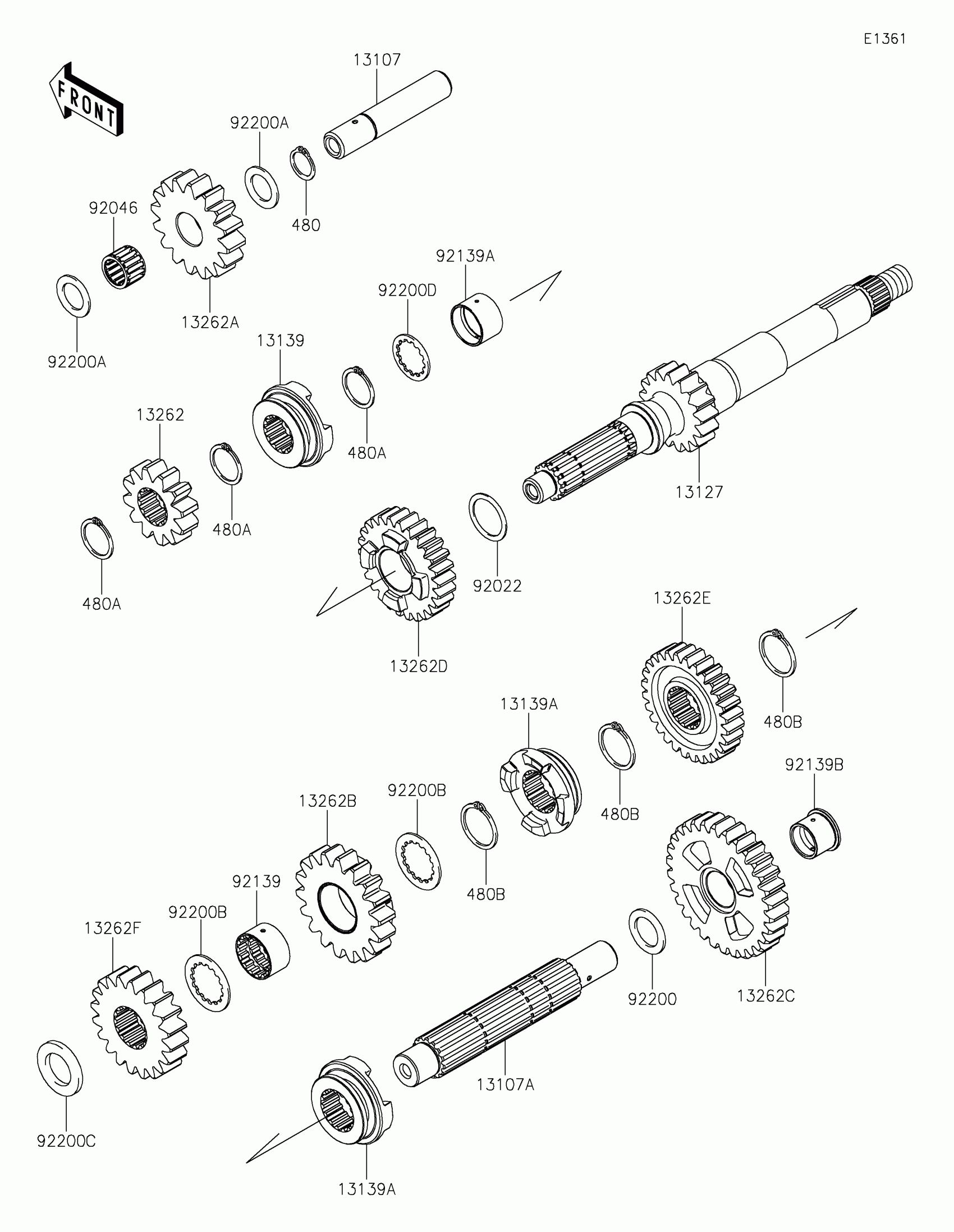

Kawasaki TERYX4™ Transmission Diagram
#
Description
Price
13107
SHAFT,REVERSE
13107-0715
$47.72
13107A
SHAFT,COUNTER
13107-0716
$103.31
13127
SHAFT-TRANSMISSION INPUT,17T
13127-0654
$326.43
13139
SHIFTER,INPUT HI
13139-0624
$51.37
13139A
SHIFTER,OUTPUT
13139-0625
$53.53
13262
GEAR,INPUT REVERSE,12T
13262-0861
$71.76
13262A
GEAR,REVERSE IDLE,16T
13262-0862
$67.23
13262B
GEAR,OUTPUT REVERSE,18T
13262-0865
$112.82
13262C
GEAR,OUTPUT LOW,31T
13262-0867
$100.90
13262D
GEAR,INPUT HI,26T
13262-1551
$97.59
13262E
GEAR,OUTPUT HI,28T
13262-1552
$72.75
13262F
GEAR,OUTPUT,19T
13262-1553
$128.28
92022
WASHER,25.3X32X1
92022-1800
$5.00
92046
BEARING-NEEDLE,182216E03 C3
92046-0605
$15.90
92139
BUSHING,25X28.3X16.7
92139-0107
$26.91
92139A
BUSHING,25X28X17.8
92139-0280
$34.79
92139B
BUSHING,20X24X18.7
92139-0707
$26.65
92200
WASHER,20.2X30X1.8
92200-0221
$3.90
92200A
WASHER,18.2X28X1.5
92200-0716
$3.02
92200B
WASHER,28.5X38X1.5
92200-0717
$3.74
92200C
WASHER,22.2X36X3.6
92200-0718
$8.58
92200D
WASHER,25.2X31.0X1.5
92200-1239
$7.84
480
CIRCLIP-TYPE-C,18MM
480J1800
$1.28
480A
CIRCLIP-TYPE-C,24MM
480J2400
$6.32
480B
CIRCLIP-TYPE-C,28MM
480J2800
$4.70
