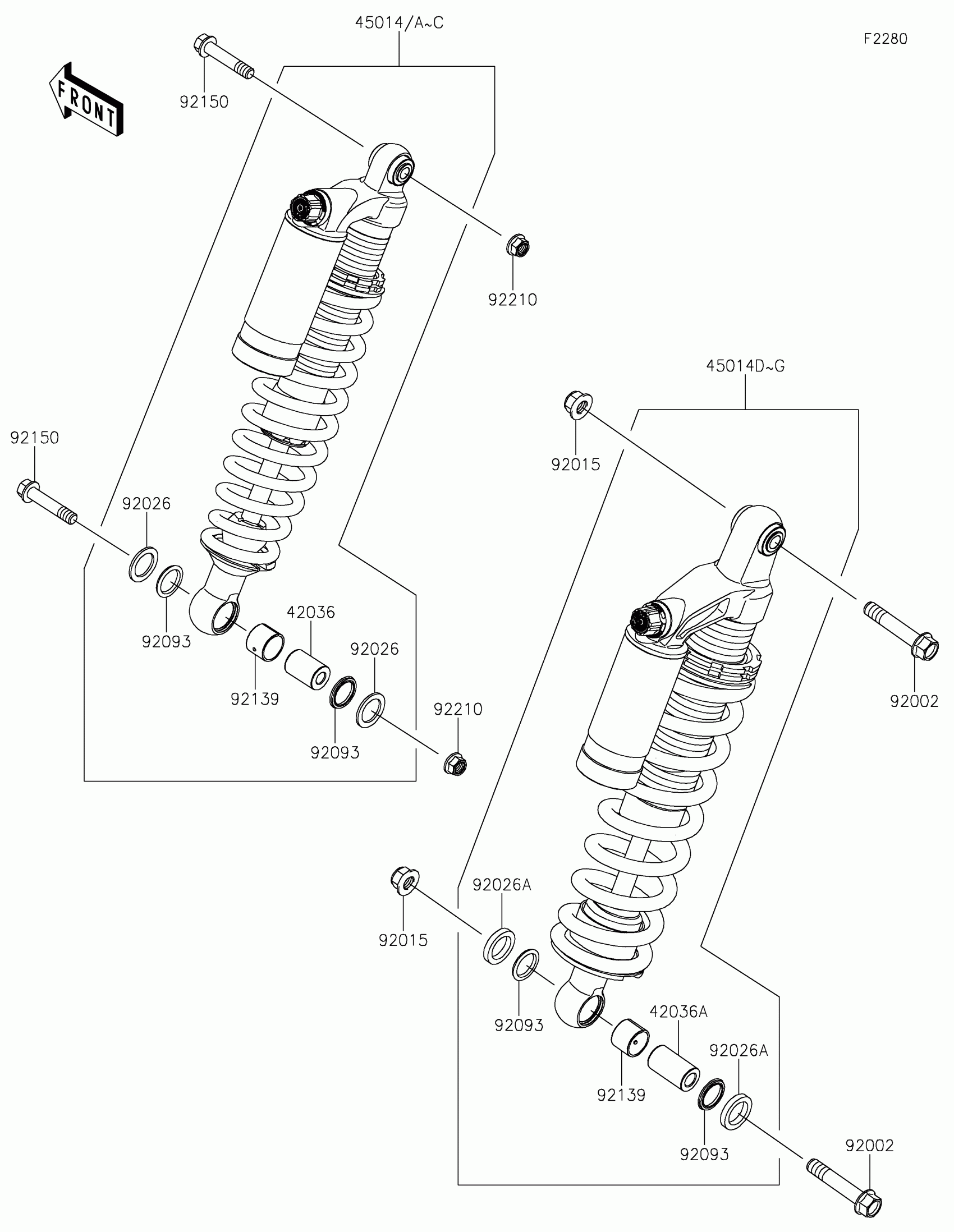

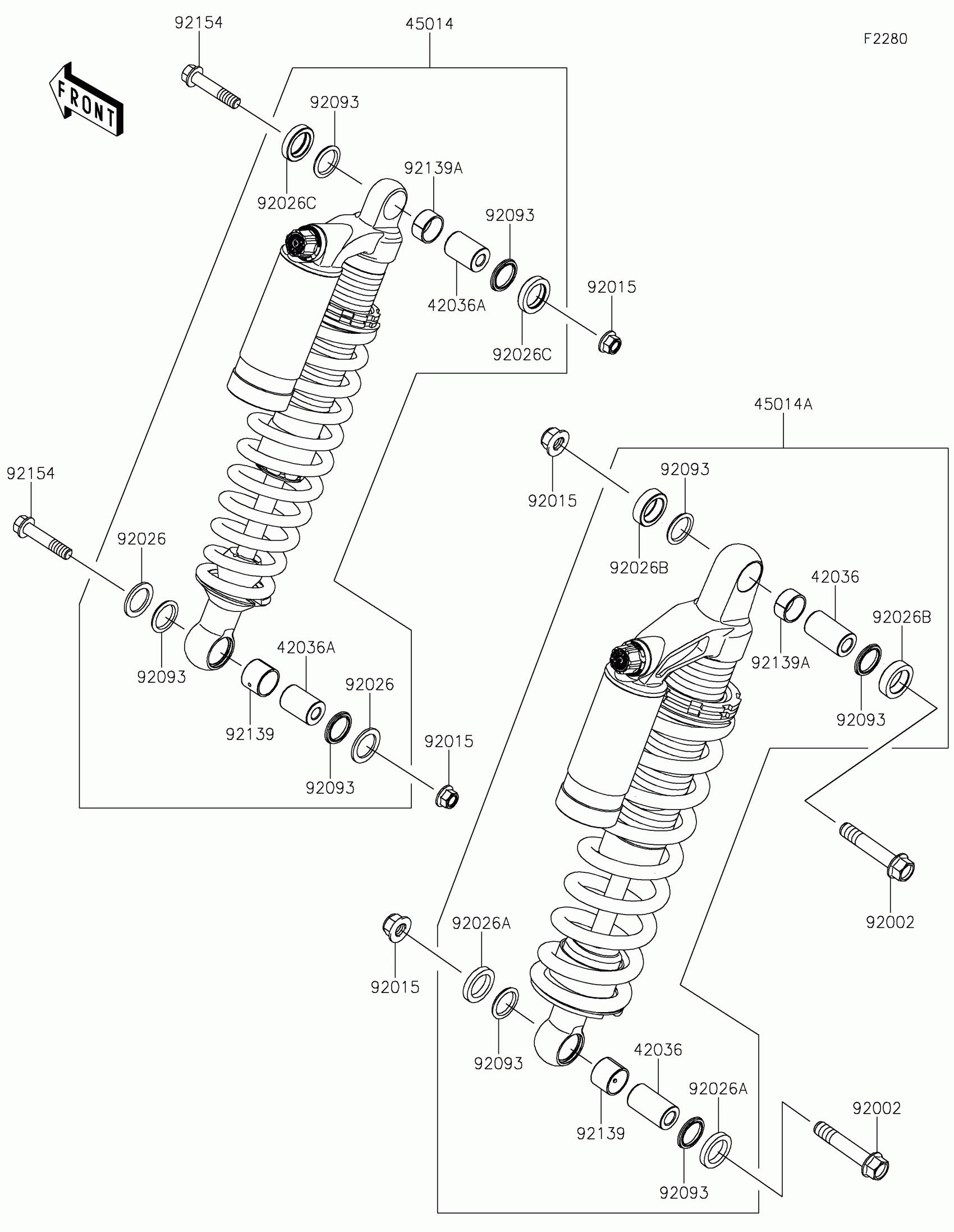

Kawasaki TERYX4™ Shock Absorber(s) Diagram

Description

Price

42036

SLEEVE

42036-0772

$15.23

42036A

SLEEVE

42036-0773

$14.68

45014B

SHOCKABSORBER,FR,C.B.ORANGE

45014-0486-42M

$895.93

45014C

SHOCKABSORBER,FR,SILVER

45014-0486-42P

$895.93

45014F

SHOCKABSORBER,RR,C.B.ORANGE

45014-0487-42M

$702.36

45014G

SHOCKABSORBER,RR,SILVER

45014-0487-42P

$702.36

92002

BOLT,ROD,12MM

92002-1757

$12.71

92015

NUT,LOCK,FLANGED,12MM

92015-1433

$8.86

92026

SPACER

92026-0793

$3.08

92026A

SPACER

92026-0794

$3.08

92093

SEAL

92093-0609

$2.94

92139

BUSHING

92139-0809

$10.34

92150

BOLT,FLANGED,10X50

92150-1125

$7.34

92210

NUT,LOCK,FLANGED,10MM

92210-1080

$10.28
