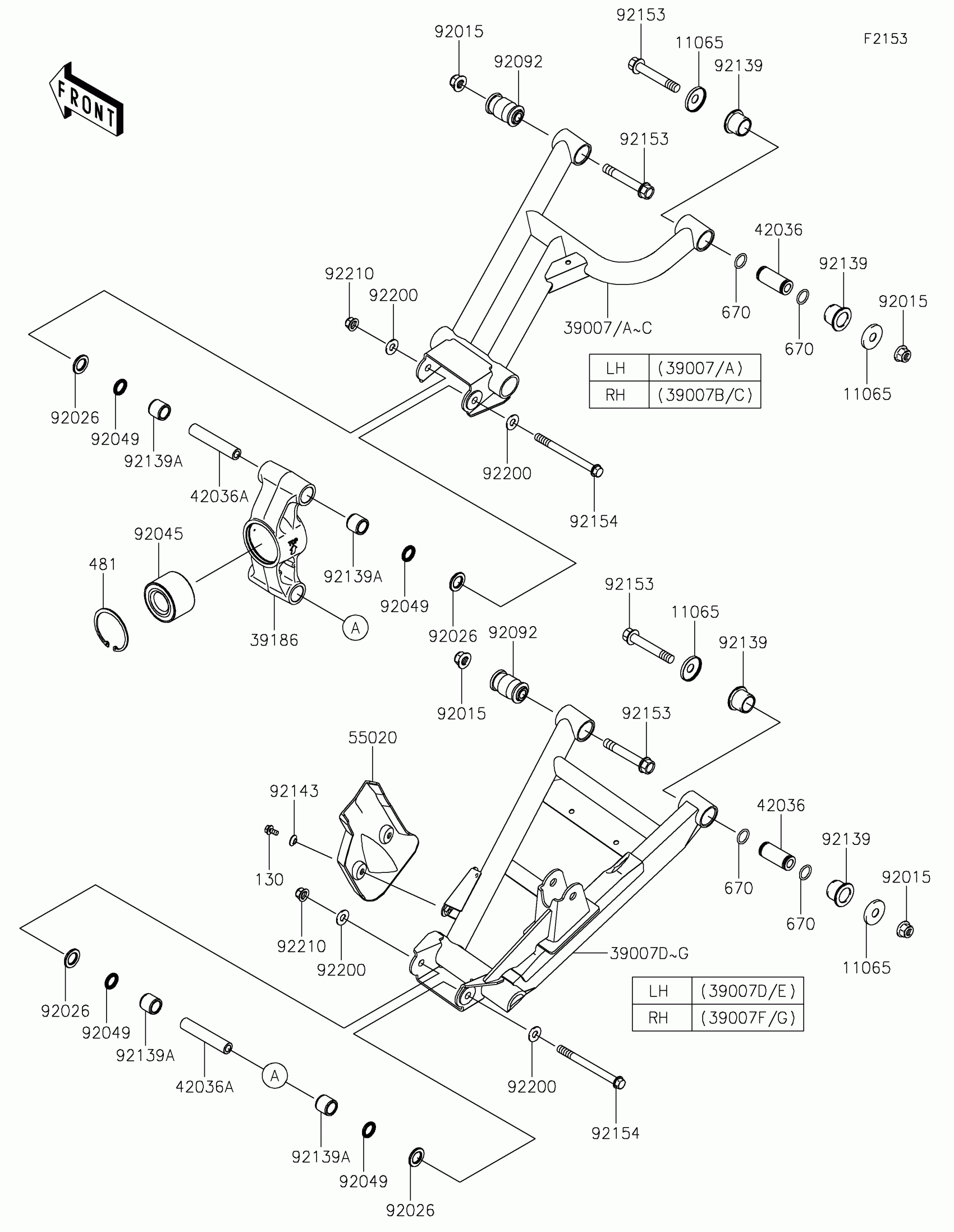

Kawasaki Teryx4 S Special Edition Rear Suspension Diagram

Description

Price

11065

CAP

11065-0253

$3.87

39007

ARM-SUSP,RR,UPP,LH,P.C.L.GREEN

39007-0449-42Q

$151.56

39007B

ARM-SUSP,RR,UPP,RH,P.C.L.GREEN

39007-0450-42Q

$151.56

39007D

ARM-SUSP,RR,LWR,LH,P.C.L.GREEN

39007-0451-42Q

$162.90

39007F

ARM-SUSP,RR,LWR,RH,P.C.L.GREEN

39007-0452-42Q

$162.90

39186

KNUCKLE,RR

39186-0316

$159.14

42036

SLEEVE

42036-0062

$23.84

42036A

SLEEVE,10X17X88

42036-0710

$15.50

55020

GUARD,REAR ARM

55020-0805

$13.79

92015

NUT,LOCK,FLANGED,12MM

92015-1433

$8.86

92026

SPACER,17X28.6X3

92026-0746

$3.26

92045

BEARING-BALL,30X62X40

92045-0801

$100.71

92049

SEAL-OIL,17X24X3

92049-0726

$7.58

92092

BUSHING-RUBBER

92092-0555

$19.13

92139

BUSHING

92139-0231

$7.69

92139A

BUSHING,17X24X21.5

92139-0736

$14.49

92143

COLLAR

92143-1087

$4.31

92153

BOLT,FLANGED,12X76.5

92153-1733

$7.75

92154

BOLT,FLANGED,10X117

92154-0743

$9.17

92200

WASHER,10.3X23X1.6

92200-2009

$1.35

92210

NUT,LOCK,FLANGED,10MM

92210-1080

$10.28

130

BOLT-FLANGED,6X12

130BA0612

$1.72

481

CIRCLIP

481J6200

$11.39

670

O RING,18MM

670B2018

$1.42
