2025 Kawasaki Teryx4 S Special Edition Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 2025 Kawasaki Teryx4 S Special Edition, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

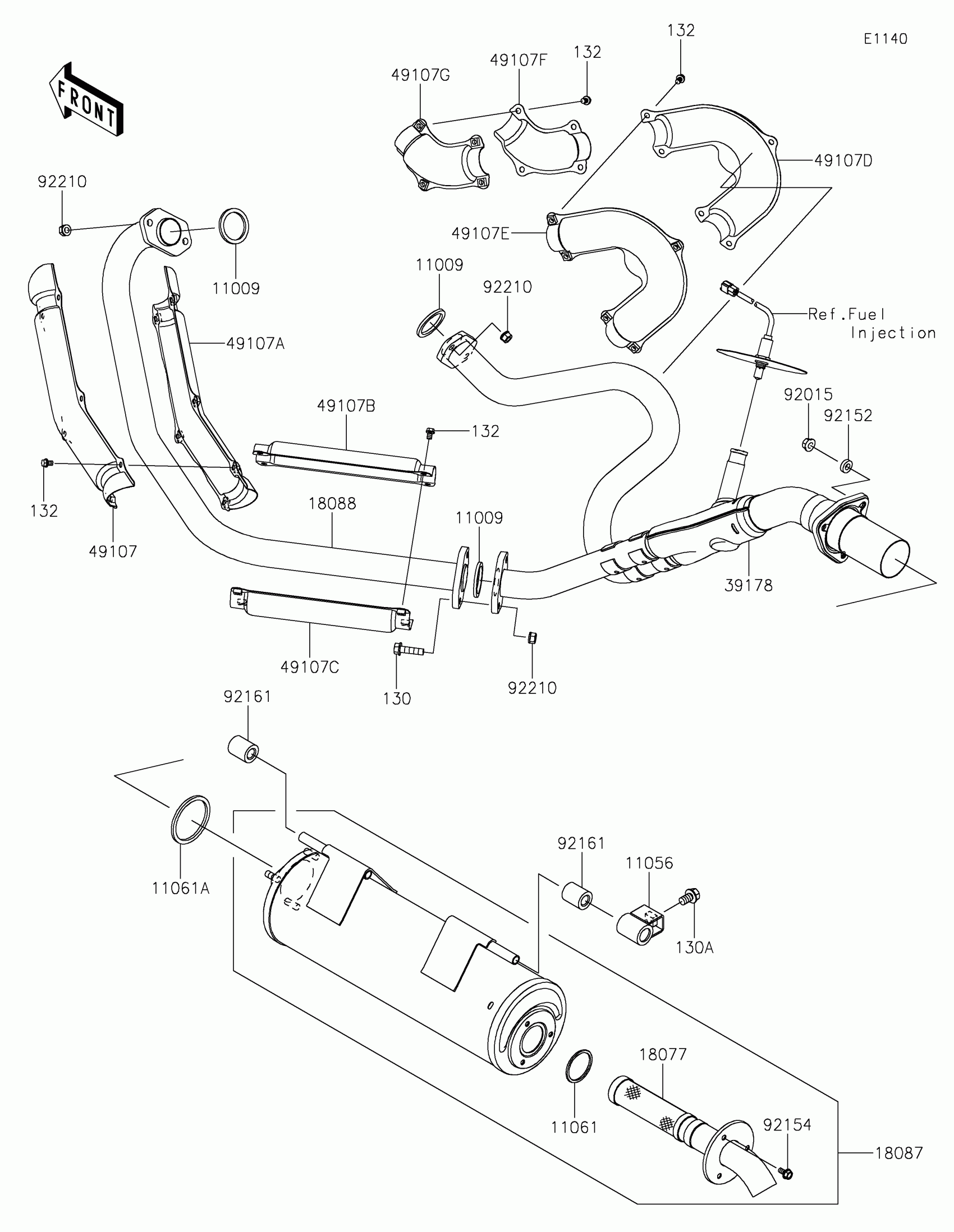

2025 Kawasaki Teryx4 S Special Edition Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,EXHAUST PIPE

11009-1992

1

$6.23

In stock

11056

BRACKET

11056-0727

1

$22.24

In stock

11061

1

$6.05

In stock

11061A

GASKET,PIPE-MUFFLER

11061-0811

1

$6.97

In stock

18077

ARRESTER-SPARK

18077-0036

1

$172.15

In stock

18087

MUFFLER

18087-0326

1

$733.29

In stock

18088

PIPE-EXHAUST

18088-0837

1

$363.35

In stock

39178

1

$1,225.23

In stock

49107

1

$20.98

In stock

49107A

1

$32.45

In stock

49107B

1

$13.15

In stock

49107C

1

$17.90

In stock

49107D

1

$17.07

In stock

49107E

1

$25.02

In stock

49107F

1

$17.07

In stock

49107G

1

$17.07

In stock

92015

NUT,8MM

92015-1402

1

$3.72

In stock

92152

COLLAR,8.2X17X4.5

92152-1609

1
Out of stock

92154

BOLT,FLANGED,6X12

92154-0852

1

$1.10

In stock

92161

DAMPER

92161-0961

1

$22.49

In stock

92210

NUT,8MM

92210-1242

1
Out of stock

130

BOLT-FLANGED,8X30

130BD0830

1

$1.66

In stock

130A

BOLT-FLANGED,10X16

130CA1016

1

$2.68

In stock

132

1

$2.71

In stock
