2025 Kawasaki Teryx4 S Special Edition Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 2025 Kawasaki Teryx4 S Special Edition, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

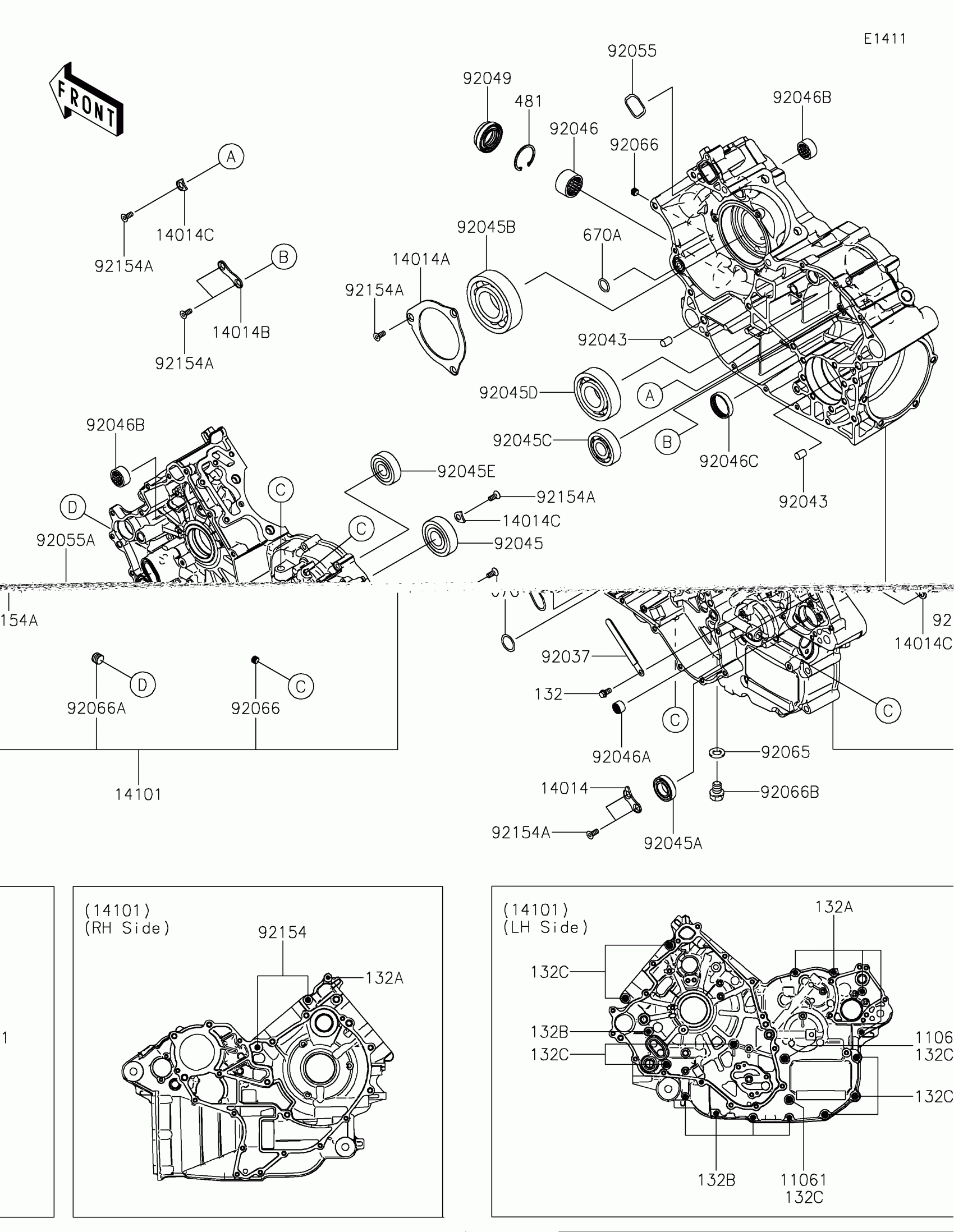

2025 Kawasaki Teryx4 S Special Edition Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,8.2X15

11061-0727

1
Out of stock

14014

PLATE-POSITION

14014-0553

1

$4.95

In stock

14014A

PLATE-POSITION

14014-0554

1

$24.95

In stock

14014B

PLATE-POSITION

14014-0555

1

$4.95

In stock

14014C

PLATE-POSITION

14014-0557

1

$3.29

In stock

14101

SET-CRANKCASE

14101-0026

1
Out of stock

92037

CLAMP

92037-1993

1
Out of stock

92043

PIN,10X14

92043-1506

1
Out of stock

92045

BEARING-BALL,63/22LUA

92045-0704

1
Out of stock

92045A

BEARING-BALL,6904

92045-0705

1
Out of stock

92045B

BEARING-BALL,6308YA3-T2C3

92045-0706

1
Out of stock

92045C

BEARING-BALL,TMB304LUA

92045-0743

1
Out of stock

92045D

BEARING-BALL,63/32C3

92045-1364

1
Out of stock

92045E

BEARING-BALL,6303LUA

92045-1389

1
Out of stock

92046

BEARING-NEEDLE

92046-0022

1
Out of stock

92046A

BEARING-NEEDLE,HK1210FM

92046-0034

1
Out of stock

92046B

BEARING-NEEDLE,BA13178ZE01

92046-0048

1
Out of stock

92046C

BEARING-NEEDLE,7E-HKS33X38X8

92046-1221

1
Out of stock

92049

SEAL-OIL,25X45X9.5

92049-0739

1
Out of stock

92055

RING-O,33X2.6

92055-0723

1
Out of stock

92055A

RING-O,31.2X2.4

92055-0724

1
Out of stock

92065

GASKET,12X22X2

92065-097

1
Out of stock

92066

PLUG,PT1/8X7

92066-0863

1
Out of stock

92066A

PLUG,BREATHER

92066-1035

1
Out of stock

92066B

PLUG,OIL DRAIN,12X15

92066-1174

1
Out of stock

92154

BOLT,FLANGED,8X95

92154-0835

1
Out of stock

92154A

BOLT,TORX,6X11.7

92154-1821

1
Out of stock

132

1

$1.12

In stock

132A

1

$4.16

In stock

132B

1

$4.46

In stock

132C

1

$2.53

In stock

481

CIRCLIP-TYPE-C,37MM

481J3700

1
Out of stock

670

O RING,22MM

670B2022

1
Out of stock

670A

O RING,16MM

670D2016

1
Out of stock
