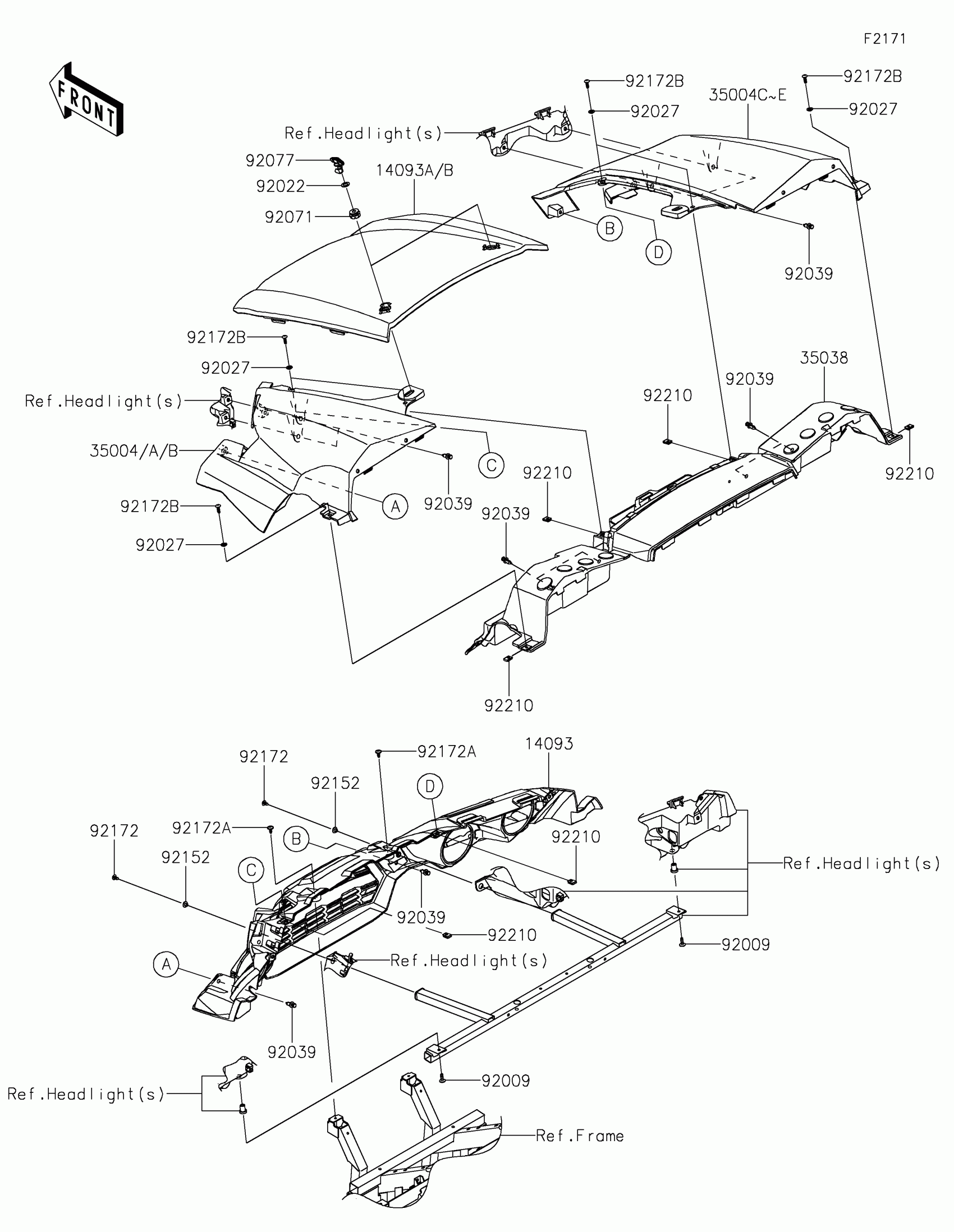

Kawasaki Teryx4 S Special Edition Front Fender(s) Diagram

Description

Price

14093

COVER,FR GRILL

14093-0202

$203.24

14093B

COVER,HOOD,EBONY

14093-0211-H8

$205.67

35004

FENDER-FRONT,LH,C.L.GREEN

35004-0346-57A

$189.11

35004C

FENDER-FRONT,RH,C.L.GREEN

35004-0347-57A

$189.11

35038

FENDER-FRONT,RR

35038-0032

$58.75

92009

SCREW,6X20

92009-1289

$4.31

92022

WASHER,12.5X22X1.2

92022-072

$3.92

92027

COLLAR

92027-4020

$4.65

92039

RIVET

92039-0776

$1.19

92071

GROMMET

92071-0746

$1.16

92077

KNOB

92077-0033

$3.04

92152

COLLAR,6.3X8.3X7.2

92152-1865

$1.19

92172

SCREW,TAPPING,6X16

92172-0739

$0.85

92172A

SCREW,6X16

92172-0826

$2.26

92172B

SCREW,TAPPING,6X20

92172-0883

$2.26

92210

NUT,LEAF SPRING,6MM

92210-0624

$2.32
