Front Bevel Gear

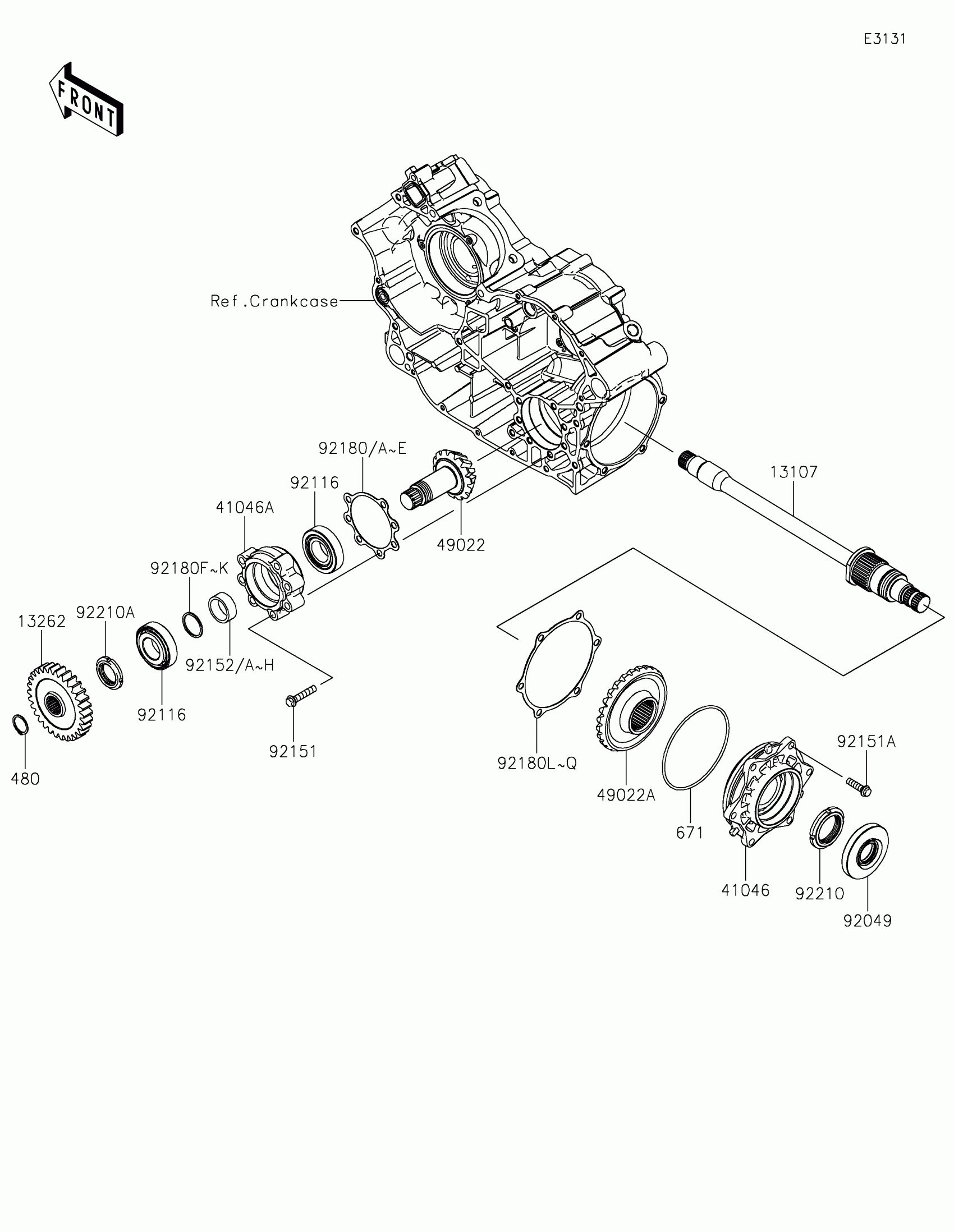

Kawasaki Teryx4 S Special Edition Front Bevel Gear Diagram
#
13107
SHAFT,OUTPUT
13107-0766
$238.06
13262
GEAR,OUTPUT,30T
13262-1142
$128.00
41046
HOUSING-BEARING,DRIVEN
41046-0026
$162.55
41046A
HOUSING-BEARING,DRIVE
41046-0040
$44.91
49022
GEAR-BEVEL,PINION,14T
49022-0602
$276.20
49022A
GEAR-BEVEL,DRIVEN,27T
49022-0603
$215.60
92049
SEAL-OIL
92049-0712
$17.65
92116
BEARING-ROLLER,HR30206JUQU42
92116-0568
$36.20
92151
BOLT,8X40
92151-1621
$2.67
92151A
BOLT-FLANGED-SMALL,8X30
92151-1688
$2.80
92152
COLLAR,30.2X37X13.1
92152-0947
Unavailable
92152A
COLLAR,30.2X37X13.2
92152-0948
Unavailable
92152B
COLLAR,30.2X37X13.3
92152-0949
Unavailable
92152C
COLLAR,30.2X37X13.4
92152-0950
Unavailable
92152D
COLLAR,30.2X37X13.5
92152-0951
Unavailable
92152E
COLLAR,30.2X37X13.6
92152-0952
Unavailable
92152F
COLLAR,30.2X37X13.7
92152-0953
$21.48
92152G
COLLAR,30.2X37X13.8
92152-0954
Unavailable
92152H
COLLAR,30.2X37X13.9
92152-0955
Unavailable
92180
SHIM,DRIVE,T=0.15
92180-0702
Unavailable
92180A
SHIM,DRIVE,T=0.20
92180-0703
Unavailable
92180B
SHIM,DRIVE,T=0.50
92180-0704
Unavailable
92180C
SHIM,DRIVE,T=0.80
92180-0705
Unavailable
92180D
SHIM,DRIVE,T=1.0
92180-0706
$10.60
92180E
SHIM,DRIVE,T=1.2
92180-0707
Unavailable
92180F
SHIM,DRIVE,T=1.70
92180-0708
Unavailable
92180G
SHIM,DRIVE,T=1.72
92180-0709
Unavailable
92180H
SHIM,DRIVE,T=1.74
92180-0710
Unavailable
92180I
SHIM,DRIVE,T=1.76
92180-0711
Unavailable
92180J
SHIM,DRIVE,T=1.78
92180-0712
$9.73
92180K
SHIM,DRIVE,T=1.80
92180-0713
Unavailable
92180L
SHIM,DRIVEN,T=0.15
92180-0714
Unavailable
92180M
SHIM,DRIVEN,T=0.20
92180-0715
Unavailable
92180N
SHIM,DRIVEN,T=0.50
92180-0716
Unavailable
92180O
SHIM,DRIVEN,T=0.80
92180-0717
Unavailable
92180P
SHIM,DRIVEN,T=1.0
92180-0718
$15.80
92180Q
SHIM,DRIVEN,T=1.2
92180-0719
Unavailable
92210
NUT,40MM
92210-1893
$86.80
92210A
NUT
92210-1915
$49.33
480
CIRCLIP-TYPE-C,24MM
480J2400
$6.32
671
O RING,115MM
671D25115
$6.63
