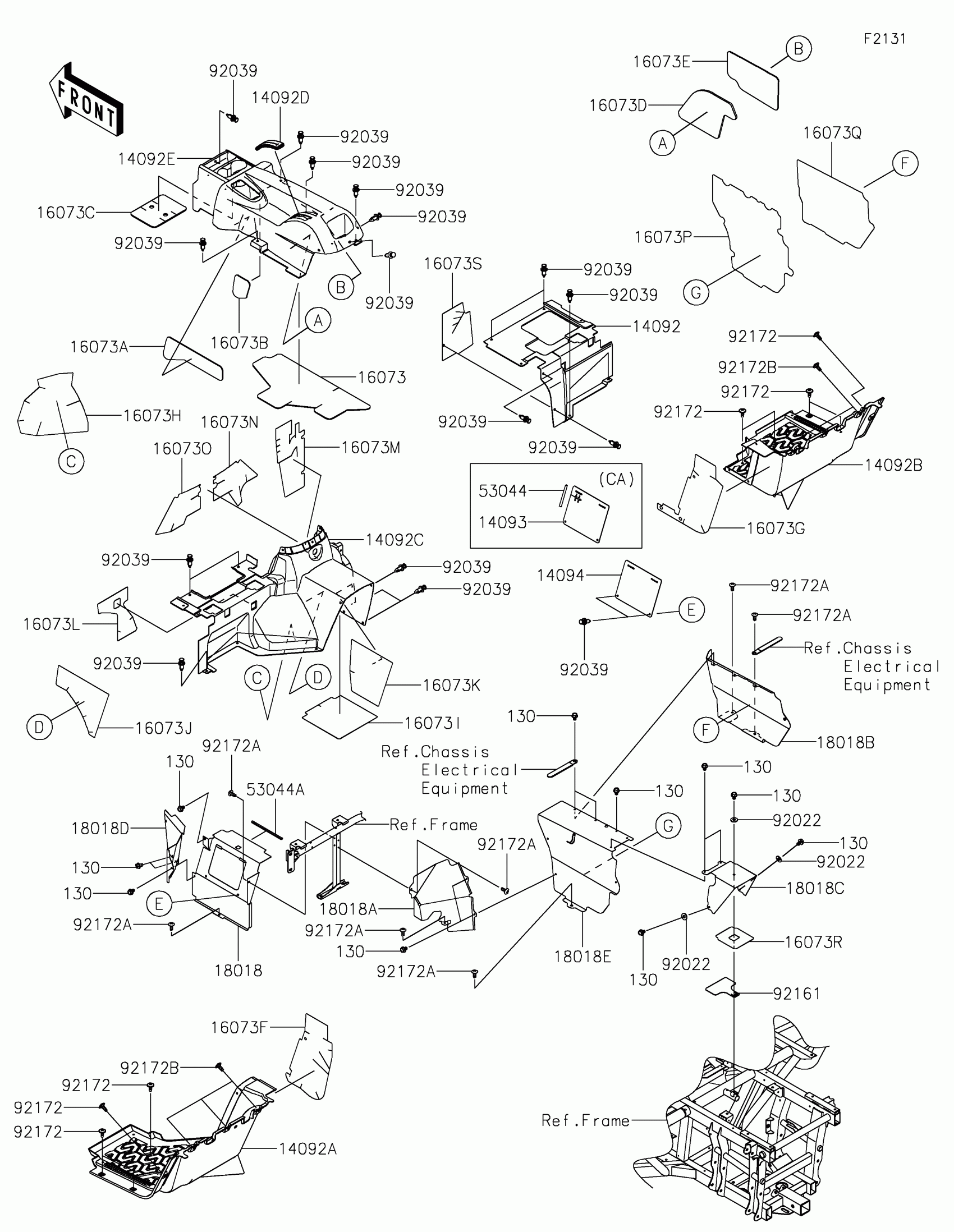

Kawasaki Teryx4 S Special Edition Frame Fittings(Rear) Diagram

#

Description
Price

14092

COVER,FR SEAT,RR,RH

14092-0714

$26.15

14092A

COVER,RR FLOOR,LH

14092-0718

$53.20

14092B

COVER,RR FLOOR,RH

14092-0719

$53.20

14092C

COVER,FR SEAT,RR,LH

14092-0722

$64.63

14092D

COVER,CENTER CONSOLE,TOP

14092-0791

$6.92

14092E

COVER,CENTER CONSOLE

14092-1056

$81.44

14093

COVER,MAINTENANCE

14093-0560

$13.04

14094

COVER,MAINTENANCE

14094-0003

$13.04

16073

INSULATOR,CENTER CONSOLE

16073-0800

$81.03

16073A

INSULATOR,CENTER CONSOLE

16073-0801

$27.73

16073B

INSULATOR,CENTER CONSOLE

16073-0802

$13.60

16073C

INSULATOR,CENTER CONSOLE

16073-0803

$18.15

16073D

INSULATOR,CENTER CONSOLE

16073-0804

$56.12

16073E

INSULATOR,CENTER CONSOLE

16073-0805

$47.23

16073F

INSULATOR,RR FLOOR,LH

16073-0907

$10.88

16073G

INSULATOR,RR FLOOR,RH

16073-0908

$16.72

16073H

INSULATOR,FR SEAT,RR

16073-0909

$10.37

16073I

INSULATOR,FR SEAT,RR

16073-0910

$7.94

16073J

INSULATOR,FR SEAT,RR

16073-0911

$8.58

16073K

INSULATOR,FR SEAT,RR

16073-0912

$8.22

16073L

INSULATOR,FR SEAT,RR

16073-0913

$8.08

16073M

INSULATOR,FR SEAT,RR

16073-0914

$8.22

16073N

INSULATOR,FR SEAT,RR

16073-0915

$11.20

16073O

INSULATOR,FR SEAT,RR

16073-0916

$11.20

16073P

INSULATOR,RR TUNNEL,LH

16073-0919

$20.48

16073Q

INSULATOR,RR TUNNEL,RH

16073-0920

$12.92

16073R

INSULATOR,RR TUNNEL,RR

16073-0921

$2.55

16073S

INSULATOR,FR SEAT,RR

16073-0922

$6.93

18018

PLATE-HEAT GUARD,LH UD SEAT,FR

18018-0042

$67.06

18018A

PLATE-HEAT GUARD,LH UD SEAT,RR

18018-0043

$83.08

18018B

PLATE-HEAT GUARD,RR TUNNEL,RH

18018-0045

$58.91

18018C

PLATE-HEAT GUARD,RR TUNNEL,RR

18018-0047

$14.68

18018D

PLATE-HEAT GUARD,DRIVER

18018-0596

$57.64

18018E

PLATE-HEAT GUARD,RR TUNNEL,LH

18018-0599

$71.93

53044

TRIM

53044-0564

$7.24

53044A

TRIM,L=200

53044-0573

$8.30

92022

WASHER

92022-2247

$0.62

92039

RIVET

92039-0776

$1.19

92161

DAMPER,RR TUNNEL

92161-1577

$3.76

92172

SCREW,6X16

92172-0711

$3.02

92172A

SCREW,TAPPING,6X16

92172-0739

$0.85

92172B

SCREW,6X16

92172-0826

$2.26

130

BOLT-FLANGED,6X10

130AA0610

$0.49
