Drive Shaft-Rear

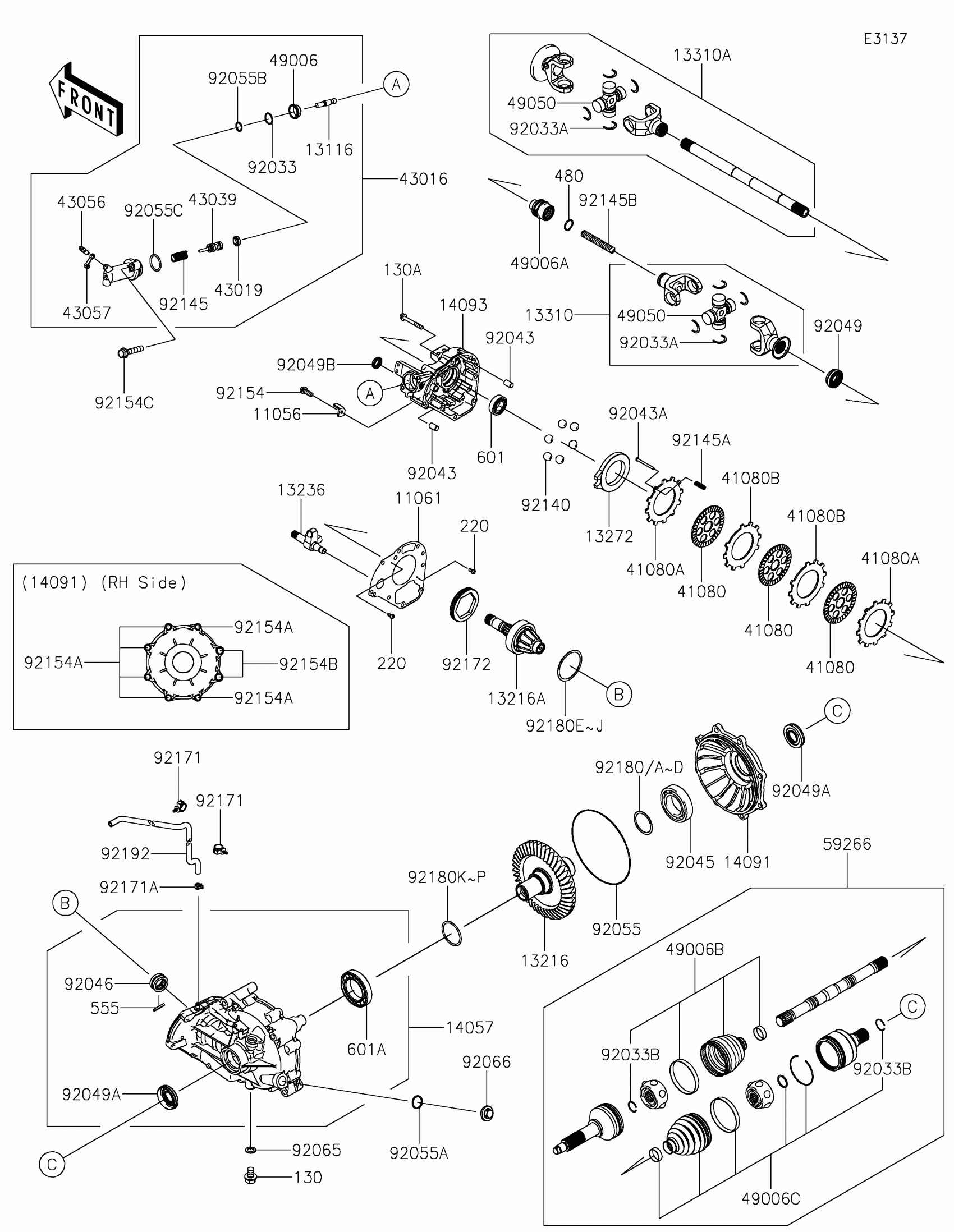

Kawasaki Teryx4 S Special Edition Drive Shaft-Rear Diagram
#
11056
BRACKET
11056-1447
$2.63
11061
GASKET,FR COVER
11061-0270
$31.86
13116
ROD-PUSH
13116-0026
$37.85
13216
GEAR-COMP,RING GEAR,44T
13216-0885
$327.67
13216A
GEAR-COMP,PINION,10T
13216-0886
$200.13
13236
LEVER-COMP,BRAKE
13236-0706
$96.51
13272
PLATE,CAM
13272-1203
$27.99
13310
SHAFT-ASSY,GEAR-ASSY SIDE
13310-0034
$323.67
13310A
SHAFT-ASSY,ENGINE SIDE
13310-0043
$377.13
14057
CASE-COMP-GEAR
14057-0019
$259.36
14091
COVER,RH
14091-0677
$133.34
14093
COVER,FR
14093-0428
$137.86
41080
DISC,FRICTION
41080-1482
$49.80
41080A
DISC,PRESSURE
41080-1483
$18.80
41080B
DISC,SEPARATER
41080-1484
$18.80
43016
CYLINDER-MASTER
43016-0556
$266.92
43019
CUP-BRAKE
43019-0002
$5.60
43039
PISTON-BRAKE
43039-0006
$41.96
43056
BREATHER-BRAKE
43056-1056
$14.30
43057
CAP-BREATHER
43057-1001
$4.91
49006
BOOT
49006-0072
$10.21
49006A
BOOT,GEAR ASSY SIDE
49006-0108
$6.54
49006B
BOOT,OUTSIDE
49006-0639
$94.97
49006C
BOOT,INSIDE
49006-0640
$94.97
49050
SPIDER
49050-0027
$115.74
59266
JOINT-BALL,RR,CVJ
59266-0746
$656.29
92033
RING-SNAP
92033-0055
$3.87
92033A
RING-SNAP
92033-0735
$1.47
92033B
RING-SNAP
92033-0839
$6.22
92043
PIN,8X14
92043-1567
$2.26
92043A
PIN,3X35
92043-1617
$2.41
92045
BEARING-BALL,6210CM
92045-1213
$55.61
92046
BEARING-NEEDLE,AH502802
92046-0024
$27.86
92049
SEAL-OIL,25X45X9.5
92049-0739
$13.49
92049A
SEAL-OIL
92049-0773
$16.84
92049B
SEAL-OIL,TC17X28X6
92049-1537
$11.81
92055
RING-O,190.2X4.2
92055-0121
$20.37
92055A
RING-O
92055-0122
$3.90
92055B
RING-O
92055-0146
$5.65
92055C
RING-O
92055-0147
$7.75
92065
GASKET,10.5X16X1
92065-058
$3.96
92066
PLUG
92066-1303
$12.96
92140
BALL,D/O#12
92140-1064
$2.39
92145
SPRING
92145-0882
$15.66
92145A
SPRING,RR BRAKE
92145-1301
$1.84
92145B
SPRING,PROPELLER SHAFT
92145-1304
$3.23
92154
BOLT,FLANGED-SMALL,6X16
92154-1822
$2.15
92154A
BOLT,10X35
92154-1823
$3.26
92154B
BOLT,12X35
92154-1824
$4.18
92154C
BOLT,FLANGED,8X40
92154-1825
$7.75
92171
CLAMP
92171-0453
$3.54
92171A
CLAMP
92171-0515
$6.38
92172
SCREW,SET,85X11.5
92172-1122
$66.83
92180
SHIM,T=0.95
92180-0813
Unavailable
92180A
SHIM,T=1.10
92180-0814
Unavailable
92180B
SHIM,T=1.15
92180-0815
Unavailable
92180C
SHIM,T=1.30
92180-0816
Unavailable
92180D
SHIM,T=1.40
92180-0817
Unavailable
92180E
SHIM,70X80X0.15
92180-0972
Unavailable
92180F
SHIM,70X80X0.2
92180-0973
Unavailable
92180G
SHIM,70X80X0.5
92180-0974
Unavailable
92180H
SHIM,70X80X0.8
92180-0975
Unavailable
92180I
SHIM,70X80X1.0
92180-0976
Unavailable
92180J
SHIM,70X80X1.2
92180-0977
Unavailable
92180K
SHIM,55X64X0.15
92180-1417
Unavailable
92180L
SHIM,55X64X0.20
92180-1418
Unavailable
92180M
SHIM,55X64X0.50
92180-1419
Unavailable
92180N
SHIM,55X64X0.80
92180-1420
Unavailable
92180O
SHIM,55X64X1.00
92180-1421
Unavailable
92180P
SHIM,55X64X1.20
92180-1422
Unavailable
92192
TUBE,BREATHER
92192-1473
$6.99
130
BOLT-FLANGED,10X14
130BA1014
$4.76
130A
BOLT-FLANGED,8X60
130CA0860
$1.77
220
SCREW-PAN-CROS,4X8
220AA0408
$0.68
480
CIRCLIP-TYPE-C,25MM
480J2500
$2.03
555
PIN-SPRING
555A0428
$2.30
601
BEARING-BALL
601A6005
$13.82
601A
BEARING-BALL
601A6011
$43.66
