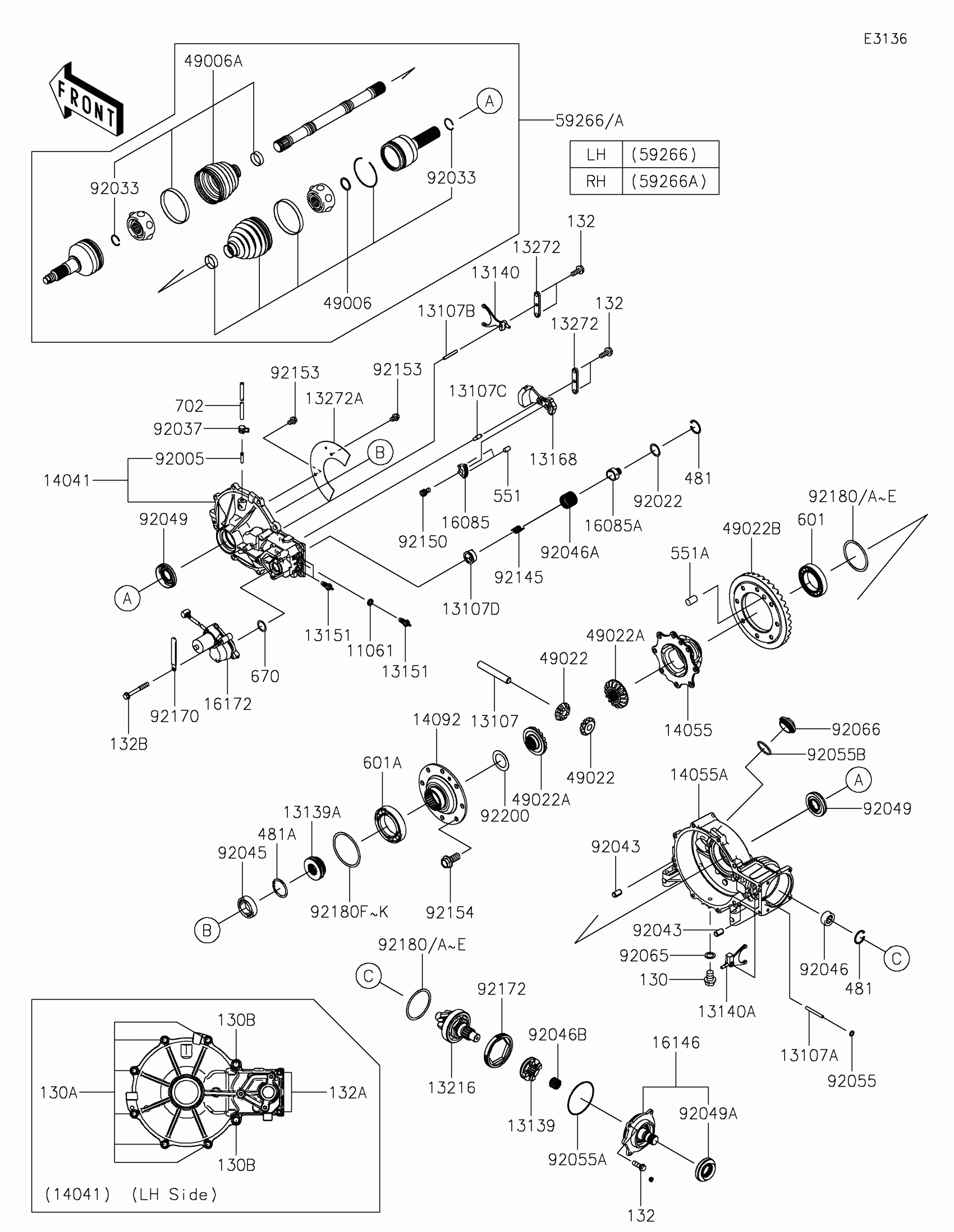

Kawasaki Teryx4 S Special Edition Drive Shaft-Front Diagram

#

Description
Price

11061

GASKET,10.5X16X3

11061-0805

$2.64

13107

SHAFT,CROSS

13107-0758

$29.06

13107A

SHAFT,6X55

13107-0759

$8.72

13107B

SHAFT,DIFF LOCK

13107-0768

$9.43

13107C

SHAFT

13107-0775

$12.29

13107D

SHAFT,ACTUATOR OUTPUT

13107-0776

$94.31

13139

SHIFTER

13139-0017

$77.69

13139A

SHIFTER,DIFF LOCK

13139-0018

$72.77

13140

FORK-SHIFT

13140-0070

$37.89

13140A

FORK-SHIFT

13140-0635

$34.52

13151

SWITCH-COMP

13151-1086

$38.19

13168

LEVER

13168-0731

$94.84

13216

GEAR-COMP,BEVEL,8T

13216-0884

$324.19

13272

PLATE

13272-0985

$14.62

13272A

PLATE

13272-0986

$6.00

14041

COVER-COMP,LH

14041-0575

$114.34

14055

CASE-GEAR,CROSS SHAFT

14055-0602

$225.94

14055A

CASE-GEAR,RH

14055-0626

$221.68

14092

COVER,CROSS SHAFT CASE

14092-1042

$178.74

16085

GEAR,65T

16085-0605

$116.83

16085A

GEAR,13T

16085-0614

$116.83

16146

COVER-ASSY,INPUT SHAFT

16146-0740

$127.23

16172

ACTUATOR

16172-0038

$637.73

49006

BOOT,INSIDE

49006-0578

$94.95

49006A

BOOT,OUTSIDE

49006-0638

$94.99

49022

GEAR-BEVEL,10T

49022-0579

$91.57

49022A

GEAR-BEVEL,16T

49022-0580

$155.00

49022B

GEAR-BEVEL,35T

49022-0607

$432.87

59266

JOINT-BALL,LH

59266-0744

$656.29

59266A

JOINT-BALL,RH

59266-0745

$656.29

92005

FITTING

92005-1142

$7.60

92022

WASHER,25.3X32X0.5

92022-225

$5.52

92033

RING-SNAP

92033-0837

$6.22

92037

CLAMP,TUBE

92037-1461

$3.88

92043

PIN,6.2X8X14

92043-1263

$0.43

92045

BEARING-BALL,60/28

92045-1176

$28.54

92046

BEARING-NEEDLE,AJ501907

92046-0025

$35.70

92046A

BEARING-NEEDLE

92046-0050

$29.90

92046B

BEARING-NEEDLE

92046-1234

$23.10

92049

SEAL-OIL,28X60X7

92049-0089

$16.97

92049A

SEAL-OIL

92049-0160

$12.92

92055

RING-O,7.5X1.5

92055-0756

$1.11

92055A

"O" RING

92055-081

$17.91

92055B

RING-O,35.8MM

92055-1281

$7.34

92065

GASKET,10.5X16X1

92065-058

$3.96

92066

PLUG,36X7.5

92066-0744

$8.22

92145

SPRING

92145-0975

$3.74

92150

BOLT,SOCKET,6X10

92150-1650

$4.31

92153

BOLT,FLANGED-SMALL,6X8

92153-0964

$2.24

92154

BOLT,FLANGED,10X23

92154-0550

$3.74

92170

CLAMP

92170-1925

$2.40

92172

SCREW,SET,85X11.5

92172-1122

$66.83

92180

SHIM,70X80X0.15

92180-0972

Unavailable

92180A

SHIM,70X80X0.2

92180-0973

Unavailable

92180B

SHIM,70X80X0.5

92180-0974

Unavailable

92180C

SHIM,70X80X0.8

92180-0975

Unavailable

92180D

SHIM,70X80X1.0

92180-0976

Unavailable

92180E

SHIM,70X80X1.2

92180-0977

Unavailable

92180F

SHIM,80X90X0.15

92180-0978

Unavailable

92180G

SHIM,80X90X0.2

92180-0979

Unavailable

92180H

SHIM,80X90X0.5

92180-0980

Unavailable

92180I

SHIM,80X90X0.8

92180-0981

Unavailable

92180J

SHIM,80X90X1.0

92180-0982

Unavailable

92180K

SHIM,80X90X1.2

92180-0983

Unavailable

92200

WASHER

92200-1077

$4.18

130

BOLT-FLANGED,10X14

130BA1014

$4.76

130A

BOLT-FLANGED,8X25

130CA0825

$1.46

130B

BOLT-FLANGED,10X30

130CA1030

$2.32

132

BOLT-FLANGED-SMALL,6X16

132BA0616

$1.51

132A

BOLT-FLANGED-SMALL,6X25

132BA0625

$2.80

132B

BOLT-FLANGED-SMALL,6X45

132BA0645

$4.45

481

CIRCLIP-TYPE-C,32MM

481J3200

$2.68

481A

CIRCLIP-TYPE-C,52MM

481J5200

$4.96

551

PIN-DOWEL,4X10

551A0410

$0.65

551A

PIN-DOWEL

551A1016

$2.96

601

BEARING-BALL

601B6010

$43.73

601A

BEARING-BALL

601B6011

$54.98

670

O RING

670D3022

$2.80

702

TUBE-RUBBER,5X8X930

702A05930

$8.01
