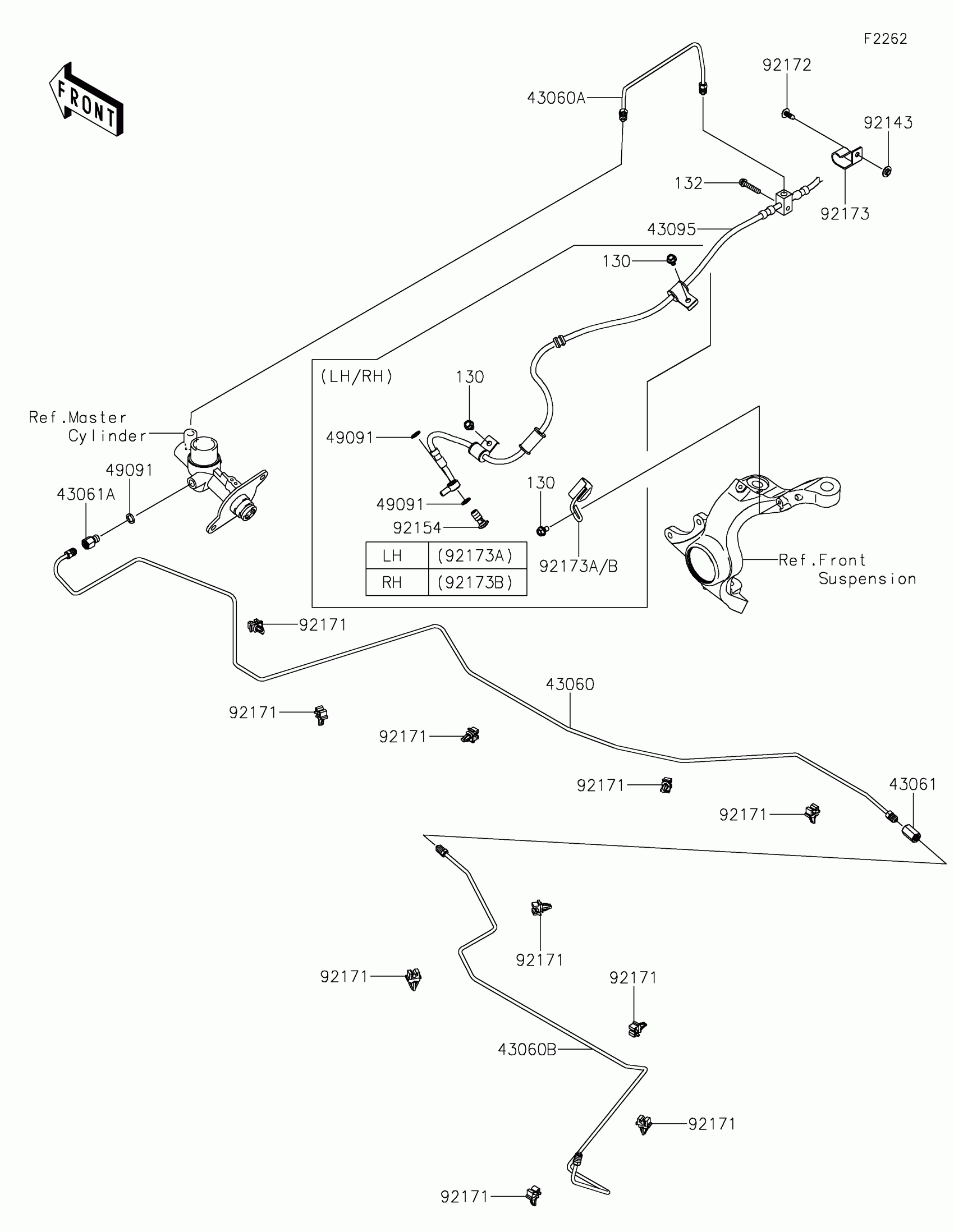

Kawasaki Teryx4 S Special Edition Brake Piping Diagram

Description

Price

43060

PIPE-BRAKE,M/C-JOINT

43060-0316

$43.66

43060A

PIPE-BRAKE,M/C-FR JOINT

43060-0320

$22.25

43060B

PIPE-BRAKE,JOINT-BRAKE

43060-0324

$37.27

43061

JOINT-BRAKE

43061-0003

$46.35

43061A

JOINT-BRAKE,M/C

43061-0302

$33.24

43095

HOSE-BRAKE,FR

43095-1749

$141.64

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$2.15

92143

COLLAR

92143-1087

$4.31

92154

BOLT,TORX,10X23

92154-1875

$9.67

92171

CLAMP

92171-0805

$3.90

92172

SCREW,TAPPING,6X16

92172-0739

$0.85

92173

CLAMP

92173-0930

$7.66

92173A

CLAMP,LH

92173-0934

$10.17

92173B

CLAMP,RH

92173-0935

$10.17

130

BOLT-FLANGED,6X10

130BA0610

$1.20

132

BOLT-FLANGED-SMALL,6X30

132BA0630

$2.65
