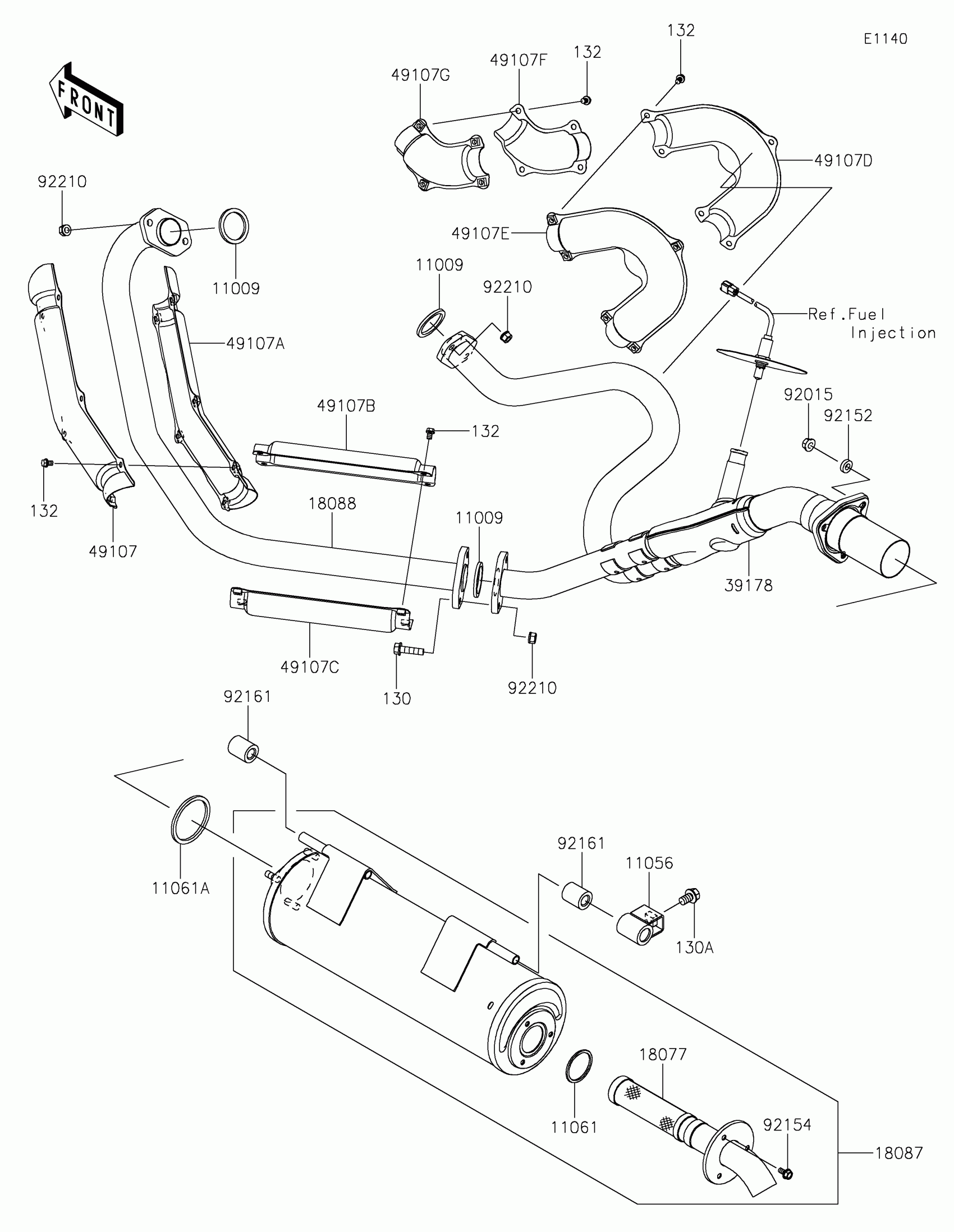

Kawasaki TERYX4™ S Muffler(s) Diagram
#
Description
Price
11009
GASKET,EXHAUST PIPE
11009-1992
$7.82
11056
BRACKET
11056-0727
$23.87
11061
GASKET,38.9X46.4X3.0
11061-0082
$7.60
11061A
GASKET,PIPE-MUFFLER
11061-0811
$8.81
18077
ARRESTER-SPARK
18077-0036
$168.58
18087
MUFFLER
18087-0326
$716.89
18088
PIPE-EXHAUST
18088-0837
$355.89
39178
MANIFOLD-COMP-EXHAUST
39178-0190
$1,194.04
49107
COVER-EXHAUST PIPE,FR,LH
49107-0753
$22.41
49107A
COVER-EXHAUST PIPE,FR,RH
49107-0754
$31.85
49107B
COVER-EXHAUST PIPE,RR,UPP
49107-0755
$13.82
49107C
COVER-EXHAUST PIPE,RR,LWR
49107-0756
$19.13
49107D
COVER-EXHAUST MANIFOLD,RH
49107-0757
$18.22
49107E
COVER-EXHAUST MANIFOLD,LH
49107-0758
$26.67
49107F
COVER-EXHAUST PIPE,RH
49107-0797
$18.22
49107G
COVER-EXHAUST PIPE,LH
49107-0798
$18.22
92015
NUT,8MM
92015-1402
$4.69
92152
COLLAR,8.2X17X4.5
92152-1609
$7.58
92154
BOLT,FLANGED,6X12
92154-0852
$1.19
92161
DAMPER
92161-0961
$24.27
92210
NUT,8MM
92210-1242
$2.41
130
BOLT-FLANGED,8X30
130BD0830
$1.94
130A
BOLT-FLANGED,10X16
130CA1016
$3.35
132
BOLT-FLANGED-SMALL,6X8
132BD0608
$3.40
