2024 Kawasaki Teryx4™ S LE Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 2024 Kawasaki Teryx4™ S LE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

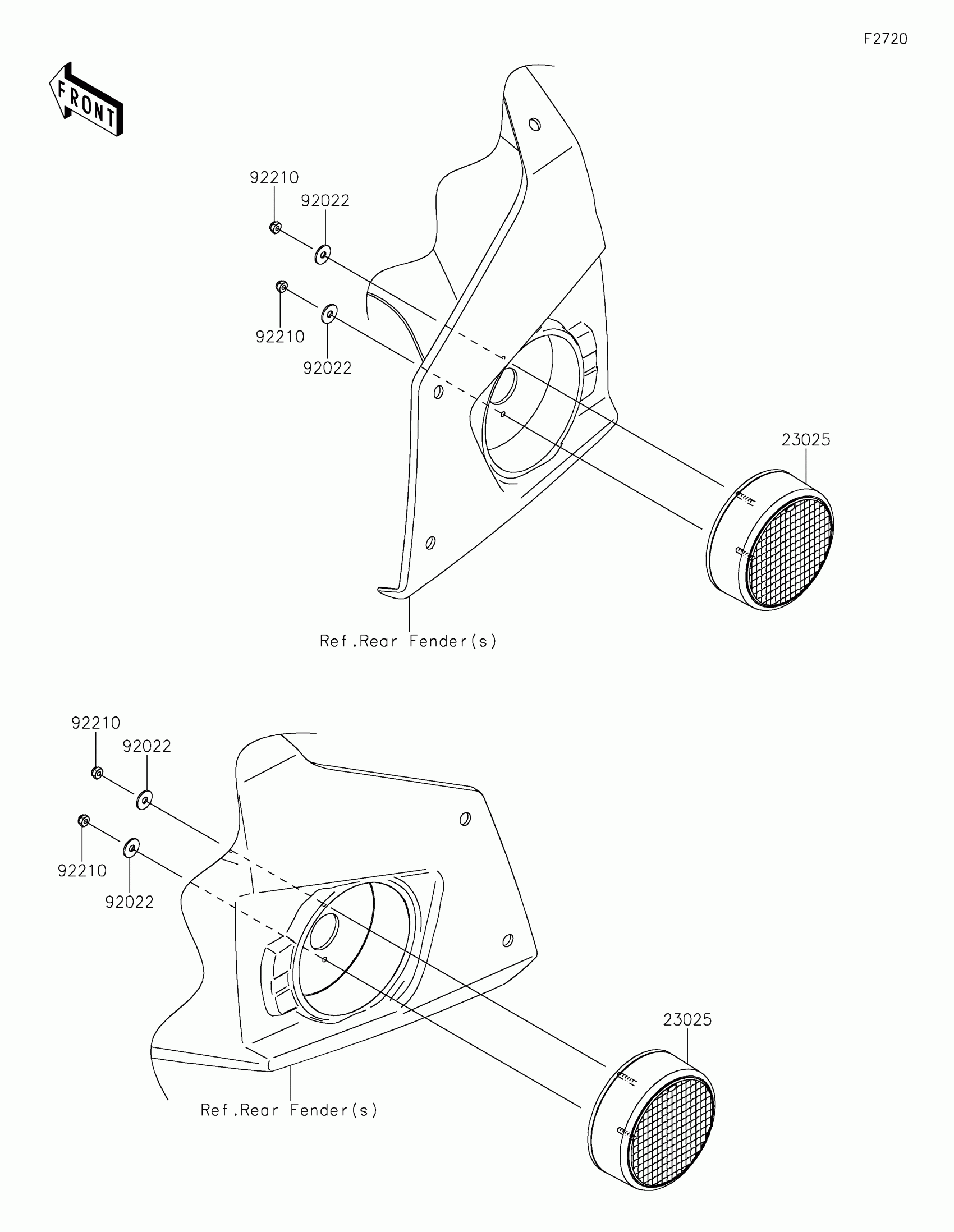

2024 Kawasaki Teryx4™ S LE Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

23025

LAMP-TAIL

23025-0364

1
Out of stock

92022

WASHER,4.3X12.5X1

92022-1949

1
Out of stock

92210

NUT

92210-0722

1
Out of stock
