2024 Kawasaki Teryx4™ S LE Starter Motor Diagram

← All diagrams

Find the part on the Starter Motor diagram for your 2024 Kawasaki Teryx4™ S LE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

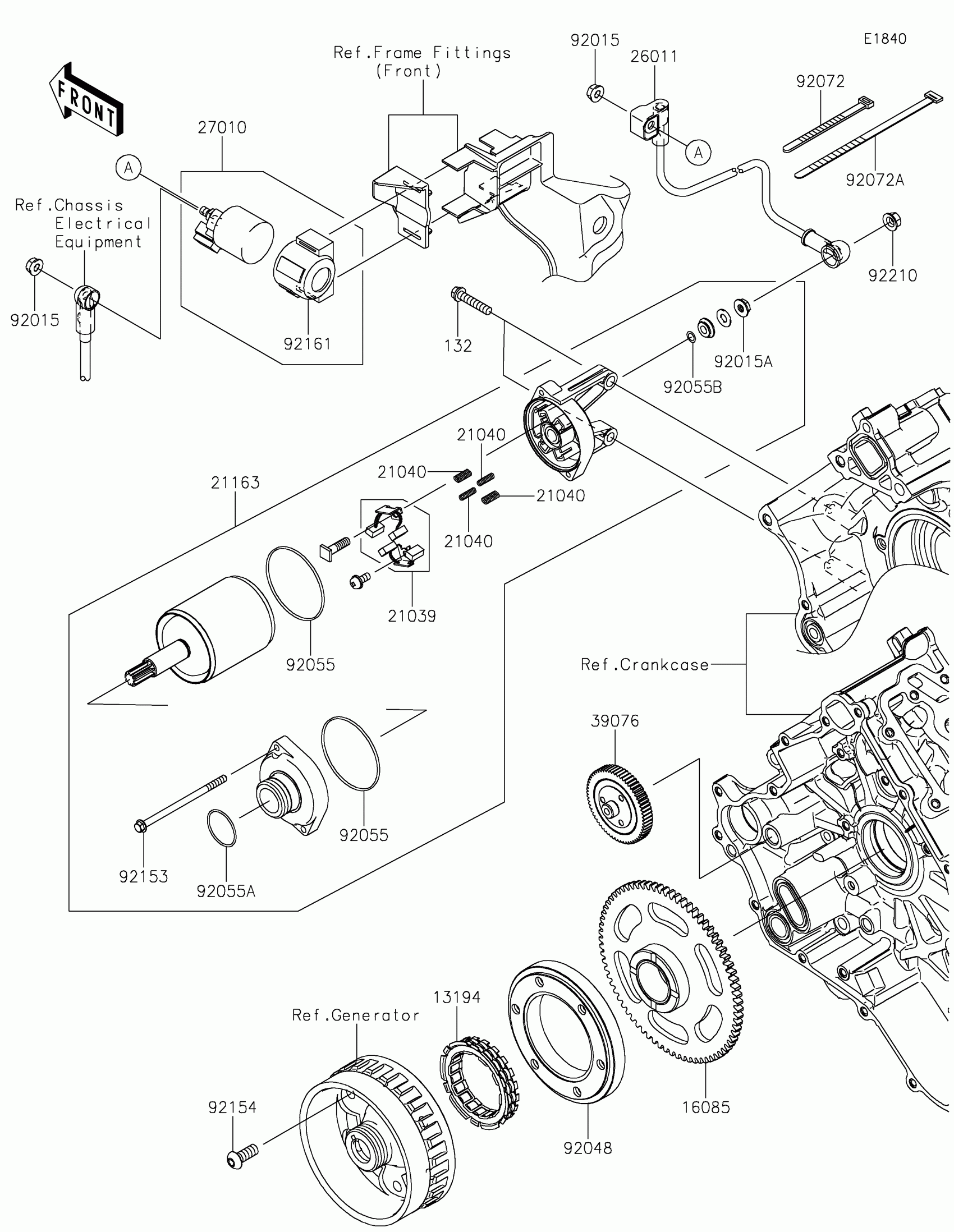

2024 Kawasaki Teryx4™ S LE Starter Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13194

CLUTCH-ONEWAY

13194-1094

1
Out of stock

16085

GEAR,STARTER

16085-0591

1
Out of stock

21039

BRUSH,CARBON

21039-0004

1
Out of stock

21040

SPRING-BRUSH

21040-0003

1
Out of stock

21163

STARTER-ELECTRIC

21163-0037

1
Out of stock

26011

WIRE-LEAD

26011-0901

1
Out of stock

27010

SWITCH,MAGNETIC

27010-0766

1
Out of stock

39076

LIMITER,STARTER

39076-0555

1

$246.88

In stock

92015

NUT,FLANGED,6MM

92015-1367

1
Out of stock

92015A

NUT,STARTER MOTOR

92015-1476

1
Out of stock

92048

RACE,ONEWAY CLUTCH

92048-0553

1
Out of stock

92055

RING-O

92055-0136

1
Out of stock

92055A

RING-O

92055-1276

1
Out of stock

92055B

RING-O,4.5X2.0

92055-1370

1
Out of stock

92072

BAND,L=123

92072-030

1
Out of stock

92072A

BAND,L=186

92072-056

1
Out of stock

92153

BOLT

92153-1850

1
Out of stock

92154

BOLT,TORX,8X20

92154-0421

1
Out of stock

92161

1

$18.34

In stock

92210

NUT,6MM

92210-0188

1
Out of stock

132

1

$2.17

In stock
