2024 Kawasaki Teryx4™ S LE Shock Absorber Diagram

← All diagrams

Find the part on the Shock Absorber diagram for your 2024 Kawasaki Teryx4™ S LE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

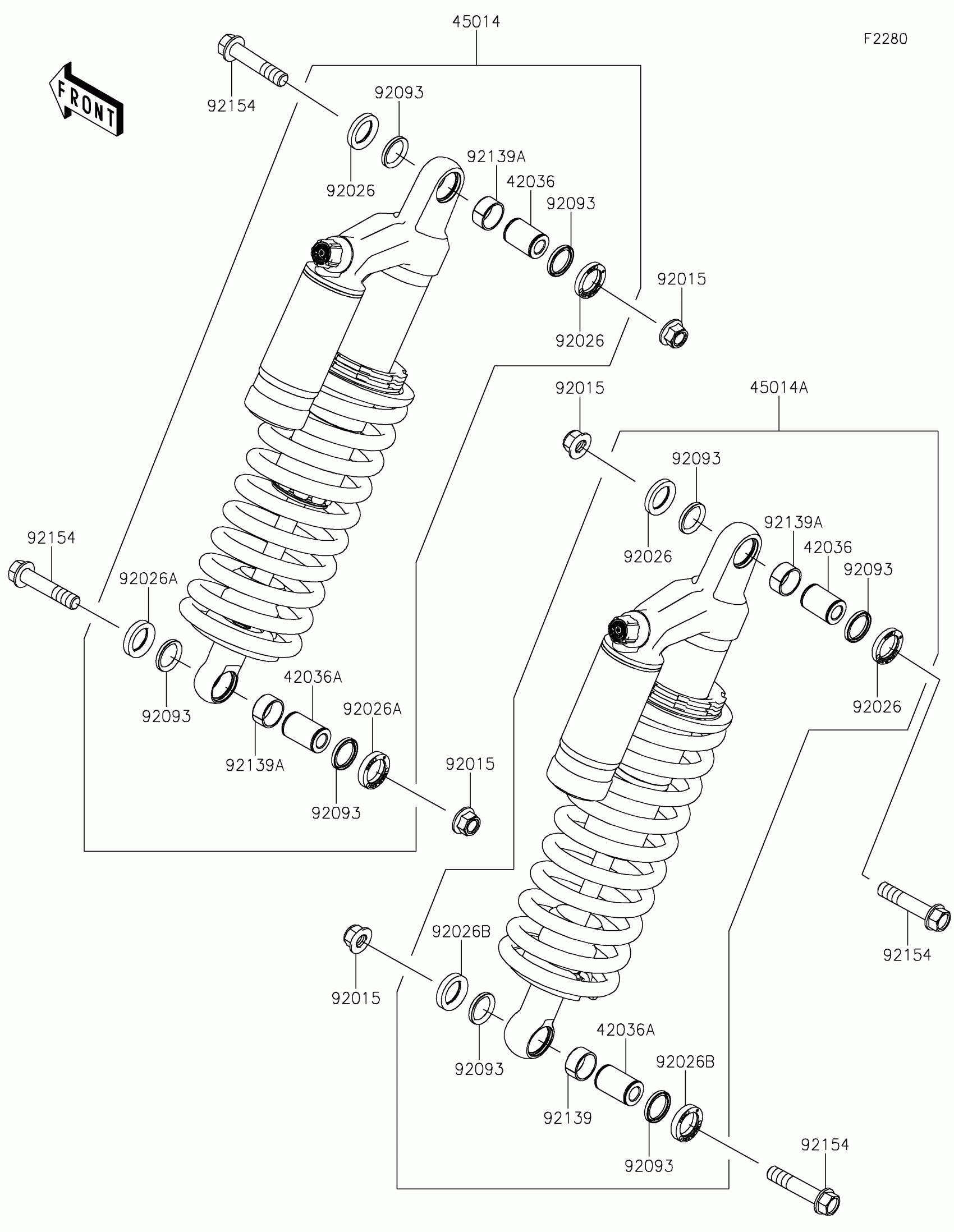

2024 Kawasaki Teryx4™ S LE Shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

42036

SLEEVE

42036-0862

1
Out of stock

42036A

SLEEVE

42036-0863

1
Out of stock

45014

SHOCKABSORBER,FR,SILVER

45014-0729-42P

1
Out of stock

45014A

SHOCKABSORBER,RR,SILVER

45014-0730-42P

1
Out of stock

92015

NUT,LOCK,FLANGED,12MM

92015-1433

1
Out of stock

92026

SPACER

92026-0903

1
Out of stock

92026A

SPACER

92026-0906

1
Out of stock

92026B

SPACER

92026-0907

1
Out of stock

92093

SEAL

92093-0757

1
Out of stock

92139

BUSHING

92139-0809

1
Out of stock

92139A

BUSHING

92139-1127

1
Out of stock

92154

BOLT,FLANGED,12X58

92154-1319

1
Out of stock
