2024 Kawasaki Teryx4™ S LE Front Suspension Diagram

← All diagrams

Find the part on the Front Suspension diagram for your 2024 Kawasaki Teryx4™ S LE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

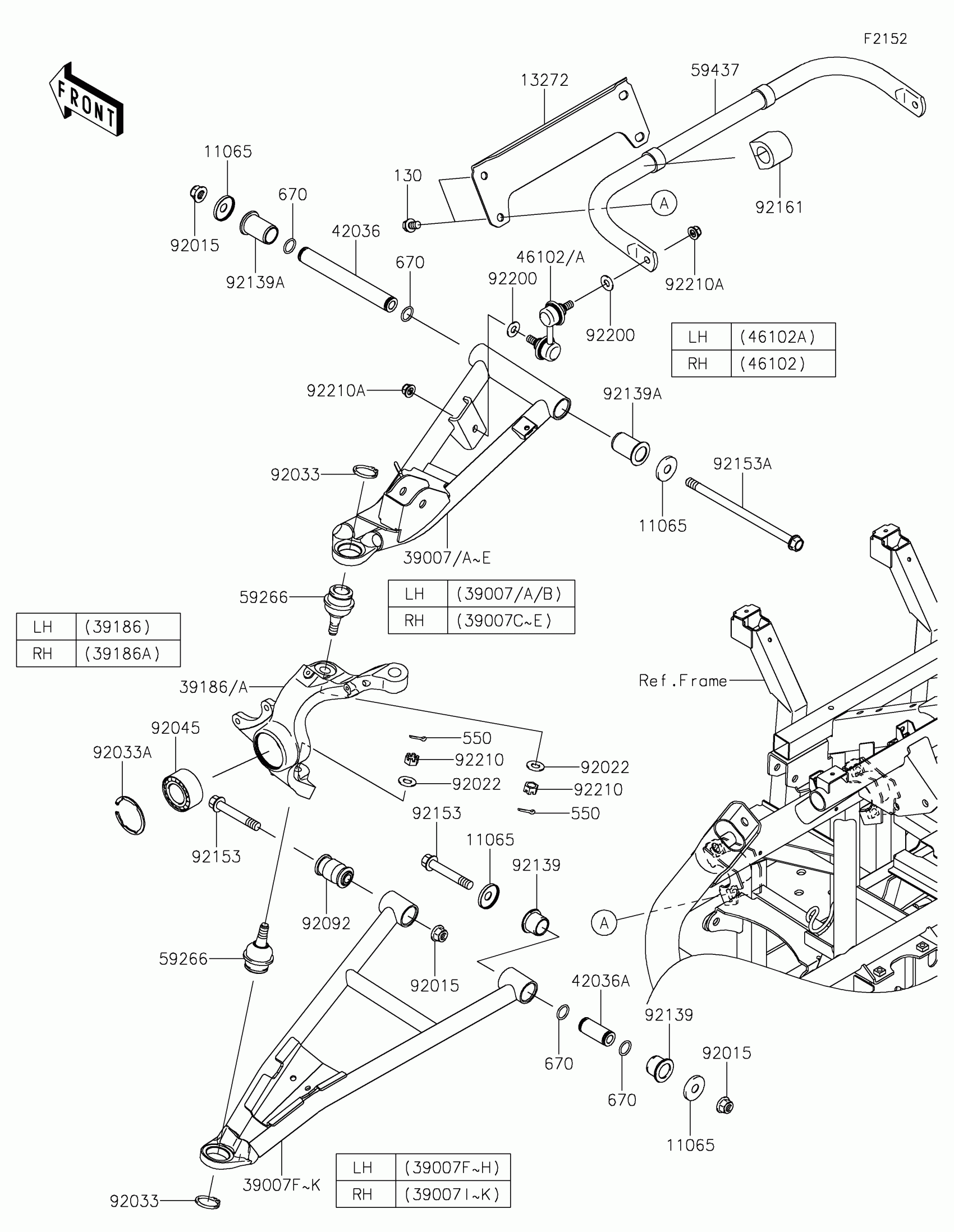

2024 Kawasaki Teryx4™ S LE Front Suspension Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP

11065-0253

1
Out of stock

13272

PLATE

13272-1650

1

$49.77

In stock

39007A

ARM-SUSP,FR,UPP,LH,P.C.P.RED

39007-0445-57C

1
Out of stock

39007B

ARM-SUSP,FR,UPP,LH,P.P.N.YEL

39007-0445-66P

1
Out of stock

39007D

ARM-SUSP,FR,UPP,RH,P.C.P.RED

39007-0446-57C

1
Out of stock

39007E

ARM-SUSP,FR,UPP,RH,P.P.N.YEL

39007-0446-66P

1
Out of stock

39007G

ARM-SUSP,FR,LWR,LH,P.C.P.RED

39007-0447-57C

1
Out of stock

39007H

ARM-SUSP,FR,LWR,LH,P.P.N.YEL

39007-0447-66P

1
Out of stock

39007J

ARM-SUSP,FR,LWR,RH,P.C.P.RED

39007-0448-57C

1
Out of stock

39007K

ARM-SUSP,FR,LWR,RH,P.P.N.YEL

39007-0448-66P

1
Out of stock

39186

KNUCKLE,FR,LH

39186-0311

1

$180.74

In stock

39186A

KNUCKLE,FR,RH

39186-0312

1

$180.74

In stock

42036

SLEEVE

42036-0061

1
Out of stock

42036A

SLEEVE

42036-0062

1
Out of stock

46102

ROD,STABILIZER,LH

46102-0100

1
Out of stock

46102A

ROD,STABILIZER,RH

46102-0101

1
Out of stock

59266

JOINT-BALL

59266-0711

1
Out of stock

59437

STABILIZER,FR

59437-0010

1
Out of stock

92015

NUT,LOCK,FLANGED,12MM

92015-1433

1
Out of stock

92022

WASHER

92022-1831

1
Out of stock

92033

RING-SNAP,C-TYPE,32MM

92033-1262

1
Out of stock

92033A

RING-SNAP,55MM

92033-1274

1
Out of stock

92045

BEARING-BALL,30X55X32

92045-0800

1
Out of stock

92092

BUSHING-RUBBER

92092-0555

1
Out of stock

92139

BUSHING

92139-0231

1
Out of stock

92139A

BUSHING,22.4X28.2X46

92139-0806

1
Out of stock

92153

BOLT,FLANGED,12X76.5

92153-1733

1
Out of stock

92153A

BOLT,FLANGED,12X213

92153-1958

1
Out of stock

92161

DAMPER

92161-1508

1

$4.49

In stock

92200

WASHER,10.3X23X1.6

92200-2009

1
Out of stock

92210

NUT,CASTLE,12MM

92210-0395

1
Out of stock

92210A

NUT,LOCK,FLANGED,10MM

92210-1080

1
Out of stock

130

BOLT-FLANGED,10X16

130CA1016

1

$2.68

In stock

550

PIN-COTTER,3.0X25

550AA3025

1
Out of stock

670

O RING,18MM

670B2018

1
Out of stock
