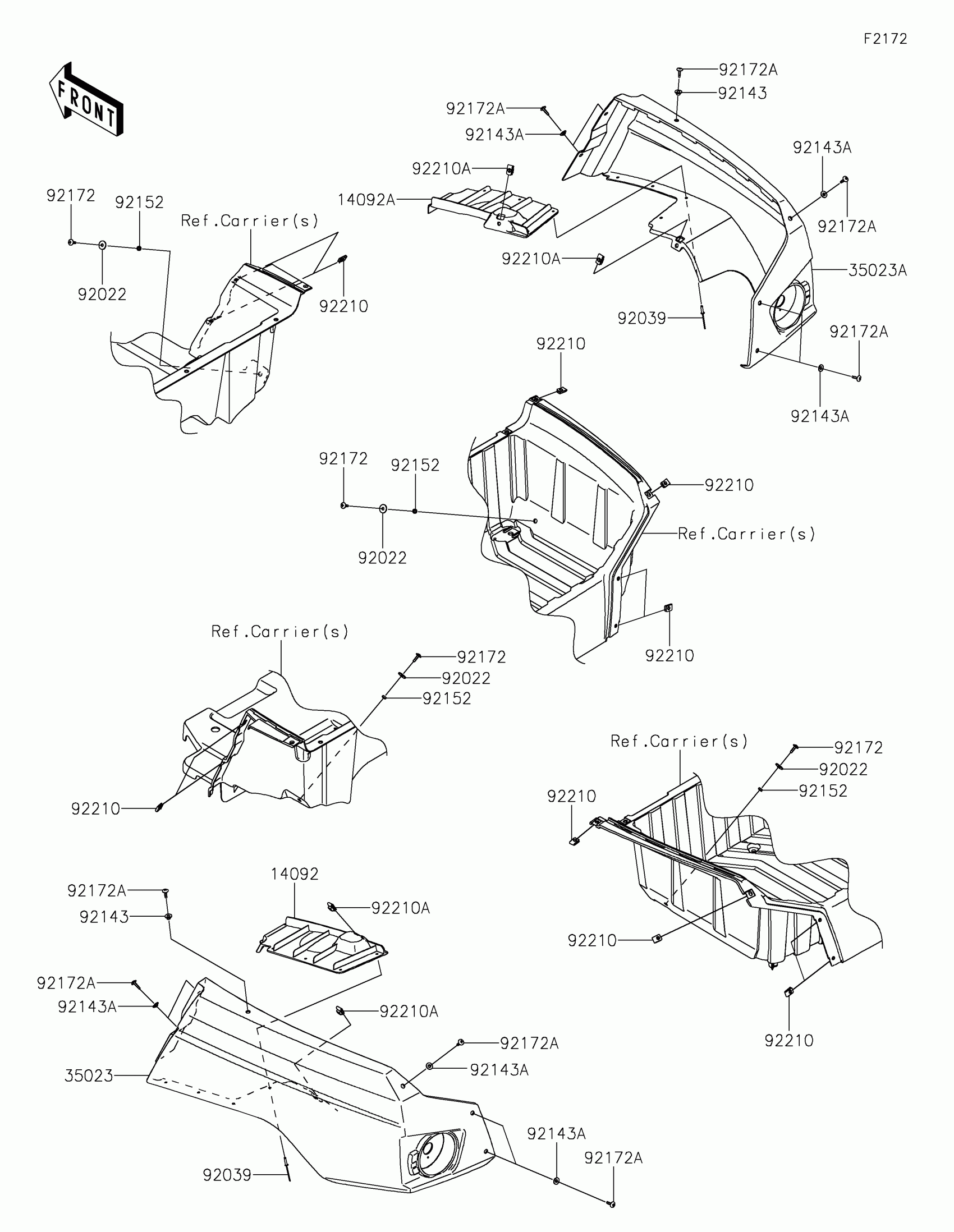

Kawasaki TERYX4™ S LE Rear Fender(s) Diagram

Description

Price

14092

COVER,INNER,LH

14092-0863

$30.81

14092A

COVER,INNER,RH

14092-0864

$30.81

35023

FENDER-REAR,LH,S.BLACK

35023-0307-839

$79.23

35023A

FENDER-REAR,RH,S.BLACK

35023-0308-839

$79.23

92022

WASHER,6.5X20X1.6,BLACK

92022-1346

$0.49

92039

RIVET,5X23.3

92039-0769

$1.86

92143

COLLAR

92143-1057

$5.00

92143A

COLLAR

92143-1087

$4.31

92152

COLLAR,6.3X10X3

92152-1834

$4.92

92172

SCREW,6X18

92172-0002

$2.80

92172A

SCREW,TAPPING,6X20

92172-0488

$3.02

92210

NUT,LEAF SPRING,6MM

92210-0624

$2.32

92210A

NUT,6MM

92210-0891

$6.52
