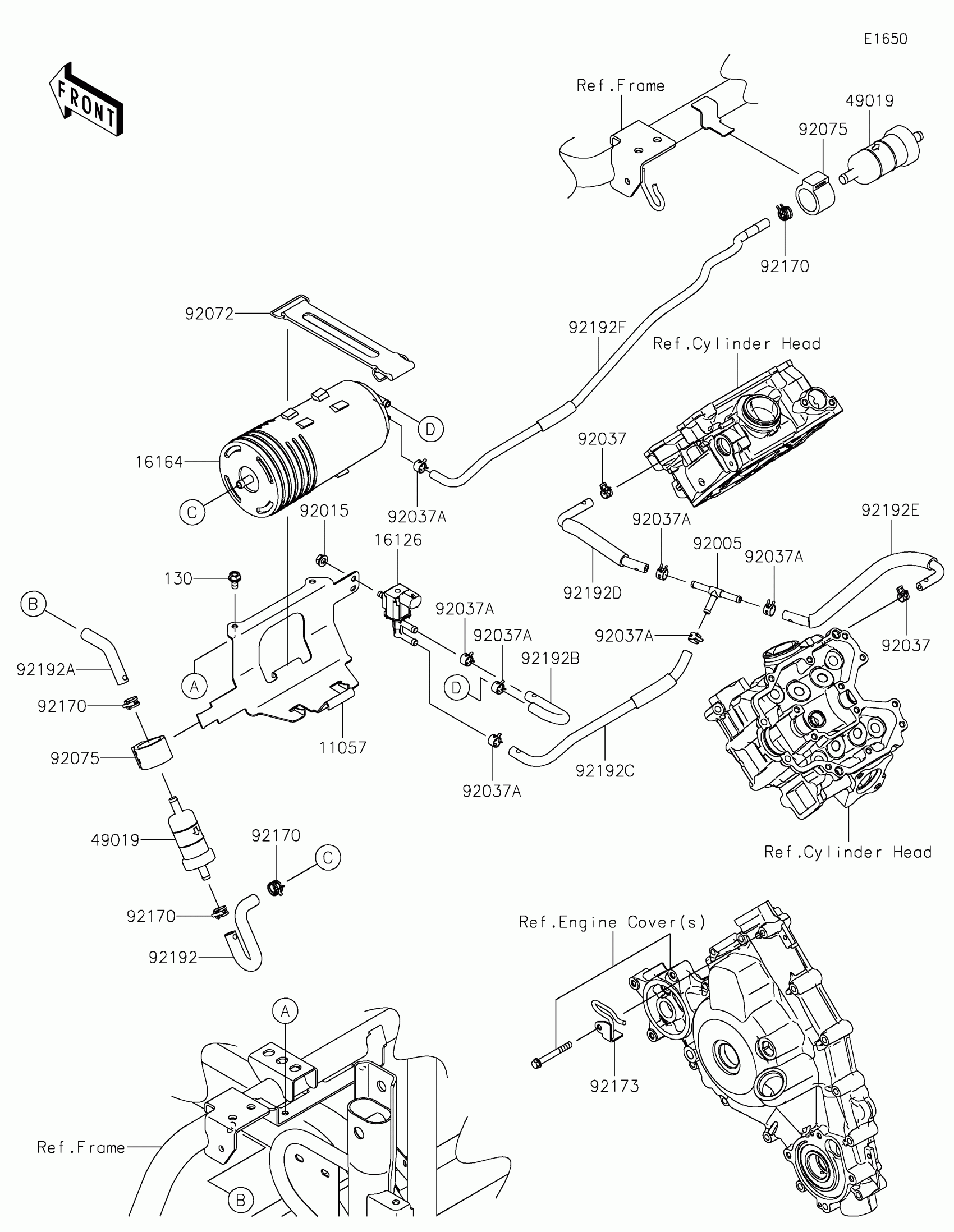

Kawasaki TERYX4™ S LE Fuel Evaporative System(CA) Diagram

Description

Price

11057

BRACKET,CANISTER

11057-0609

$30.91

16126

VALVE,SOLENOID

16126-0705

$106.99

16164

CANISTER

16164-0016

$205.69

49019

FILTER-FUEL

49019-0032

$22.97

92005

FITTING,T

92005-0885

$4.55

92015

NUT,FLANGED,6MM

92015-1367

$3.69

92037

CLAMP,TUBE

92037-1461

$3.88

92037A

CLAMP

92037-2113

$1.03

92072

BAND,L=168

92072-1306

$13.75

92075

DAMPER,FUEL FILTER

92075-1853

$12.35

92170

CLAMP

92170-2082

$0.84

92173

CLAMP,TUBE GUIDE

92173-1837

$30.59

92192

TUBE,CANISTER-FUEL FILTER

92192-1737

$3.01

92192A

TUBE,AIR-FUEL FILTER

92192-1738

$3.85

92192B

TUBE,CANISTER-VALVE

92192-1739

$26.91

92192C

TUBE,VALVE-FITTING

92192-1740

$41.83

92192D

TUBE,FITTING-HEAD(FR)

92192-1742

$38.76

92192E

TUBE,FITTING-HEAD(RR)

92192-1743

$45.64

92192F

TUBE,FILTER-FUEL-CANISTER

92192-2258

$74.80

130

BOLT-FLANGED,6X12

130BA0612

$1.72
