Drive Converter

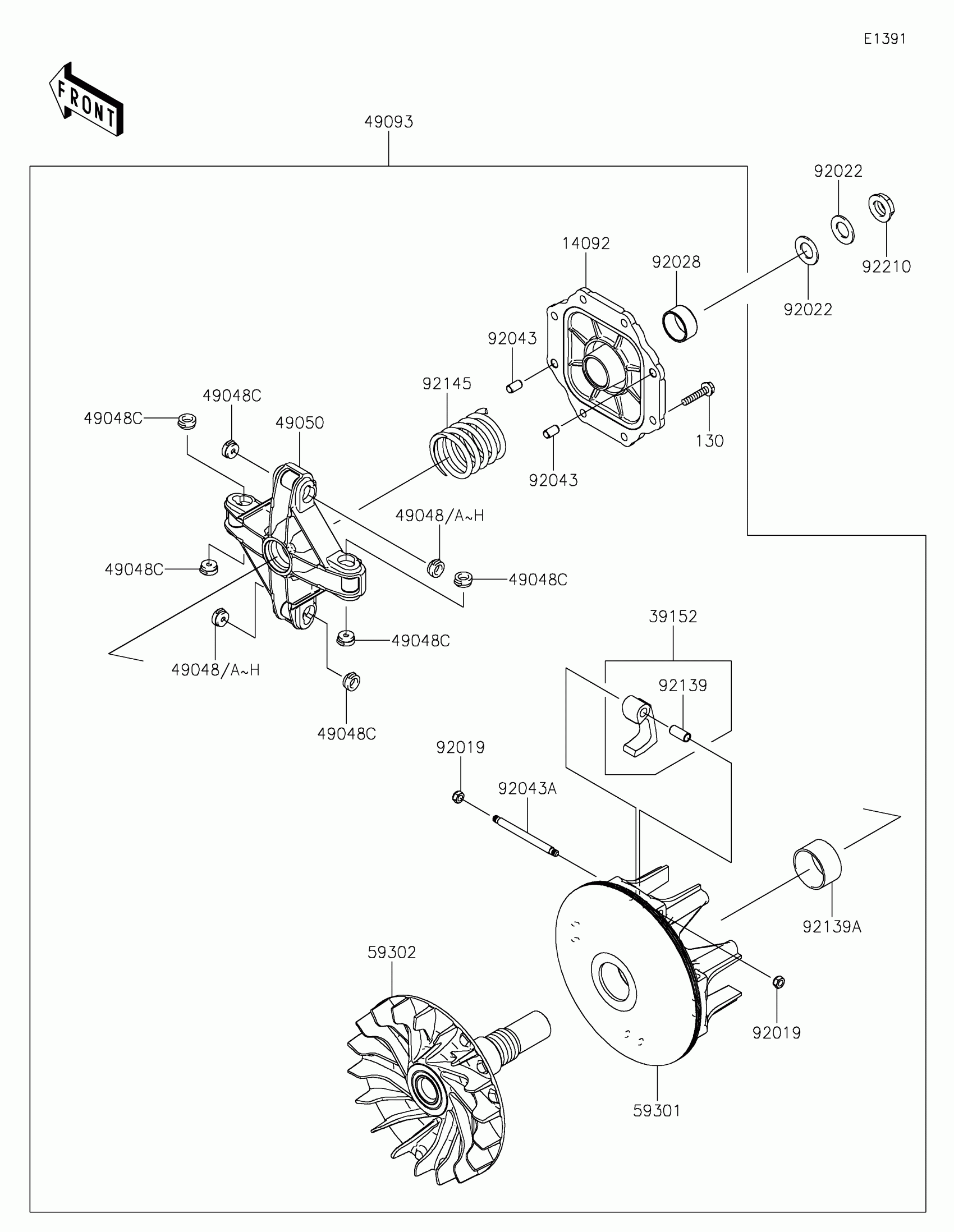

Kawasaki Teryx4™ S LE Drive Converter Diagram
#
Description
Price
14092
COVER
14092-1107
$37.87
39152
WEIGHT-RAMP
39152-0042
$55.64
49048
SHOE,T=7.2
49048-1087
Unavailable
49048A
SHOE,T=7.3
49048-1088
Unavailable
49048B
SHOE,T=7.4
49048-1089
Unavailable
49048C
SHOE,T=7.5
49048-1090
$14.82
49048D
SHOE,T=7.6
49048-1091
Unavailable
49048E
SHOE,T=7.7
49048-1092
Unavailable
49048F
SHOE,T=7.8
49048-1093
Unavailable
49048G
SHOE,T=7.9
49048-1094
Unavailable
49048H
SHOE,T=8.0
49048-1095
Unavailable
49050
SPIDER
49050-0039
$152.50
49093
CONVERTER-ASSY-DRIVE
49093-0049
$848.17
59301
SHEAVE-MOVABLE
59301-0029
$237.27
59302
SHEAVE-COMP
59302-0087
$337.78
92019
NUT,LOCK,6MM
92019-008
$4.26
92022
WASHER,16.3X29X1.75
92022-1356
$7.34
92028
BUSHING,KICK LEVER,OUTSIDE
92028-1900
$7.38
92043
PIN,6.2X8X14
92043-1263
$0.43
92043A
PIN
92043-1688
$13.60
92139
BUSHING
92139-0852
$10.21
92139A
BUSHING
92139-1244
$12.80
92145
SPRING
92145-0958
$24.80
92210
NUT,LEFT HANDED,16MM
92210-0350
$10.30
130
BOLT-FLANGED,6X30
130CA0630
$2.49
