2024 Kawasaki Teryx4™ S Le Cylinder Head Diagram

← All diagrams

Find the part on the Cylinder Head diagram for your 2024 Kawasaki Teryx4™ S Le, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

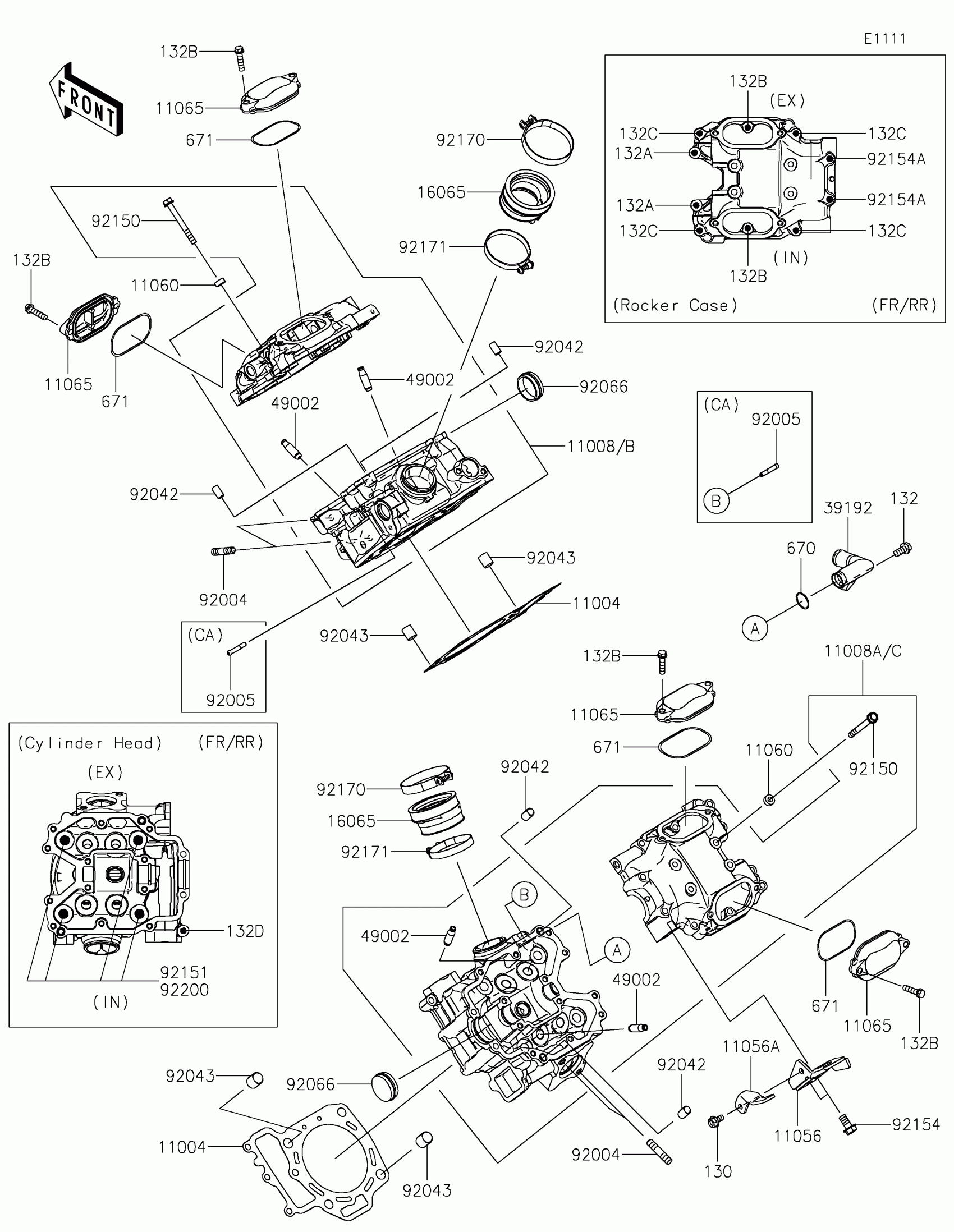

2024 Kawasaki Teryx4™ S Le Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11004

GASKET-HEAD

11004-0713

1

$30.73

In stock

11008

1

$971.64

In stock

11008A

1

$971.64

In stock

11008B

1

$971.64

In stock

11008C

1

$971.64

In stock

11056

BRACKET

11056-1410

1

$22.83

In stock

11056A

BRACKET

11056-1411

1

$3.44

In stock

11060

GASKET,6.2X12X0.3

11060-1994

1

$1.98

In stock

11065

CAP,ROCKER CASE

11065-0724

1

$11.23

In stock

16065

HOLDER-CARBURETOR

16065-0118

1

$13.86

In stock

39192

PIPE-WATER,FR

39192-0119

1

$37.14

In stock

49002

GUIDE-VALVE

49002-0706

1

$29.42

In stock

92004

STUD,8X22

92004-1217

1
Out of stock

92005

FITTING

92005-1264

1
Out of stock

92042

PIN,DOWEL,6.3X8X14

92042-007

1

$4.51

In stock

92043

PIN,10.1X12X14

92043-4009

1

$4.93

In stock

92066

PLUG

92066-0904

1

$12.90

In stock

92150

BOLT,6X55

92150-1302

1

$5.03

In stock

92151

BOLT,FLANGED,10X150

92151-1917

1

$18.62

In stock

92154

BOLT,FLANGED,8X20

92154-0885

1

$1.93

In stock

92154A

BOLT,FLANGED,6X130

92154-0993

1

$3.93

In stock

92170

CLAMP

92170-1448

1

$6.44

In stock

92171

CLAMP

92171-0722

1

$12.02

In stock

92200

WASHER,11.5X20.5X1.6

92200-1128

1
Out of stock

130

BOLT-FLANGED,6X12

130BA0612

1

$1.46

In stock

132

1

$1.12

In stock

132A

1

$2.05

In stock

132B

1

$2.29

In stock

132C

1

$2.17

In stock

132D

1

$2.05

In stock

670

O RING,16MM

670B2016

1

$1.20

In stock

671

O RING,55MM

671D2555

1

$2.92

In stock
