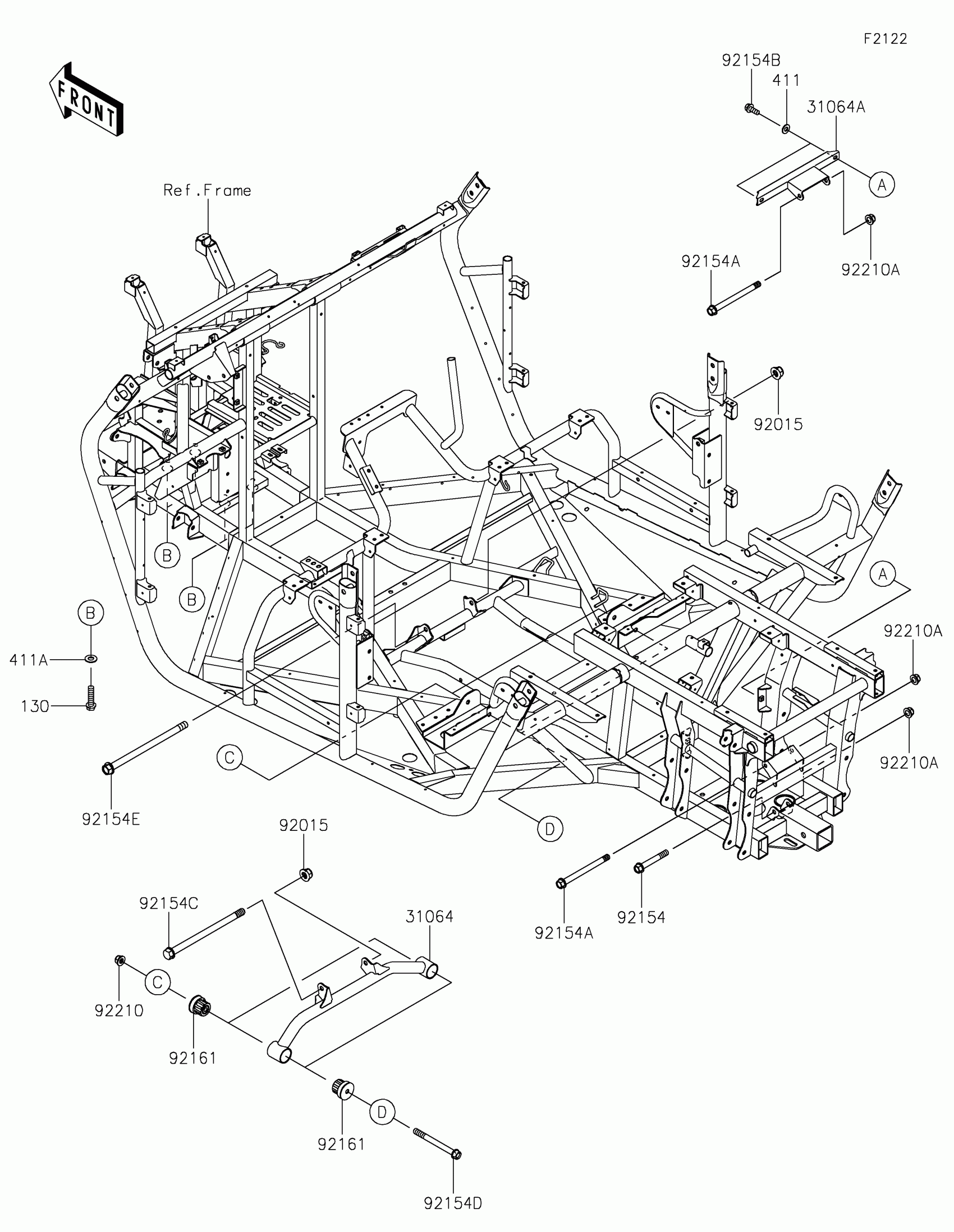

Kawasaki Teryx4™ S LE Engine Mount Diagram

Description

Price

31064

PIPE-COMP,RR FRAME

31064-0621

$90.18

31064A

PIPE-COMP,RR GEARCASE MOUNT

31064-0660

$51.32

92015

NUT,LOCK,FLANGED,12MM

92015-1433

$6.75

92154

BOLT,FLANGED,10X70

92154-0894

$5.24

92154A

BOLT,FLANGED,10X120

92154-0895

$11.25

92154B

BOLT,FLANGED,8X20

92154-1130

$2.95

92154C

BOLT,FLANGED,12X190

92154-1131

$19.15

92154D

BOLT,FLANGED,10X105

92154-1132

$7.47

92154E

BOLT,FLANGED,12X200

92154-1133

$26.02

92161

DAMPER

92161-0423

$13.10

92210

NUT,LOCK,FLANGED,10MM

92210-0276

$1.85

92210A

NUT,LOCK,FLANGED,10MM

92210-1080

$7.83

130

BOLT-FLANGED,10X40

130BA1040

$1.69

411

WASHER-PLAIN,8MM

411AA0800

Unavailable

411A

WASHER-PLAIN,10MM

411AA1000

$0.81
