2021 Kawasaki TERYX4™ S Gear Change Drum/shift Fork Diagram

← All diagrams

Find the part on the Gear Change Drum/shift Fork diagram for your 2021 Kawasaki TERYX4™ S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

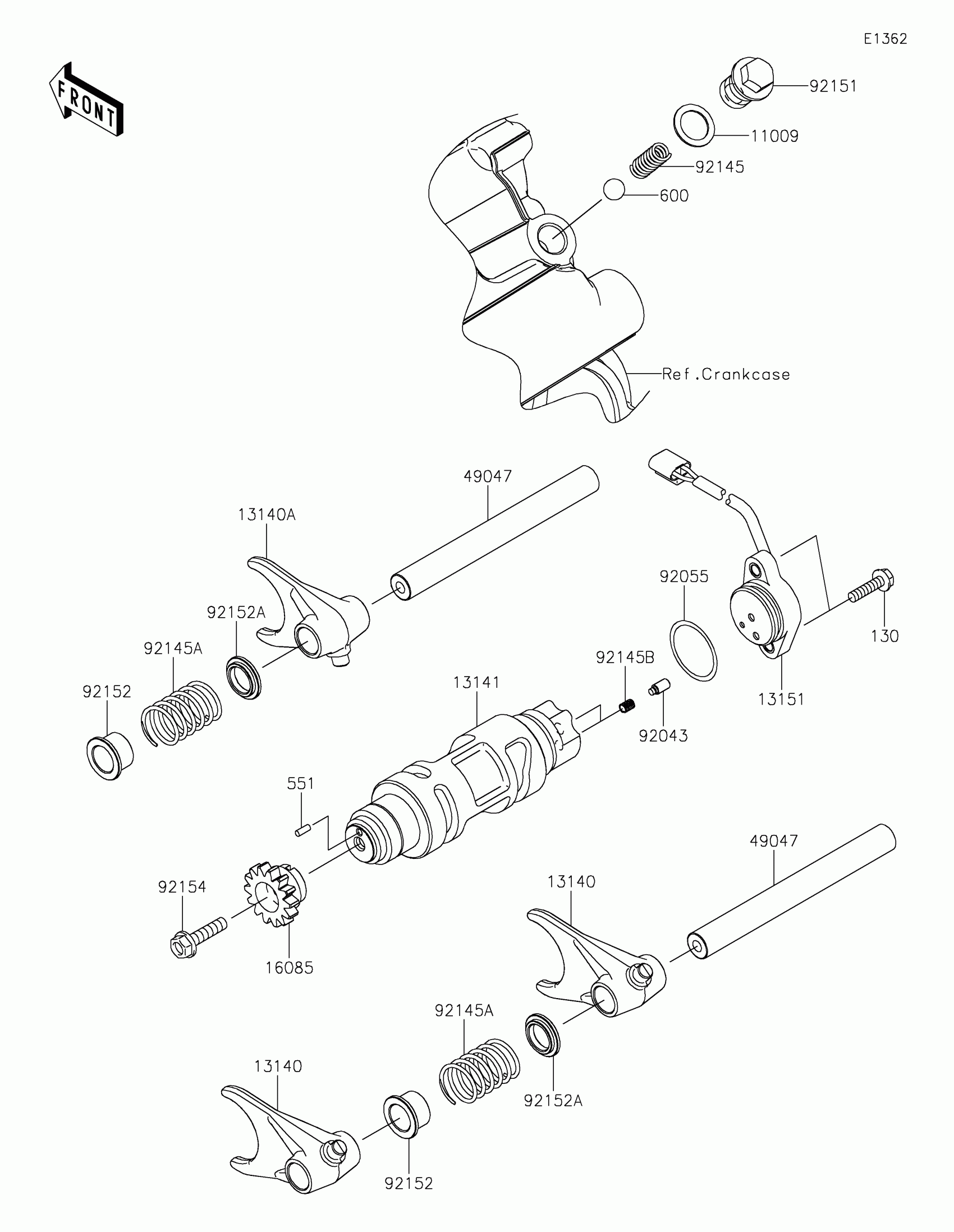

2021 Kawasaki TERYX4™ S Gear Change Drum/shift Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,15.5X22X1

11009-1008

1

$2.92

In stock

13140

FORK-SHIFT,COUNTER

13140-0622

1

$50.29

In stock

13140A

FORK-SHIFT,INPUT

13140-0623

1

$50.29

In stock

13141

DRUM-CHANGE

13141-0576

1

$112.37

In stock

13151

1

$48.80

In stock

16085

GEAR,14T

16085-0589

1

$73.13

In stock

49047

ROD-SHIFT

49047-0619

1

$33.87

In stock

92043

PIN

92043-1654

1

$2.97

In stock

92055

RING-O,27.7X2.4

92055-091

1

$4.93

In stock

92145

SPRING

92145-0828

1

$1.93

In stock

92145A

SPRING

92145-0898

1

$3.92

In stock

92145B

SPRING

92145-1414

1

$3.16

In stock

92151

BOLT

92151-1451

1

$14.44

In stock

92152

COLLAR,14X18X12.5

92152-2156

1
Out of stock

92152A

COLLAR,14X18X4

92152-2157

1
Out of stock

92154

BOLT,FLANGED,6X25

92154-0707

1

$1.10

In stock

130

BOLT-FLANGED,5X20

130BA0520

1

$0.92

In stock

551

PIN DOWEL 3X8

551A0308

1

$0.59

In stock

600

1

$0.90

In stock
