2021 Kawasaki TERYX4™ S Drive Shaft-Propeller Diagram

← All diagrams

Find the part on the Drive Shaft-Propeller diagram for your 2021 Kawasaki TERYX4™ S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

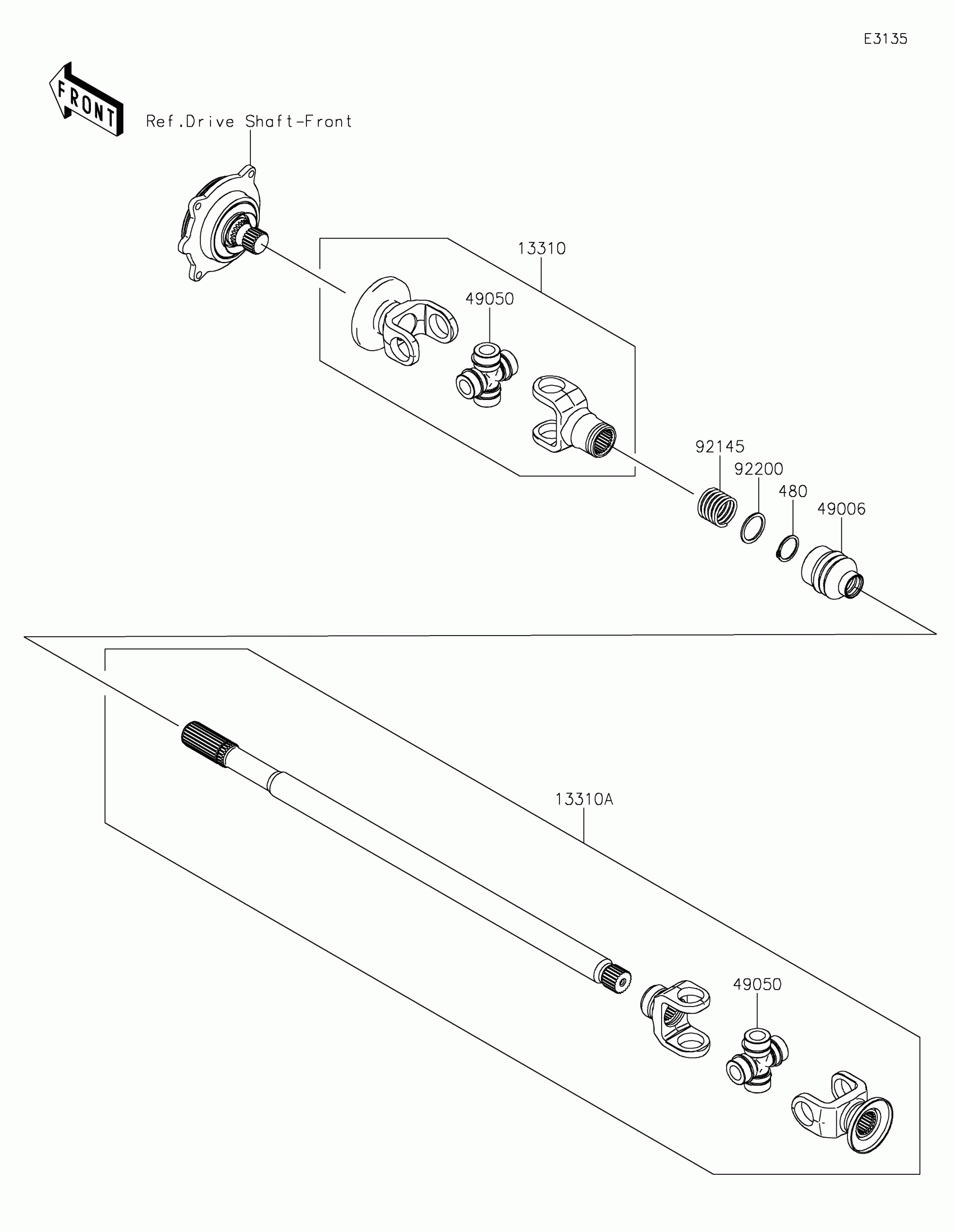

2021 Kawasaki TERYX4™ S Drive Shaft-Propeller Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13310

1

$142.45

In stock

13310A

1

$260.93

In stock

49006

BOOT,GEAR ASSY SIDE

49006-0108

1
Out of stock

49050

SPIDER

49050-0034

1
Out of stock

92145

SPRING

92145-0823

1
Out of stock

92200

WASHER,25X31X1.5

92200-0600

1
Out of stock

480

CIRCLIP-TYPE-C,24MM

480J2400

1
Out of stock
