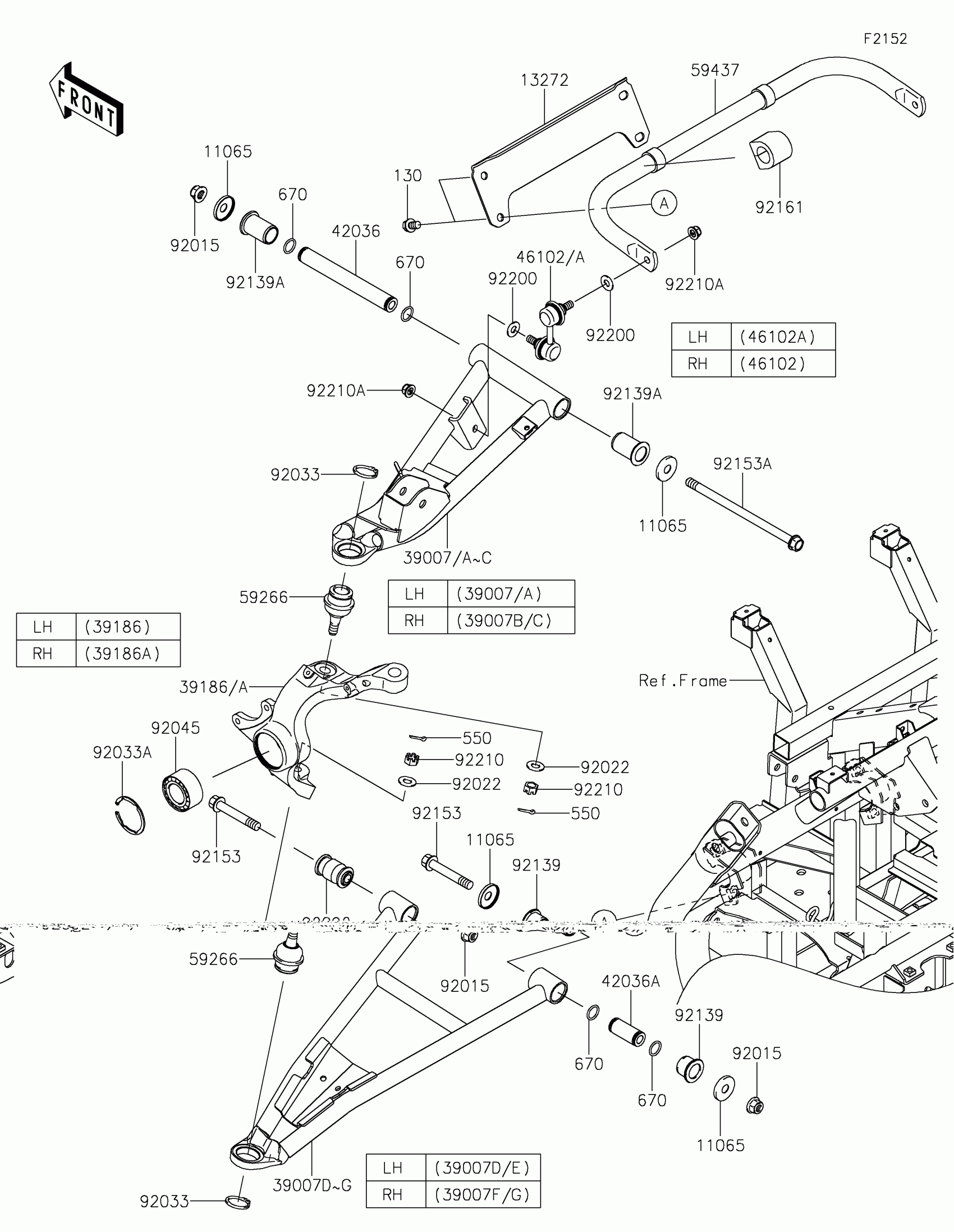

Kawasaki TERYX4™ S Front Suspension Diagram

#

Description
Price

11065

CAP

11065-0253

$3.87

13272

PLATE

13272-1650

$48.88

39007

ARM-SUSP,FR,UPP,LH,P.C.L.GREEN

39007-0445-42Q

$152.87

39007A

ARM-SUSP,FR,UPP,LH,P.C.P.RED

39007-0445-57C

$152.87

39007B

ARM-SUSP,FR,UPP,RH,P.C.L.GREEN

39007-0446-42Q

$152.87

39007C

ARM-SUSP,FR,UPP,RH,P.C.P.RED

39007-0446-57C

$152.87

39007D

ARM-SUSP,FR,LWR,LH,P.C.L.GREEN

39007-0447-42Q

$136.75

39007E

ARM-SUSP,FR,LWR,LH,P.C.P.RED

39007-0447-57C

$136.75

39007F

ARM-SUSP,FR,LWR,RH,P.C.L.GREEN

39007-0448-42Q

$136.75

39007G

ARM-SUSP,FR,LWR,RH,P.C.P.RED

39007-0448-57C

$136.75

39186

KNUCKLE,FR,LH

39186-0311

$190.27

39186A

KNUCKLE,FR,RH

39186-0312

$190.27

42036

SLEEVE

42036-0061

$46.79

42036A

SLEEVE

42036-0062

$23.84

46102

ROD,STABILIZER,LH

46102-0100

$48.58

46102A

ROD,STABILIZER,RH

46102-0101

$48.58

59266

JOINT-BALL

59266-0711

$96.44

59437

STABILIZER,FR

59437-0010

$112.69

92015

NUT,LOCK,FLANGED,12MM

92015-1433

$8.86

92022

WASHER

92022-1831

$5.52

92033

RING-SNAP,C-TYPE,32MM

92033-1262

$6.41

92033A

RING-SNAP,55MM

92033-1274

$9.43

92045

BEARING-BALL,30X55X32

92045-0800

$34.89

92092

BUSHING-RUBBER

92092-0555

$19.13

92139

BUSHING

92139-0231

$7.69

92139A

BUSHING,22.4X28.2X46

92139-0806

$8.22

92153

BOLT,FLANGED,12X76.5

92153-1733

$7.75

92153A

BOLT,FLANGED,12X213

92153-1958

$20.37

92161

DAMPER

92161-1508

$5.10

92200

WASHER,10.3X23X1.6

92200-2009

$1.35

92210

NUT,CASTLE,12MM

92210-0395

$3.86

92210A

NUT,LOCK,FLANGED,10MM

92210-1080

$10.28

130

BOLT-FLANGED,10X16

130CA1016

$3.35

550

PIN-COTTER,3.0X25

550AA3025

$0.62

670

O RING,18MM

670B2018

$1.42
