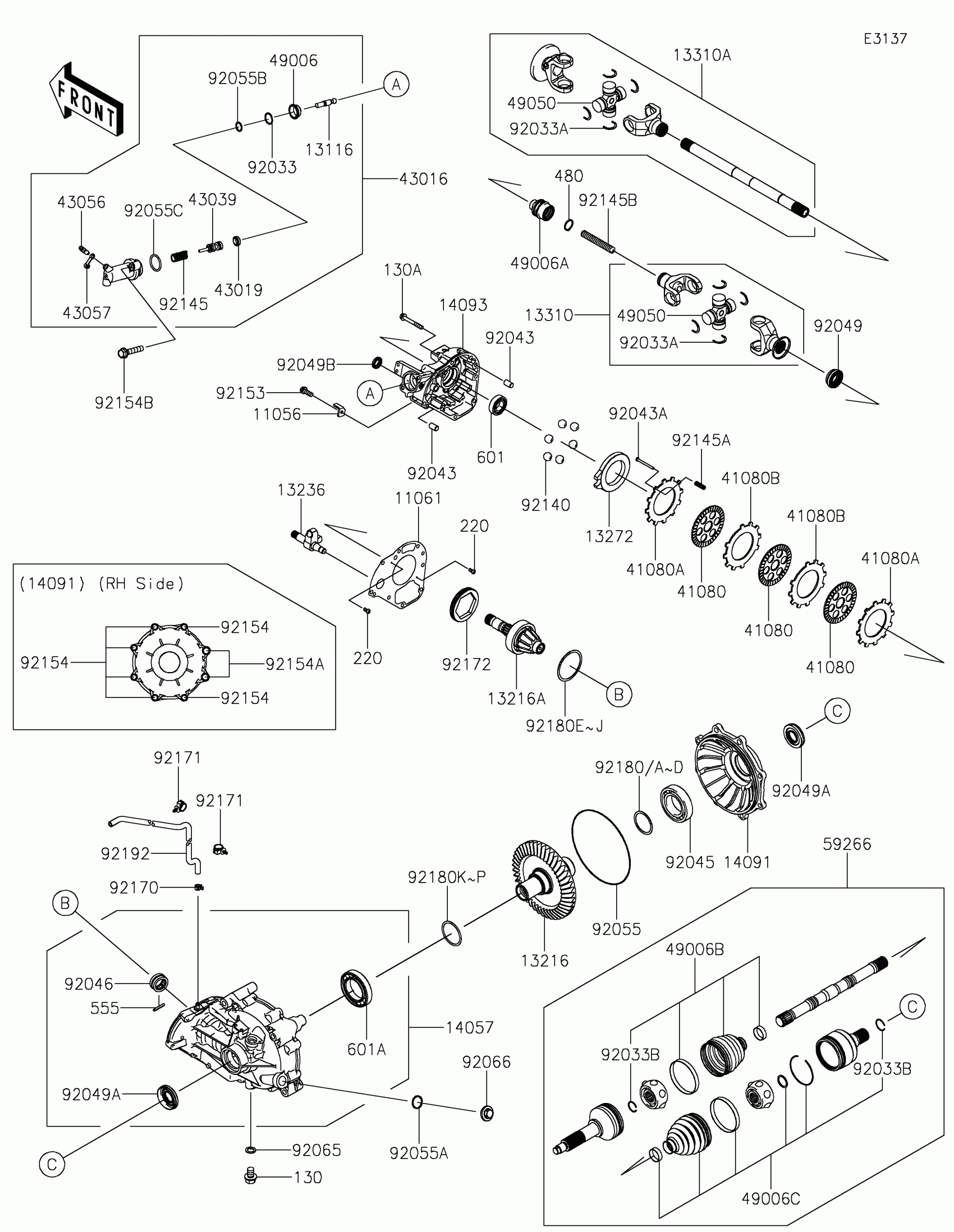

Kawasaki TERYX4™ S Drive Shaft-Rear Diagram

#

Description
Price

11056

BRACKET

11056-1447

$2.63

11061

GASKET,FR COVER

11061-0270

$31.86

13116

ROD-PUSH

13116-0026

$37.85

13216

GEAR-COMP,RING GEAR,44T

13216-0885

$327.67

13216A

GEAR-COMP,PINION,10T

13216-0886

$200.13

13236

LEVER-COMP,BRAKE

13236-0706

$96.51

13272

PLATE,CAM

13272-1203

$27.99

13310

SHAFT-ASSY,GEAR-ASSY SIDE

13310-0034

$323.67

13310A

SHAFT-ASSY,ENGINE SIDE

13310-0043

$377.13

14057

CASE-COMP-GEAR

14057-0019

$259.36

14091

COVER,RH

14091-0677

$133.34

14093

COVER,FR

14093-0428

$137.86

41080

DISC,FRICTION

41080-1482

$49.80

41080A

DISC,PRESSURE

41080-1483

$18.80

41080B

DISC,SEPARATER

41080-1484

$18.80

43016

CYLINDER-MASTER

43016-0556

$266.92

43019

CUP-BRAKE

43019-0002

$5.60

43039

PISTON-BRAKE

43039-0006

$41.96

43056

BREATHER-BRAKE

43056-1056

$14.30

43057

CAP-BREATHER

43057-1001

$4.91

49006

BOOT

49006-0072

$10.21

49006A

BOOT,GEAR ASSY SIDE

49006-0108

$6.54

49006B

BOOT,OUTSIDE

49006-0639

$94.97

49006C

BOOT,INSIDE

49006-0640

$94.97

49050

SPIDER

49050-0027

$115.74

59266

JOINT-BALL,RR,CVJ

59266-0746

$656.29

92033

RING-SNAP

92033-0055

$3.87

92033A

RING-SNAP

92033-0735

$1.47

92033B

RING-SNAP

92033-0839

$6.22

92043

PIN,8X14

92043-1567

$2.26

92043A

PIN,3X35

92043-1617

$2.41

92045

BEARING-BALL,6210CM

92045-1213

$55.61

92046

BEARING-NEEDLE,AH502802

92046-0024

$27.86

92049

SEAL-OIL,25X45X9.5

92049-0739

$13.49

92049A

SEAL-OIL

92049-0773

$16.84

92049B

SEAL-OIL,TC17X28X6

92049-1537

$11.81

92055

RING-O,190.2X4.2

92055-0121

$20.37

92055A

RING-O

92055-0122

$3.90

92055B

RING-O

92055-0146

$5.65

92055C

RING-O

92055-0147

$7.75

92065

GASKET,10.5X16X1

92065-058

$3.96

92066

PLUG

92066-1303

$12.96

92140

BALL,D/O#12

92140-1064

$2.39

92145

SPRING

92145-0882

$15.66

92145A

SPRING,RR BRAKE

92145-1301

$1.84

92145B

SPRING,PROPELLER SHAFT

92145-1304

$3.23

92153

BOLT,FLANGED-SMALL,6X16

92153-1729

$2.15

92154

BOLT,10X35

92154-1823

$3.26

92154A

BOLT,12X35

92154-1824

$4.18

92154B

BOLT,FLANGED,8X40

92154-1825

$7.75

92170

CLAMP

92170-2043

$1.19

92171

CLAMP

92171-0453

$3.54

92172

SCREW,SET,85X11.5

92172-1122

$66.83

92180

SHIM,T=0.95

92180-0813

Unavailable

92180A

SHIM,T=1.10

92180-0814

Unavailable

92180B

SHIM,T=1.15

92180-0815

Unavailable

92180C

SHIM,T=1.30

92180-0816

Unavailable

92180D

SHIM,T=1.40

92180-0817

Unavailable

92180E

SHIM,70X80X0.15

92180-0972

Unavailable

92180F

SHIM,70X80X0.2

92180-0973

Unavailable

92180G

SHIM,70X80X0.5

92180-0974

Unavailable

92180H

SHIM,70X80X0.8

92180-0975

Unavailable

92180I

SHIM,70X80X1.0

92180-0976

Unavailable

92180J

SHIM,70X80X1.2

92180-0977

Unavailable

92180K

SHIM,55X64X0.15

92180-1417

Unavailable

92180L

SHIM,55X64X0.20

92180-1418

Unavailable

92180M

SHIM,55X64X0.50

92180-1419

Unavailable

92180N

SHIM,55X64X0.80

92180-1420

Unavailable

92180O

SHIM,55X64X1.00

92180-1421

Unavailable

92180P

SHIM,55X64X1.20

92180-1422

Unavailable

92192

TUBE,BREATHER

92192-1473

$6.99

130

BOLT-FLANGED,10X14

130BA1014

$4.76

130A

BOLT-FLANGED,8X60

130CA0860

$1.77

220

SCREW-PAN-CROS,4X8

220AA0408

$0.68

480

CIRCLIP-TYPE-C,25MM

480J2500

$2.03

555

PIN-SPRING

555A0428

$2.30

601

BEARING-BALL

601A6005

$13.82

601A

BEARING-BALL

601A6011

$43.66
