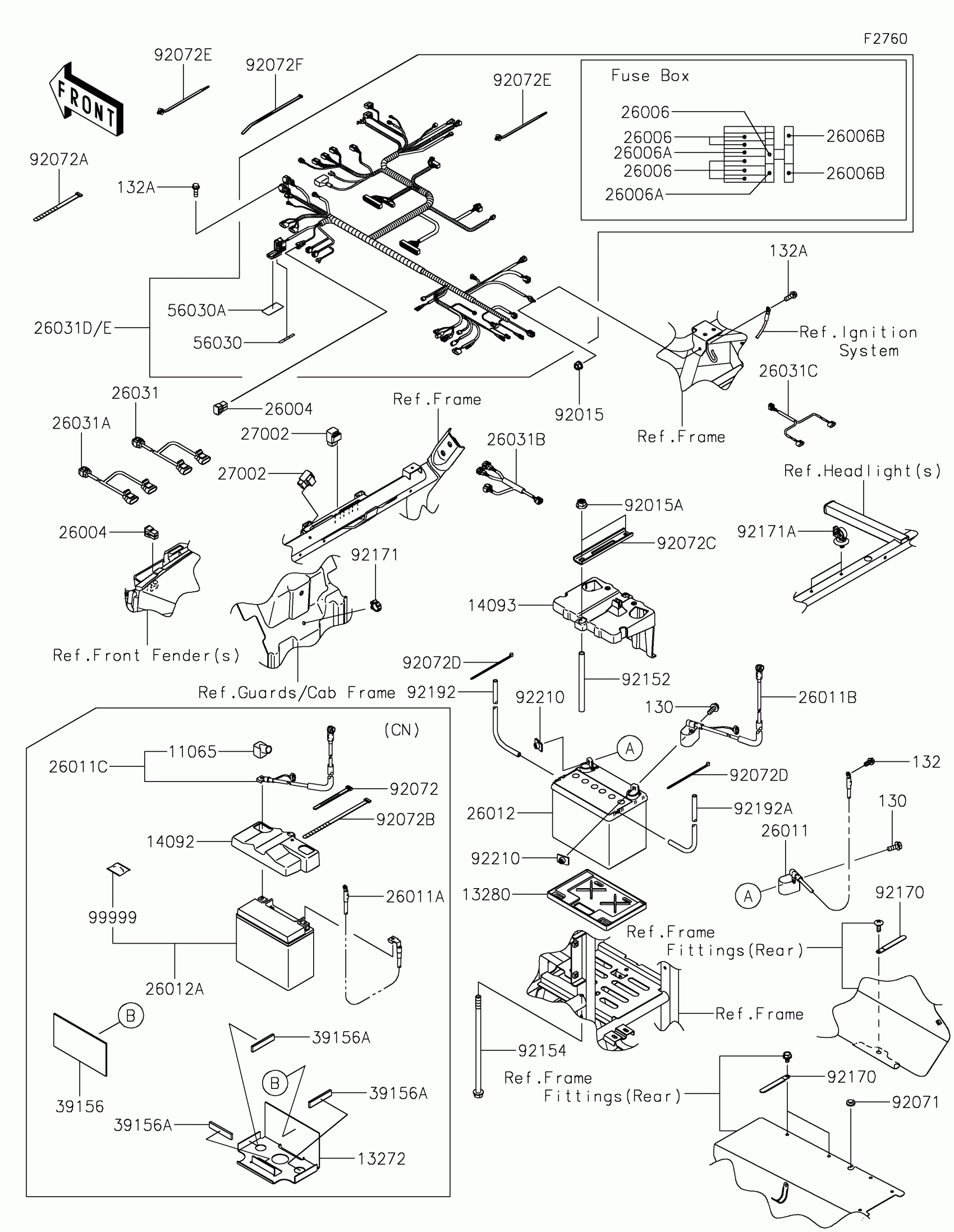

Kawasaki TERYX4™ S Chassis Electrical Equipment Diagram

#

Description
Price

11065

CAP

11065-0755

Unavailable

13272

PLATE,BATTERY BOTTOM

13272-1322

$9.43

13280

HOLDER,BATTERY

13280-0709

$7.80

14092

COVER,BATTERY

14092-0978

$7.99

26004

FUSE-ASSY,40A

26004-0035

$4.11

26006

FUSE,MINI BLADE,10A,RED

26006-0009

Unavailable

26006A

FUSE,MINI BLADE,20A,YELLOW

26006-1079

$4.87

26006B

FUSE,MINI BLADE,30A,GREEN

26006-1080

$4.87

26011A

WIRE-LEAD,BATTERY(-)

26011-1853

$47.40

26011C

WIRE-LEAD,BATTERY(+)

26011-1855

$88.74

26012A

BATTERY,YTX20L-BS,12V 18AH

26012-0787

Unavailable

26031

HARNESS,HEAD LAMP,RH,2P

26031-2387

$31.32

26031A

HARNESS,HEAD LAMP,LH,2P

26031-2428

$31.32

26031B

HARNESS,SUB,FI

26031-2430

$27.69

26031C

HARNESS,SUB,TAIL LAMP

26031-2431

$84.03

26031D

HARNESS,MAIN

26031-3758

$718.21

26031E

HARNESS,MAIN

26031-3759

$718.21

27002

RELAY-ASSY

27002-1062

$45.39

39156

PAD,175X94X3

39156-0837

Unavailable

39156A

PAD,15X72X5

39156-0838

Unavailable

56030

LABEL,FUSE BOX,30A

56030-0404

$3.77

56030A

LABEL,FUSE BOX

56030-0900

$2.94

92015

NUT,LOCK,FLANGED,6MM

92015-1339

$1.35

92015A

NUT,FLANGED,8MM

92015-1406

$4.45

92071

GROMMET,10X20X6

92071-0733

$0.95

92072

BAND,L=123

92072-030

$5.00

92072A

BAND,L=149

92072-031

$5.00

92072B

BAND,L=218

92072-032

$5.00

92072C

BAND

92072-0707

$7.59

92072E

BAND,OS170-FT7(BLACK)

92072-1414

$3.74

92072F

BAND,L=292.1

92072-3509

Unavailable

92152

COLLAR,10.2X12.7X165.8

92152-1555

$3.21

92154

BOLT,FLANGED,8X185

92154-0889

$9.17

92170

CLAMP

92170-1925

$2.40

92171

CLAMP,BRAKE HOSE

92171-0316

$3.88

99999

BOLT NUT KIT

99999-0311

$10.55

132

BOLT-FLANGED-SMALL,6X12

132BA0612

$1.20

132A

BOLT-FLANGED-SMALL,6X16

132BA0616

$1.51
