Description

Price

13107

SHAFT,REVERSE

13107-0715

$47.72

13107A

SHAFT,COUNTER

13107-0716

$103.31

13127

SHAFT-TRANSMISSION INPUT,17T

13127-0654

$326.43

13139

SHIFTER,INPUT HI

13139-0624

$51.37

13139A

SHIFTER,OUTPUT

13139-0625

$53.53

13262

GEAR,INPUT REVERSE,12T

13262-0861

$71.76

13262A

GEAR,REVERSE IDLE,16T

13262-0862

$67.23

13262B

GEAR,OUTPUT REVERSE,18T

13262-0865

$112.82

13262C

GEAR,OUTPUT LOW,31T

13262-0867

$100.90

13262D

GEAR,INPUT HI,26T

13262-1551

$97.59

13262E

GEAR,OUTPUT HI,28T

13262-1552

$72.75

13262F

GEAR,OUTPUT,19T

13262-1553

$128.28

92022

WASHER,25.3X32X1

92022-1800

$5.00

92046

BEARING-NEEDLE,182216E03 C3

92046-0605

$15.90

92139

BUSHING,25X28.3X16.7

92139-0107

$26.91

92139A

BUSHING,25X28X17.8

92139-0280

$34.79

92139B

BUSHING,20X24X18.7

92139-0707

$26.65

92200

WASHER,20.2X30X1.8

92200-0221

$3.90

92200A

WASHER,18.2X28X1.5

92200-0716

$3.02

92200B

WASHER,28.5X38X1.5

92200-0717

$3.74

92200C

WASHER,22.2X36X3.6

92200-0718

$8.58

92200D

WASHER,25.2X31.0X1.5

92200-1239

$7.84

480

CIRCLIP-TYPE-C,18MM

480J1800

$1.28

480A

CIRCLIP-TYPE-C,24MM

480J2400

$6.32

480B

CIRCLIP-TYPE-C,28MM

480J2800

$4.70

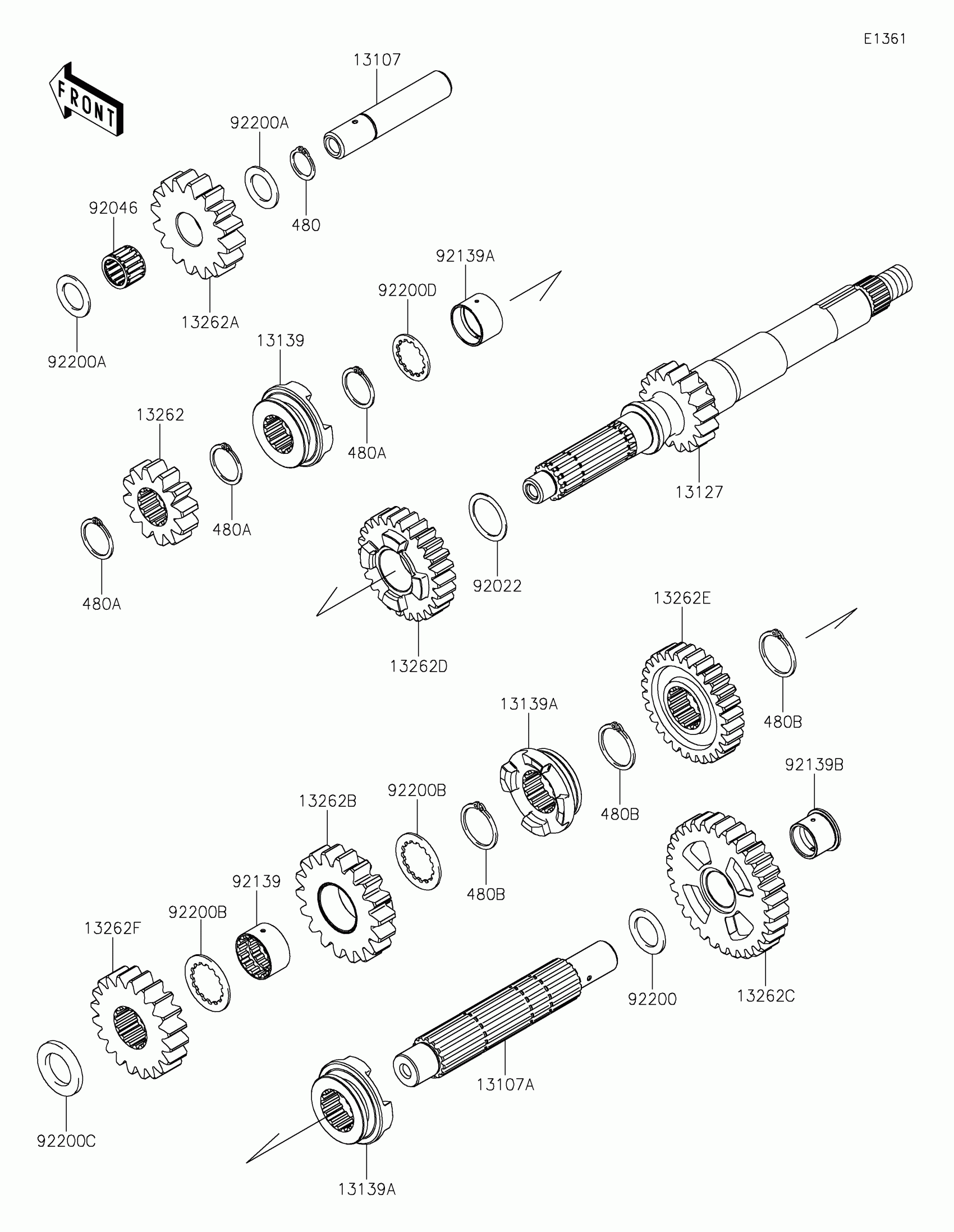

Kawasaki TERYX4™ S CAMO Transmission Diagram
