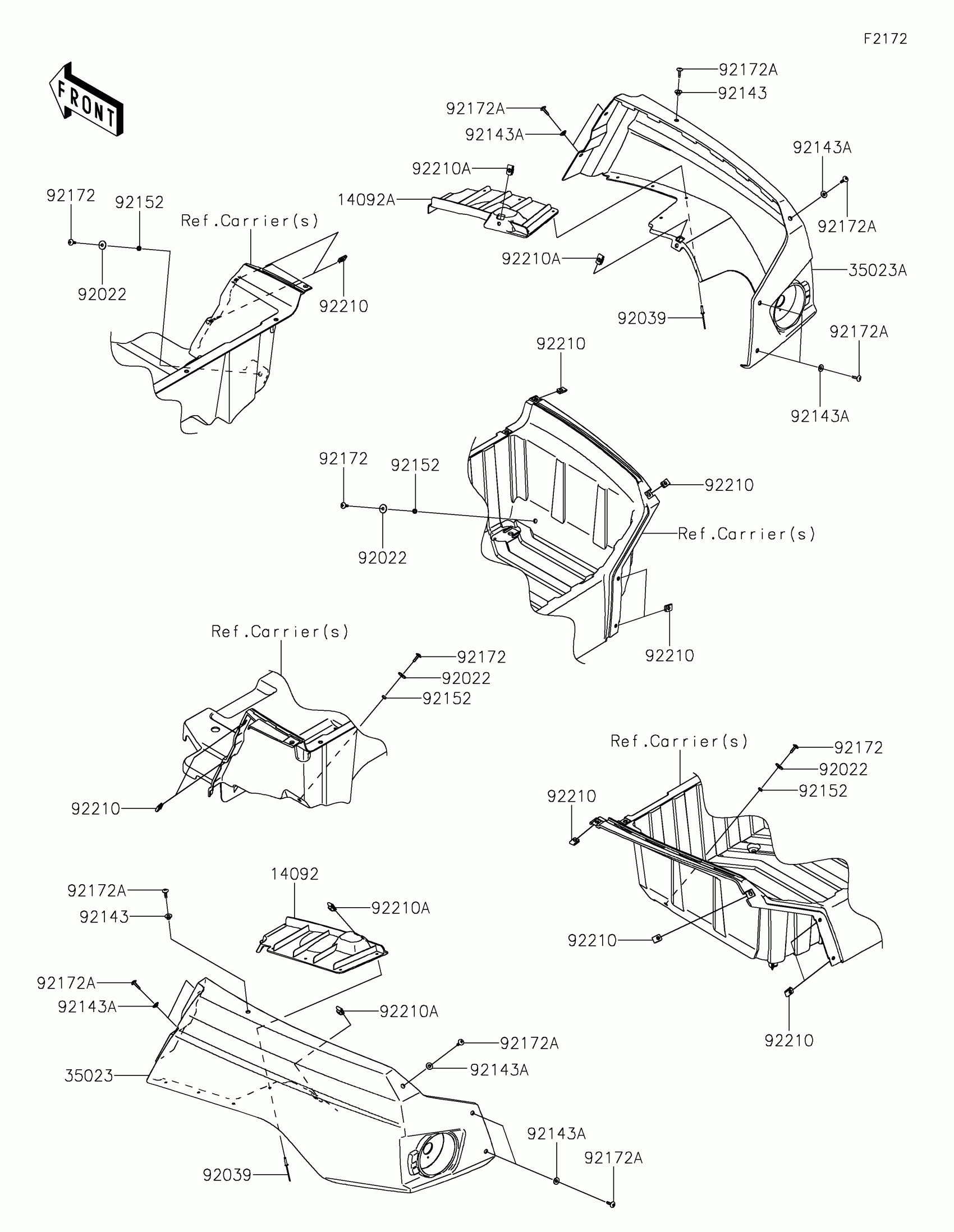

Kawasaki TERYX4™ S CAMO Rear Fender(s) Diagram

Description

Price

14092

COVER,INNER,LH

14092-0863

$31.37

14092A

COVER,INNER,RH

14092-0864

$31.37

35023

FENDER-REAR,LH,S.BLACK

35023-0307-839

$80.66

35023A

FENDER-REAR,RH,S.BLACK

35023-0308-839

$80.66

92022

WASHER,6.5X20X1.6,BLACK

92022-1346

$0.48

92039

RIVET,5X23.3

92039-0769

$1.36

92143

COLLAR

92143-1057

$3.81

92143A

COLLAR

92143-1087

$2.98

92152

COLLAR,6.3X10X3

92152-1834

$3.74

92172

SCREW,6X18

92172-0002

$1.98

92172A

SCREW,TAPPING,6X20

92172-0488

$2.11

92210

NUT,LEAF SPRING,6MM

92210-0624

$1.66

92210A

NUT,6MM

92210-0891

$5.66
