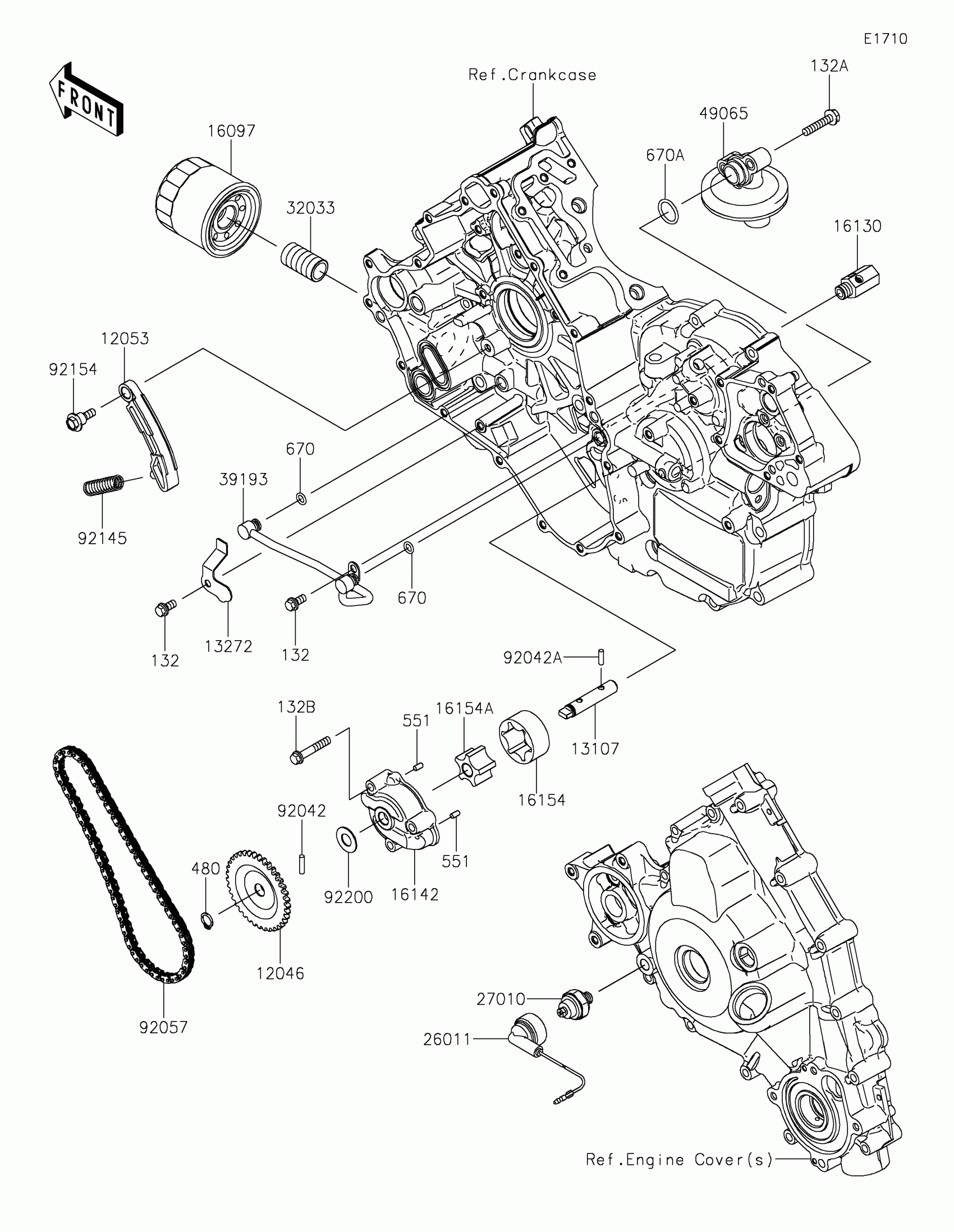

Kawasaki TERYX4™ S CAMO Oil Pump/Oil Filter Diagram

Description

Price

12046

SPROCKET,OIL PUMP,37T

12046-0577

$89.63

12053

GUIDE-CHAIN

12053-0180

$20.80

13107

SHAFT,OIL PUMP

13107-0718

$10.15

13272

PLATE

13272-0988

$2.44

16097

FILTER-ASSY-OIL

16097-0007

$11.75

16130

VALVE-ASSY-RELIEF

16130-1058

$37.32

16142

COVER-PUMP

16142-0704

$19.93

16154

ROTOR-PUMP,OUTER

16154-0706

$21.30

16154A

ROTOR-PUMP,INNER

16154-0707

$16.06

26011

WIRE-LEAD

26011-0818

$10.32

27010

SWITCH,OIL PRESSURE

27010-1313

$35.72

32033

PIPE,OIL FILTER

32033-1535

$9.85

39193

PIPE-OIL

39193-0570

$34.65

49065

FILTER-OIL

49065-0710

$25.41

92042

PIN,DOWEL,4X16.8

92042-029

$4.31

92042A

PIN,DOWEL,4X13.8

92042-030

$2.99

92057

CHAIN,DID SCR-0409 SV

92057-0561

$26.73

92145

SPRING

92145-0830

$3.25

92154

BOLT,FLANGED,6X8.3

92154-0709

$8.37

92200

WASHER,11.3X23X1

92200-0719

$2.19

132

BOLT-FLANGED-SMALL,6X12

132BA0612

$0.97

132A

BOLT-FLANGED-SMALL,6X30

132BA0630

$1.87

132B

BOLT-FLANGED-SMALL,6X35

132BA0635

$1.49

480

CIRCLIP-TYPE-C,11MM

480J1100

$0.95

551

PIN-DOWEL,4X8

551A0408

$0.68

670

O RING,7MM

670D1507

$1.24

670A

O RING,18MM

670D2018

$1.39
