2021 Kawasaki TERYX4™ S Camo Fuel Injection Diagram

← All diagrams

Find the part on the Fuel Injection diagram for your 2021 Kawasaki TERYX4™ S Camo, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

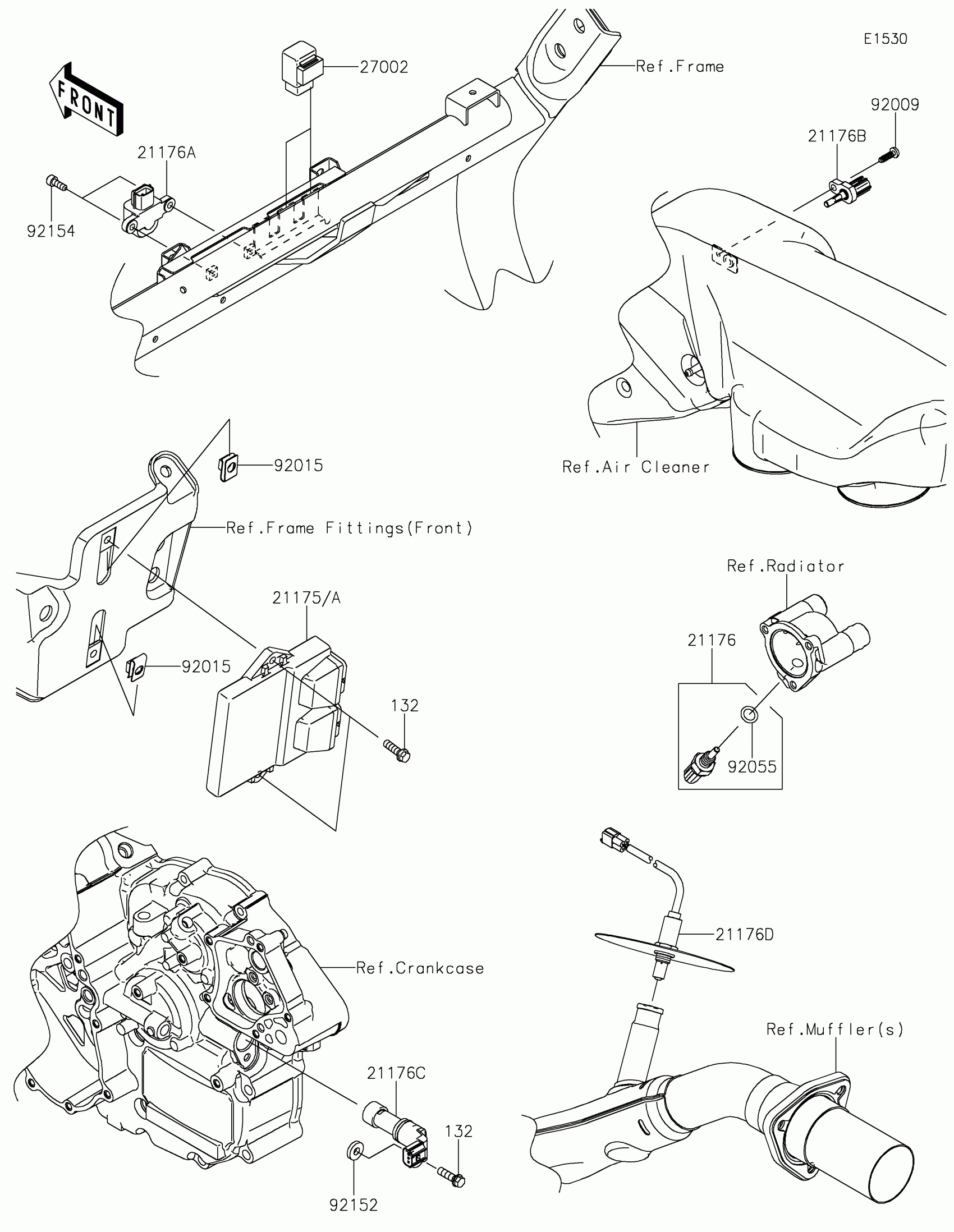

2021 Kawasaki TERYX4™ S Camo Fuel Injection Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21175

CONTROL UNIT-ELECTRONIC

21175-1151

1
Out of stock

21175A

CONTROL UNIT-ELECTRONIC

21175-1258

1
Out of stock

21176

SENSOR,WATER TEMP

21176-0009

1
Out of stock

21176A

SENSOR,VEHICLE-DOWN

21176-0026

1
Out of stock

21176B

SENSOR,AIR TEMPERATURE

21176-0048

1
Out of stock

21176C

SENSOR,SPEED

21176-0712

1
Out of stock

21176D

SENSOR,OXYGEN

21176-0935

1
Out of stock

27002

RELAY-ASSY

27002-1062

1
Out of stock

92009

SCREW,TAPPING,5X16

92009-1984

1
Out of stock

92015

NUT,6MM

92015-1602

1
Out of stock

92055

RING-O,9.5X1.9

92055-0016

1
Out of stock

92152

COLLAR,6.5X16X3.2

92152-1975

1
Out of stock

92154

BOLT,SOCKET,5X14

92154-1841

1
Out of stock

132

1

$2.05

In stock
← Fuel Evaporative System Fuel Pump →
