Chassis Electrical Equipment

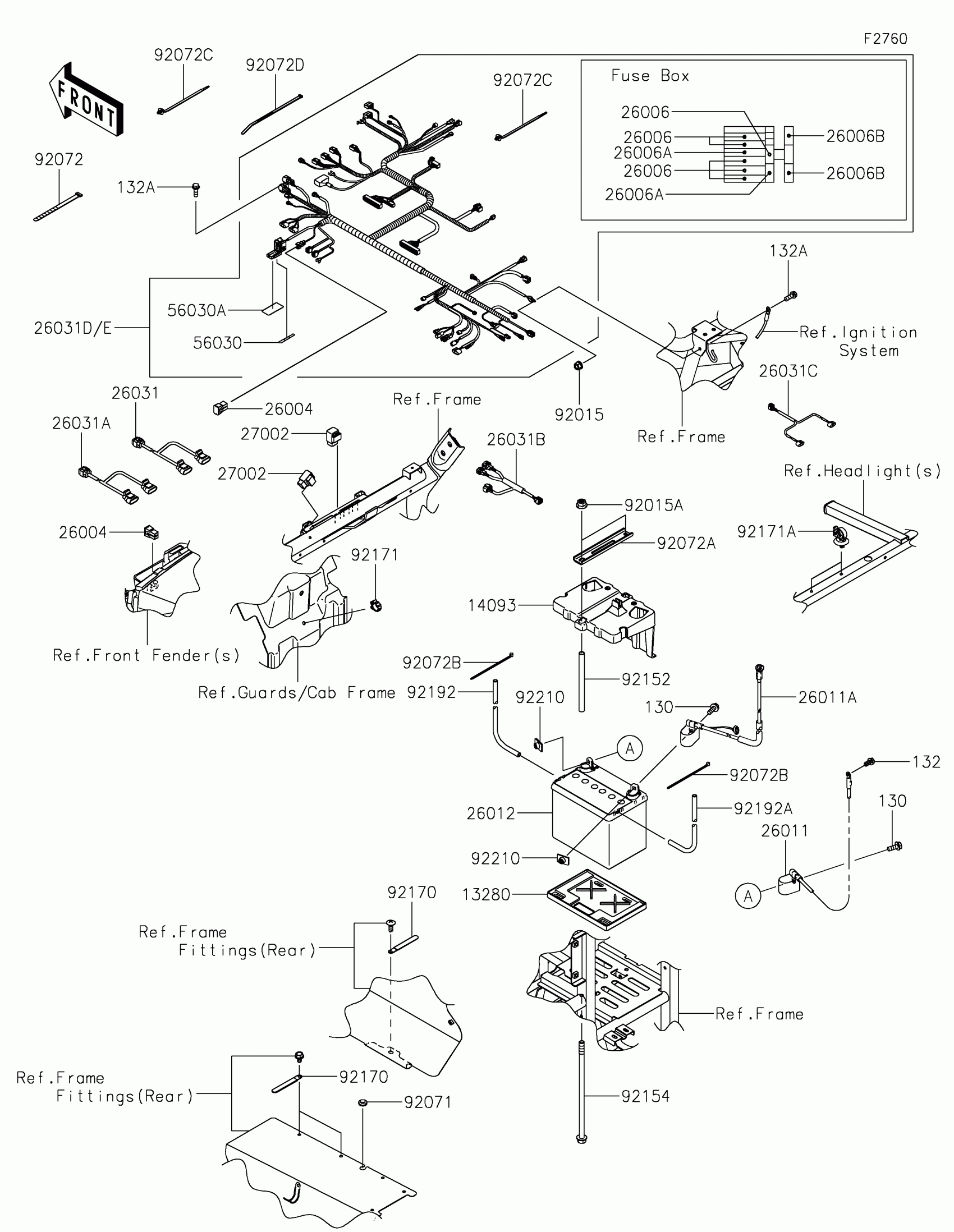

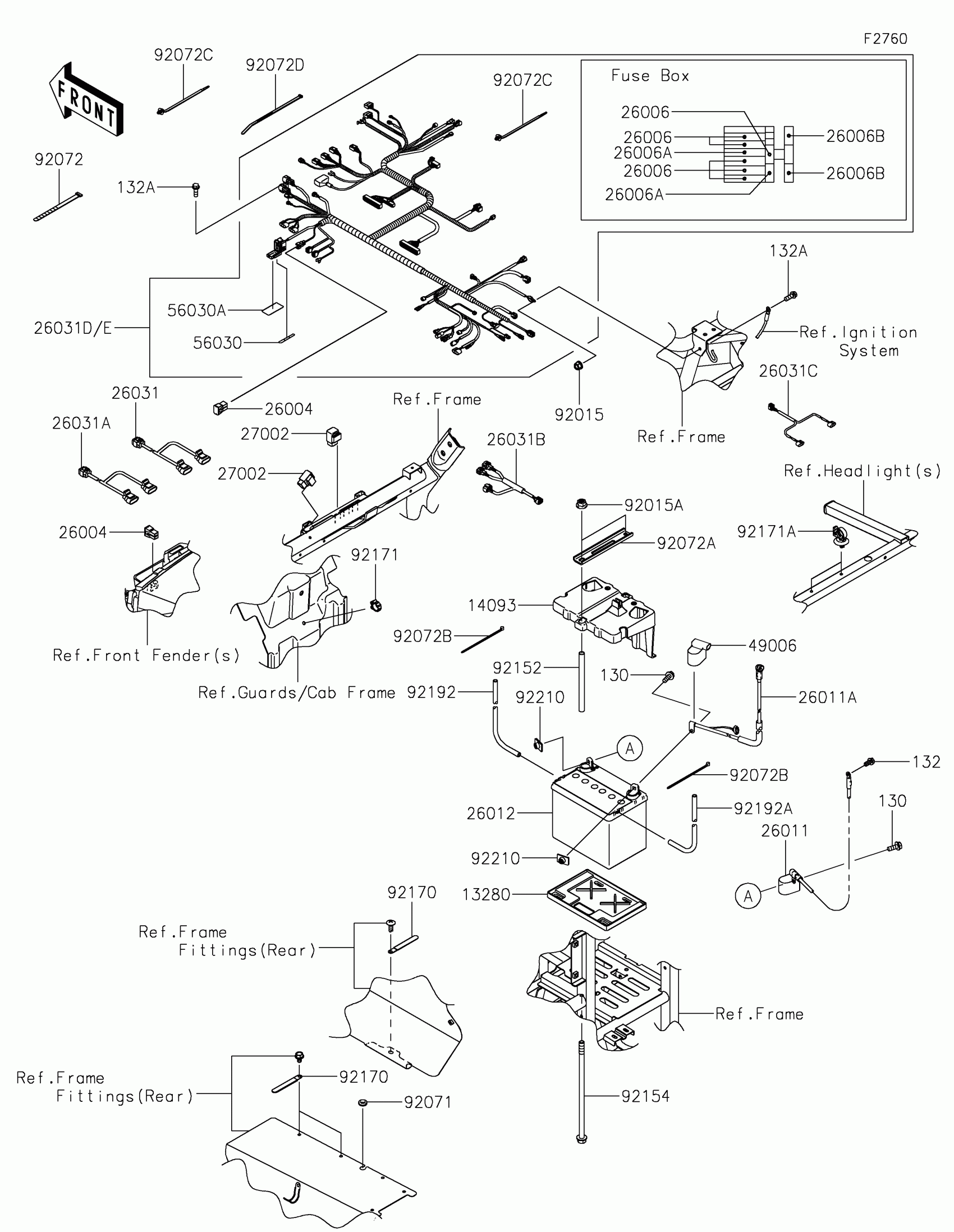

Kawasaki TERYX4™ S CAMO Chassis Electrical Equipment Diagram
#
13280
HOLDER,BATTERY
13280-0709
$7.80
14093
COVER,BATTERY
14093-0546
$7.99
26004
FUSE-ASSY,40A
26004-0035
$4.11
26006
FUSE,MINI BLADE,10A,RED
26006-0009
Unavailable
26006A
FUSE,MINI BLADE,20A,YELLOW
26006-1079
$4.87
26006B
FUSE,MINI BLADE,30A,GREEN
26006-1080
$4.87
26011
WIRE-LEAD,BATTERY(-)
26011-1852
$27.11
26011A
WIRE-LEAD,BATTERY (+)
26011-2423
$78.22
26012
BATTERY,12V 14AH
26012-0107
Unavailable
26031
HARNESS,HEAD LAMP,RH,2P
26031-2387
$31.32
26031A
HARNESS,HEAD LAMP,LH,2P
26031-2428
$31.32
26031B
HARNESS,SUB,FI
26031-2430
$27.69
26031C
HARNESS,SUB,TAIL LAMP
26031-2431
$84.03
26031D
HARNESS,MAIN
26031-3758
$718.21
26031E
HARNESS,MAIN
26031-3759
$718.21
27002
RELAY-ASSY
27002-1062
$45.39
49006
BOOT
49006-0648
$15.94
56030
LABEL,FUSE BOX,30A
56030-0404
$3.77
56030A
LABEL,FUSE BOX
56030-0900
$2.94
92015
NUT,LOCK,FLANGED,6MM
92015-1339
$1.35
92015A
NUT,FLANGED,8MM
92015-1406
$4.45
92071
GROMMET,10X20X6
92071-0733
$0.95
92072
BAND,L=149
92072-031
$5.00
92072A
BAND
92072-0707
$7.59
92072B
BAND,92X2.4
92072-0791
$0.42
92072C
BAND,OS170-FT7(BLACK)
92072-1414
$3.74
92072D
BAND,L=292.1
92072-3509
Unavailable
92152
COLLAR,10.2X12.7X165.8
92152-1555
$3.21
92154
BOLT,FLANGED,8X185
92154-0889
$9.17
92170
CLAMP
92170-1925
$2.40
92171
CLAMP,BRAKE HOSE
92171-0316
$3.88
92171A
CLAMP
92171-0453
$3.54
92192
TUBE,7X10X450
92192-1695
$1.89
92192A
TUBE,7X10X560
92192-1818
$2.41
92210
NUT,PLATE,6MM
92210-1352
$2.41
130
BOLT-FLANGED,6X16
130BA0616
$1.20
132
BOLT-FLANGED-SMALL,6X12
132BA0612
$1.20
132A
BOLT-FLANGED-SMALL,6X16
132BA0616
$1.51
