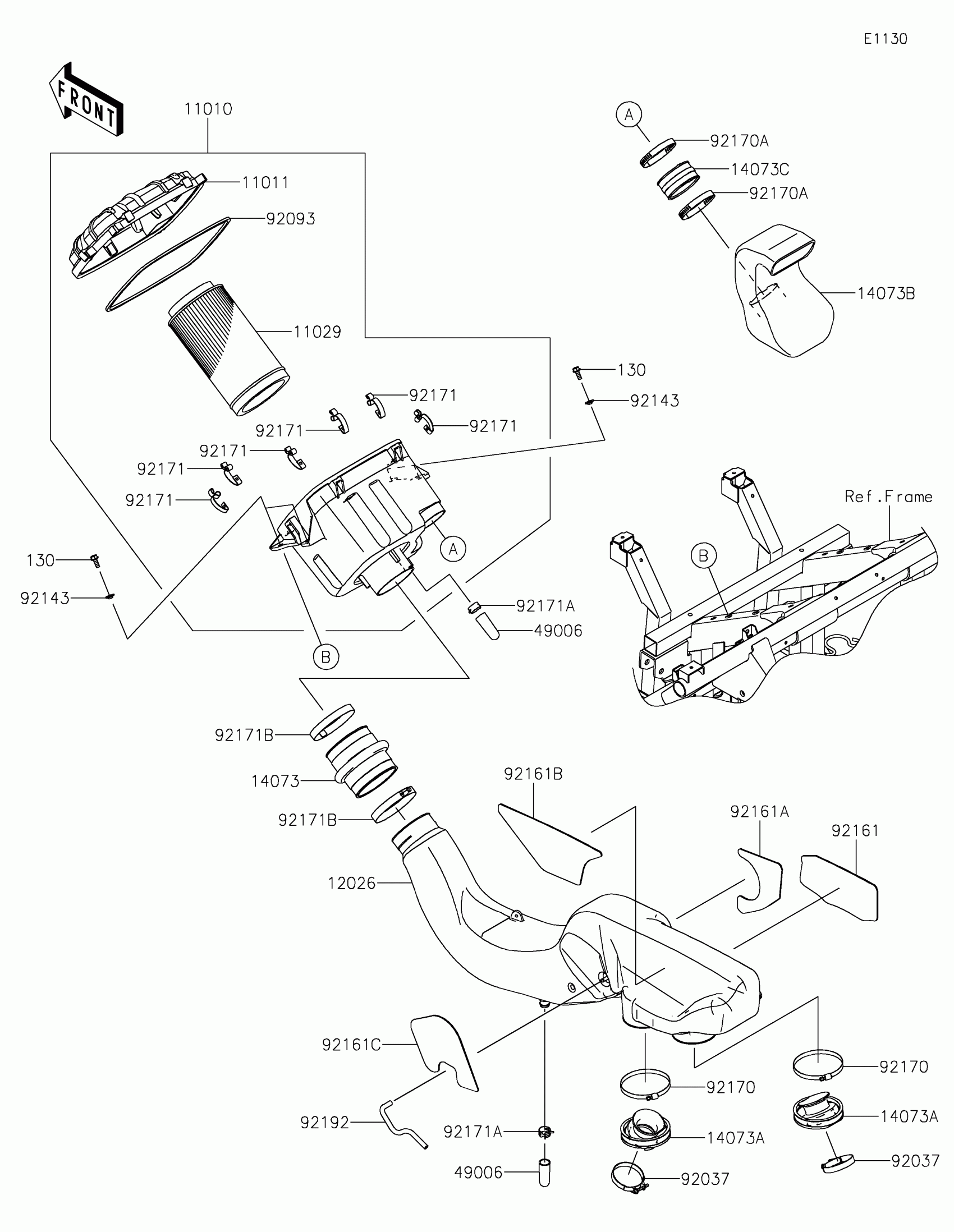

Kawasaki TERYX4™ S CAMO Air Cleaner Diagram

Description

Price

11010

FILTER-ASSY-AIR

11010-0777

$158.07

11011

CASE-AIR FILTER

11011-0784

$31.09

11029

ELEMENT-ASSY-AIR FILTER

11029-0025

$42.94

12026

CHAMBER

12026-0016

$191.87

14073

DUCT,JOINT,A/C SIDE

14073-0757

$14.11

14073A

DUCT,THROTTLE-CHAMBER

14073-0758

$11.04

14073B

DUCT,INTAKE

14073-0767

$33.62

14073C

DUCT,JOINT

14073-1775

$4.36

49006

BOOT

49006-1351

$7.51

92037

CLAMP

92037-1523

$12.35

92093

SEAL

92093-0585

$7.87

92143

COLLAR

92143-1087

$4.31

92161

DAMPER,CHAMBER,RH,RR

92161-1518

$15.71

92161A

DAMPER,CHAMBER,RH,FR

92161-1519

$16.25

92161B

DAMPER,CHAMBER,LH,RR

92161-1520

$24.54

92161C

DAMPER,CHAMBER,LH,FR

92161-1521

$24.01

92170

CLAMP

92170-1676

$9.36

92170A

CLAMP

92170-1764

$11.48

92171

CLAMP

92171-0225

$1.97

92171A

CLAMP

92171-1277

$2.75

92171B

CLAMP

92171-3716

$10.24

92192

TUBE,4X8X143

92192-1230

$6.18

130

BOLT-FLANGED,6X16

130AA0616

$0.56
