2018 Kawasaki TERYX4™ LE Rear Suspension Diagram

← All diagrams

Find the part on the Rear Suspension diagram for your 2018 Kawasaki TERYX4™ LE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

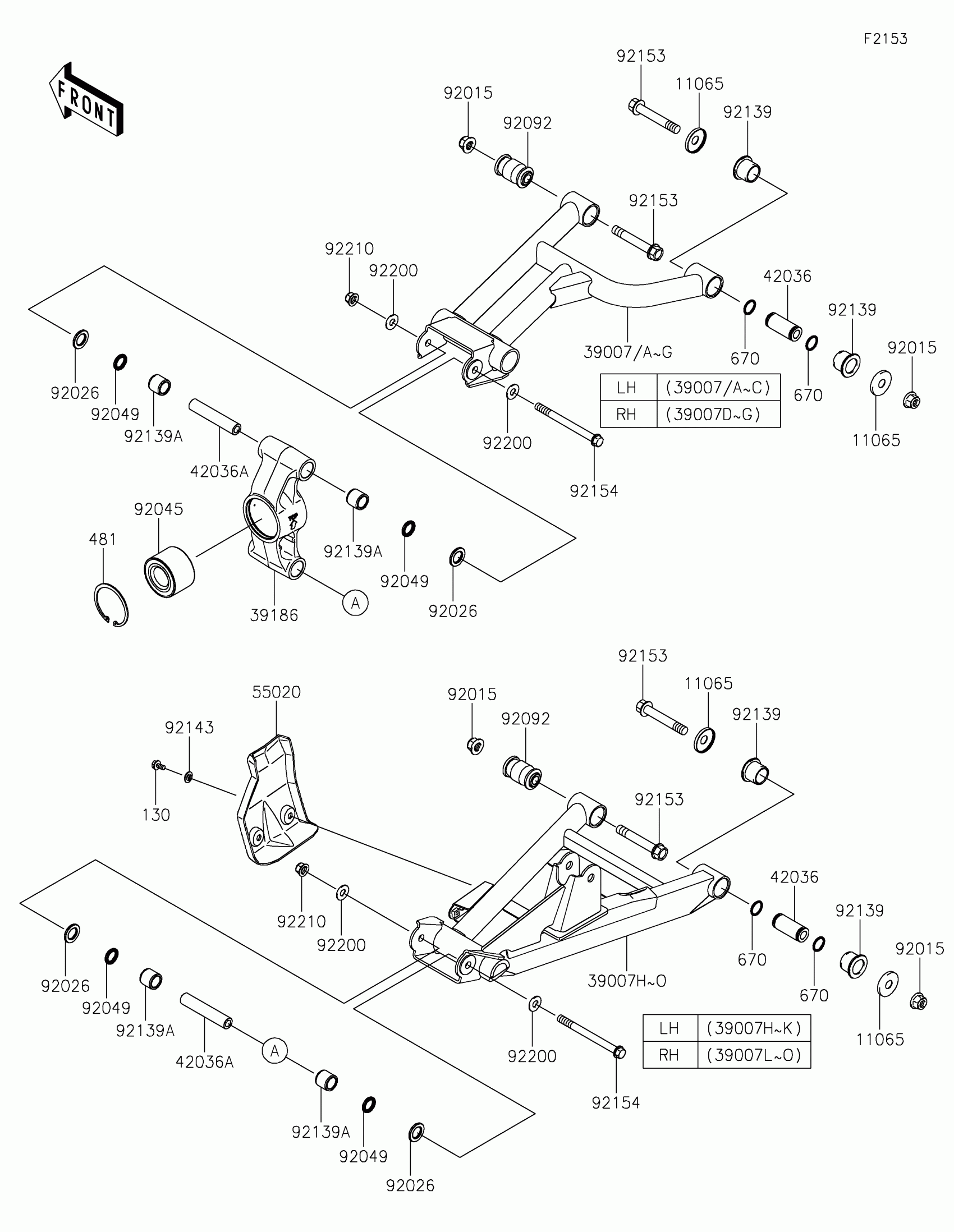

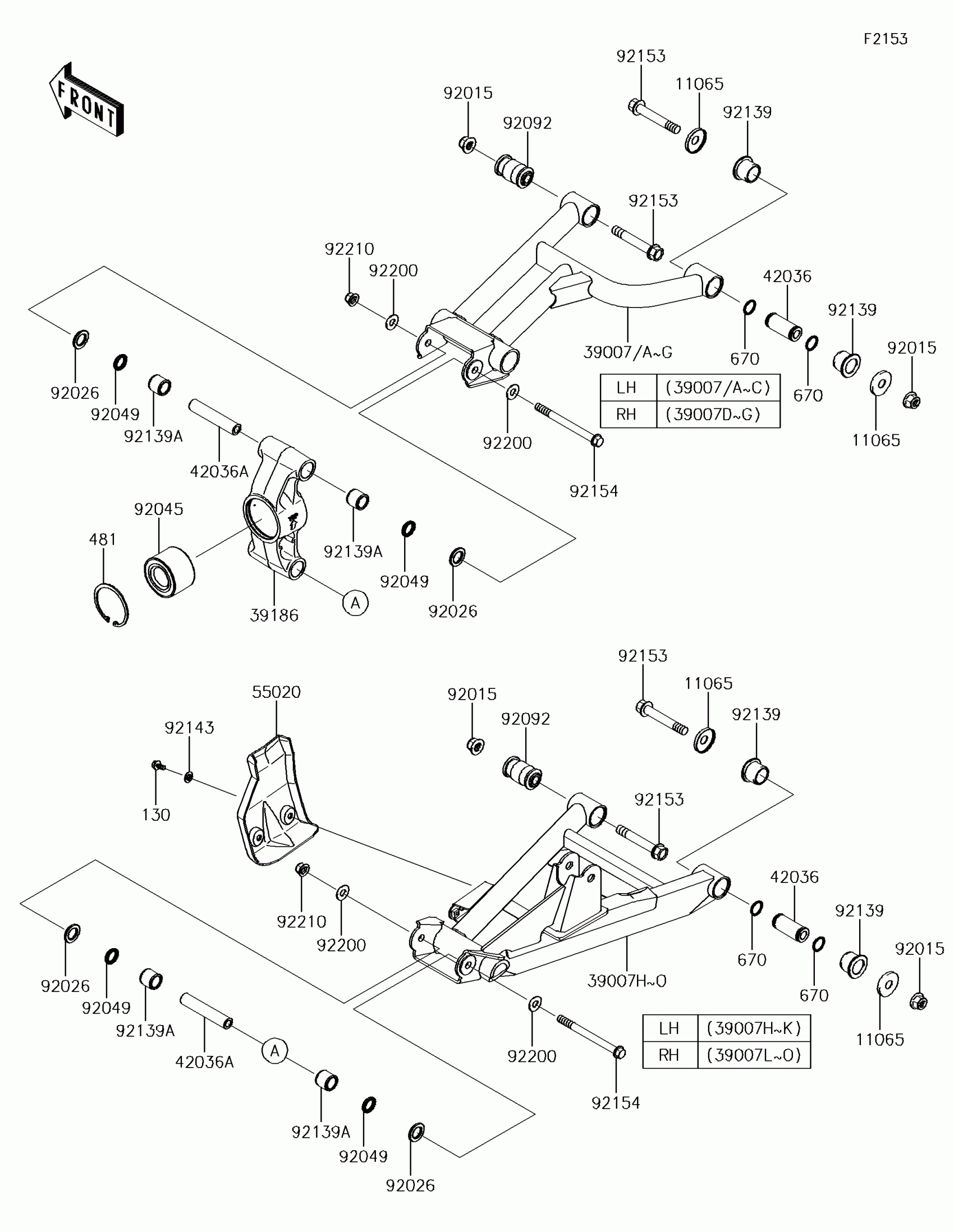

2018 Kawasaki TERYX4™ LE Rear Suspension Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP

11065-0253

1
Out of stock

39007

1

$133.00

In stock

39007A

1

$133.00

In stock

39007D

1

$133.00

In stock

39007E

1

$133.00

In stock

39007H

1

$133.00

In stock

39007I

1

$133.00

In stock

39007L

1

$133.00

In stock

39007M

1

$133.00

In stock

39186

KNUCKLE,RR

39186-0316

1

$151.47

In stock

42036

SLEEVE

42036-0062

1
Out of stock

42036A

SLEEVE,10X17X88

42036-0710

1
Out of stock

55020

GUARD,REAR ARM

55020-0805

1

$10.90

In stock

92015

NUT,LOCK,FLANGED,12MM

92015-1433

1
Out of stock

92026

SPACER,17X28.6X3

92026-0746

1
Out of stock

92045

BEARING-BALL,30X62X40

92045-0801

1
Out of stock

92049

SEAL-OIL,17X24X3

92049-0726

1
Out of stock

92092

BUSHING-RUBBER

92092-0555

1
Out of stock

92139

BUSHING

92139-0231

1
Out of stock

92139A

BUSHING,17X24X21.5

92139-0736

1
Out of stock

92143

COLLAR

92143-1087

1
Out of stock

92153

BOLT,FLANGED,12X76.5

92153-1733

1
Out of stock

92154

BOLT,FLANGED,10X117

92154-0743

1
Out of stock

92200

WASHER,10.3X23X1.6

92200-2009

1
Out of stock

92210

NUT,LOCK,FLANGED,10MM

92210-1080

1
Out of stock

130

BOLT-FLANGED,6X12

130BA0612

1

$1.46

In stock

481

CIRCLIP

481J6200

1
Out of stock

670

O RING,18MM

670B2018

1
Out of stock
