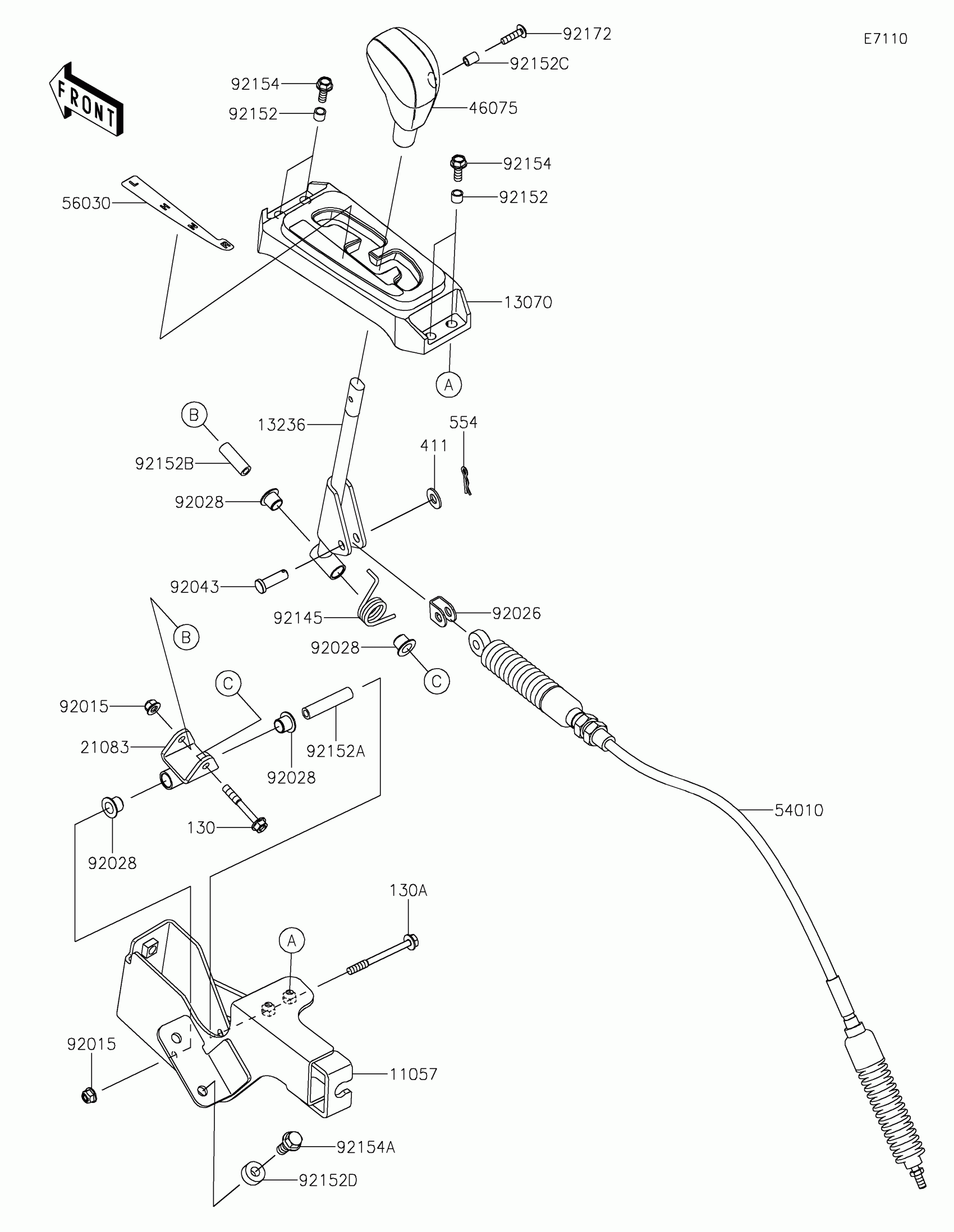

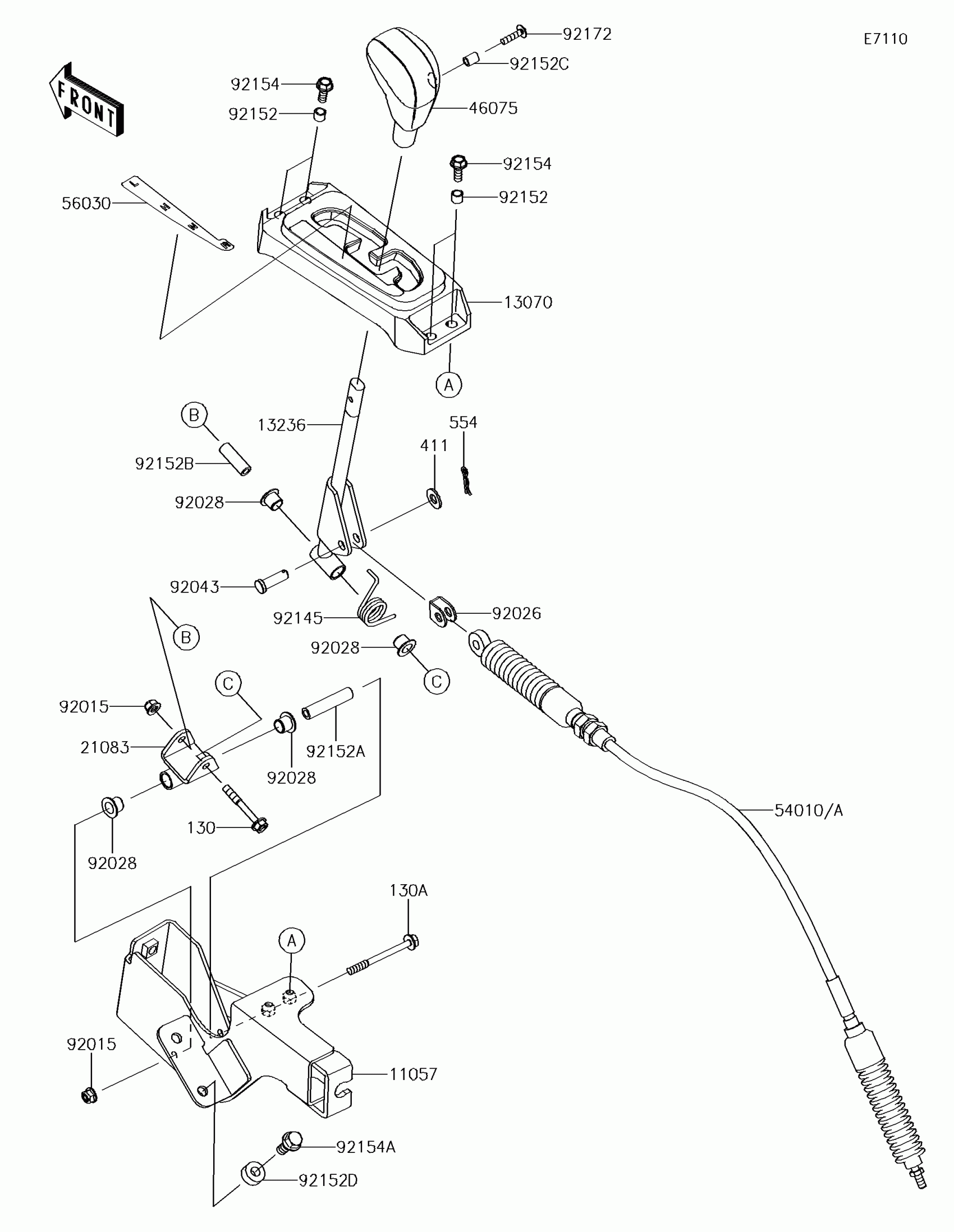

Kawasaki TERYX4™ LE Control Diagram

#

Description
Price

11057

BRACKET,SHIFT

11057-1494

$68.33

13070

GUIDE,SHIFT GAUGE

13070-0748

$21.31

13236

LEVER-COMP,SHIFT

13236-0727

$64.98

21083

ARM

21083-0710

$24.27

46075

GRIP

46075-0569

$21.39

54010

CABLE,SHIFT

54010-0583

Unavailable

54010A

CABLE,SHIFT

54010-0619

$118.66

56030

LABEL,SHIFT POSITION

56030-0849

$7.41

92015

NUT,LOCK,FLANGED,6MM

92015-1675

$3.29

92026

SPACER

92026-0074

$3.51

92028

BUSHING

92028-1507

$3.99

92043

PIN

92043-0053

$4.95

92145

SPRING

92145-0832

$4.66

92152

COLLAR

92152-1332

$3.19

92152A

COLLAR,6.0X10X47

92152-1517

$7.32

92152B

COLLAR,6.0X10X30

92152-1518

$4.97

92152C

COLLAR,5.6X8X10.5

92152-1545

$1.89

92152D

COLLAR,8.2X18X8

92152-1553

$5.15

92154

BOLT,FLANGED,6X16

92154-0887

$1.24

92154A

BOLT,FLANGED,8X20

92154-1104

$2.44

92172

SCREW,5X20

92172-2081

$0.66

130

BOLT-FLANGED,6X45

130CA0645

$1.11

130A

BOLT-FLANGED,6X65

130CA0665

$1.28

411

WASHER-PLAIN,8MM

411AA0800

Unavailable

554

PIN-SNAP

554DA0800

$1.05
