Radiator

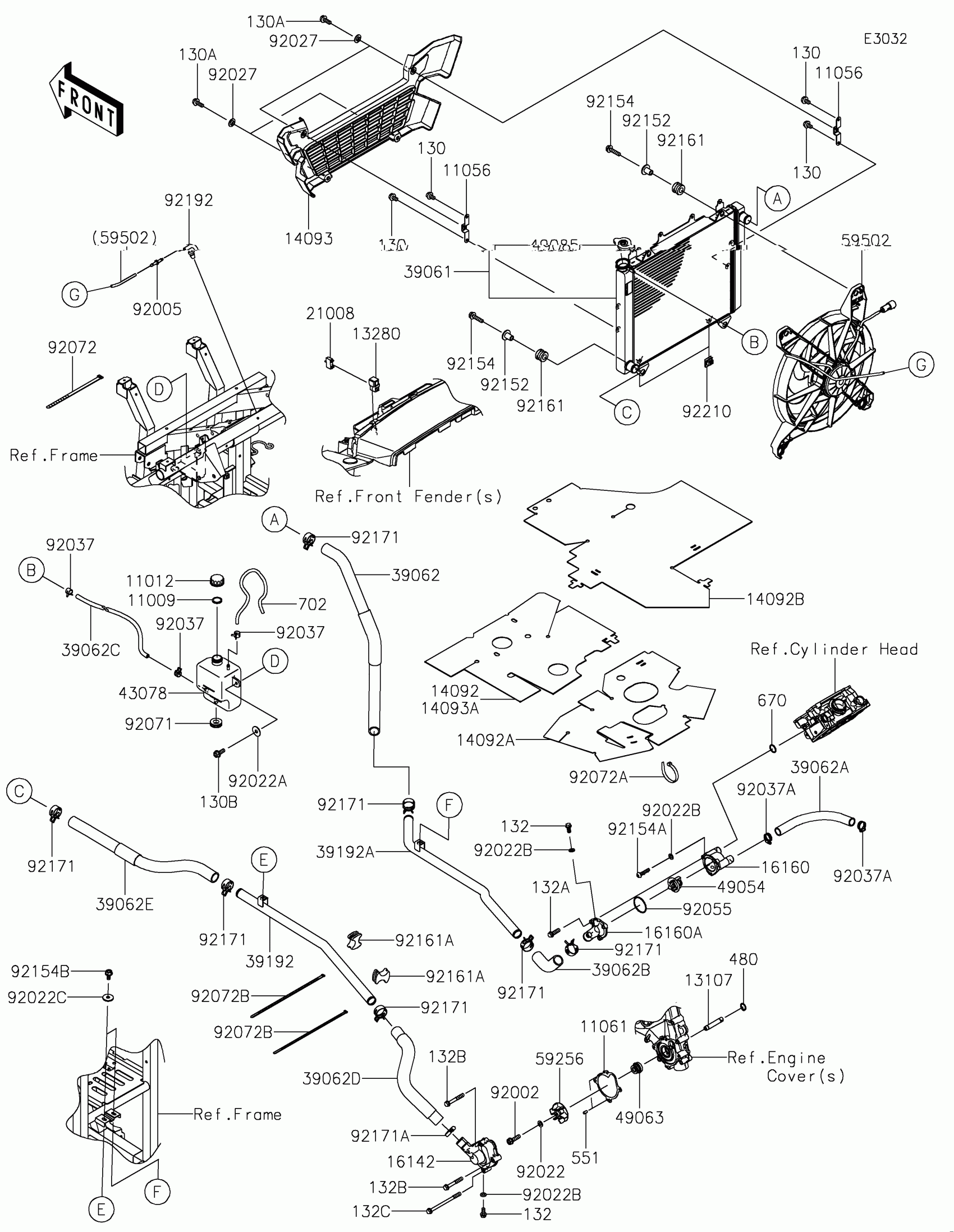

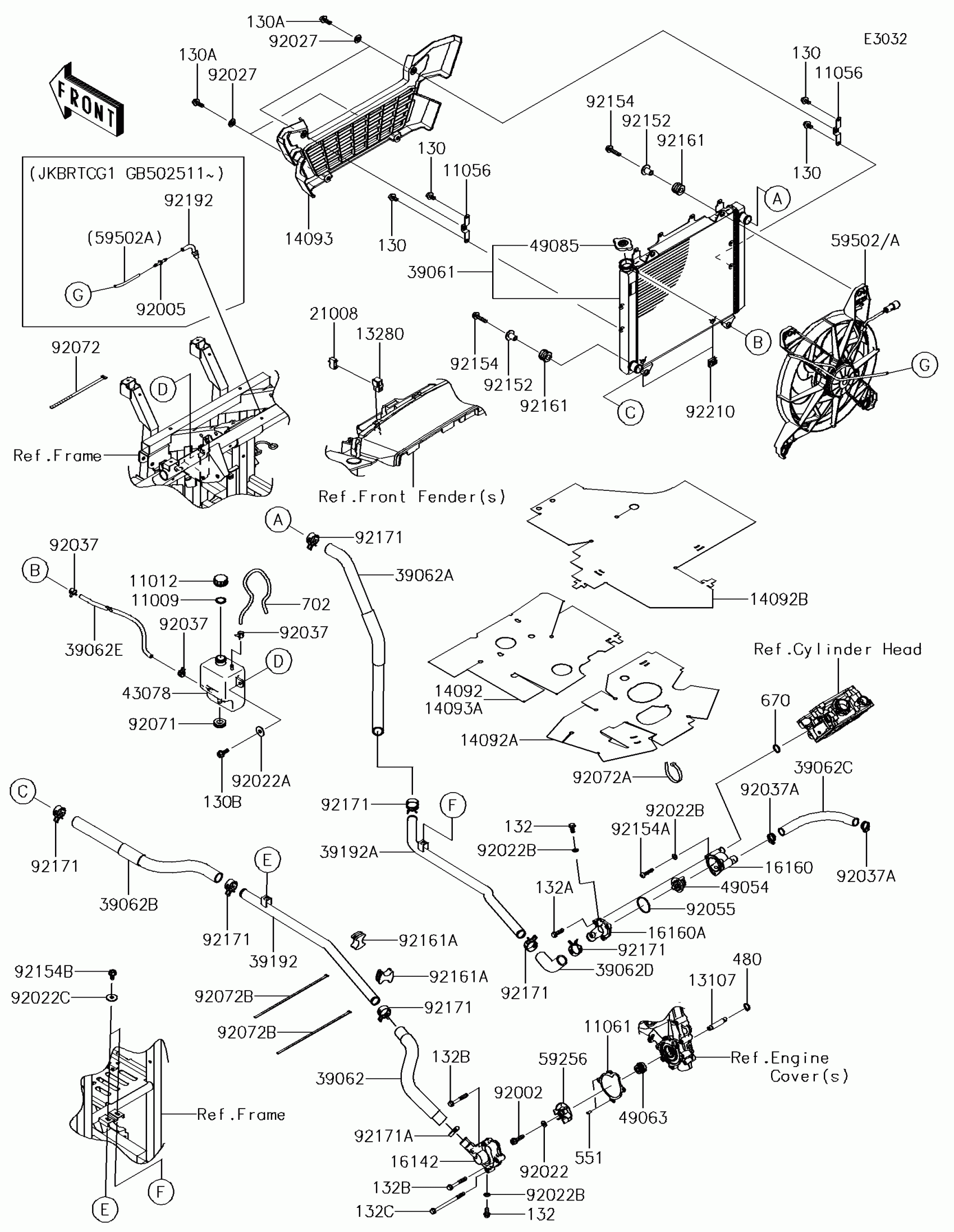

Kawasaki TERYX4™ LE Radiator Diagram
#
11009
GASKET,RESERVOIR TANK CAP
11009-1145
$1.42
11012
CAP
11012-1084
$1.72
11056
BRACKET
11056-7103
$10.17
11061
GASKET,WATER PUMP COVER
11061-0731
$9.09
13107
SHAFT,WATER PUMP
13107-0719
$21.58
13280
HOLDER,BREAKER
13280-0082
$5.60
14092A
COVER,HEAT GUARD,RR
14092-1061
$24.52
14092B
COVER,CHAMBER
14092-1142
$51.32
14093
COVER,RADIATOR
14093-0206
$31.72
16142
COVER-PUMP,WATER
16142-0743
$63.96
16160
BODY,THERMOSTAT,LWR
16160-0734
$80.02
16160A
BODY,THERMOSTAT,UPP
16160-0735
$67.23
21008
BREAKER,RAD. FAN,20A
21008-0554
$28.27
39061
RADIATOR-ASSY
39061-0568
$479.59
39062
HOSE-COOLING,WATER PUMP IN
39062-0580
$36.62
39062A
HOSE-COOLING,RADIATOR IN
39062-0619
$63.64
39062B
HOSE-COOLING,RADIATOR OUT
39062-0620
$42.62
39062C
HOSE-COOLING,RR HEAD-THERMO.
39062-0621
$14.26
39062D
HOSE-COOLING,THERMO OUT
39062-0669
$15.82
39062E
HOSE-COOLING,RESERVOIR-RAD.
39062-0698
$2.83
39192
PIPE-WATER,LH
39192-0569
$32.37
39192A
PIPE-WATER,RH
39192-0571
$40.60
43078
RESERVOIR
43078-0070
$39.23
49054
THERMOSTAT
49054-1055
$54.56
49063
SEAL-MECHANICAL
49063-1055
$20.06
49085
CAP-ASSY-PRESSURE
49085-0005
$45.60
59256
IMPELLER
59256-0555
$42.34
59502
FAN-ASSY
59502-0610
$386.90
92002
BOLT,6X22
92002-1154
$4.69
92005
FITTING
92005-0851
$2.24
92022
WASHER OIL PUMP BANJO
92022-077
$3.99
92022A
WASHER,PLAIN,6.5X20X1
92022-165
$3.74
92022B
WASHER,6.2X11X1
92022-304
$3.65
92022C
WASHER,6.2X20X2
92022-3714
$4.18
92027
COLLAR
92027-4020
$4.65
92037
CLAMP,TUBE
92037-1461
$3.88
92037A
CLAMP,COOLING HOSE
92037-1589
$18.57
92055
RING-O,44.7X2.4
92055-1279
$7.34
92071
GROMMET
92071-1115
$5.46
92072
BAND,L=218
92072-032
$5.00
92072A
BAND,L=250
92072-1237
$2.14
92072B
BAND,L=368.3
92072-3872
$1.59
92152
COLLAR
92152-1512
$8.56
92154
BOLT,FLANGED,6X25
92154-0707
$1.19
92154A
BOLT,SOCKET,6X25
92154-1142
$1.63
92154B
BOLT,FLANGED,6X12
92154-1195
$1.48
92161
DAMPER
92161-1349
$4.68
92161A
DAMPER,PIPE WATER
92161-1513
$3.51
92171
CLAMP,COOLING HOSE
92171-0060
$4.41
92171A
CLAMP
92171-0179
$8.20
92192
TUBE,BREATHER
92192-1703
$5.39
92210
NUT,CLIP,6MM
92210-0867
$2.75
130
BOLT-FLANGED,6X10
130BA0610
$1.20
130A
BOLT-FLANGED,6X14
130BA0614
$1.20
130B
BOLT-FLANGED,6X16
130BA0616
$1.20
132
BOLT-FLANGED-SMALL,6X12
132BA0612
$1.20
132A
BOLT-FLANGED-SMALL,6X20
132BA0620
$2.49
132B
BOLT-FLANGED-SMALL,6X40
132BA0640
$4.45
132C
BOLT-FLANGED-SMALL,6X80
132BA0680
$4.45
480
CIRCLIP-TYPE-C,12MM
480J1200
$0.62
551
PIN-DOWEL,4X8
551A0408
$0.78
670
O RING,20MM
670B2020
$1.22
702
TUBE-RUBBER,5X8X380
702A05380
$7.25
